Complete and intelligent rack package for EDGE-7 data center with usystem liquid ventilation
  • Complete and intelligent rack package for EDGE-7 data center with usystem liquid ventilation

Complete and intelligent rack package for EDGE-7 data center with usystem liquid ventilation

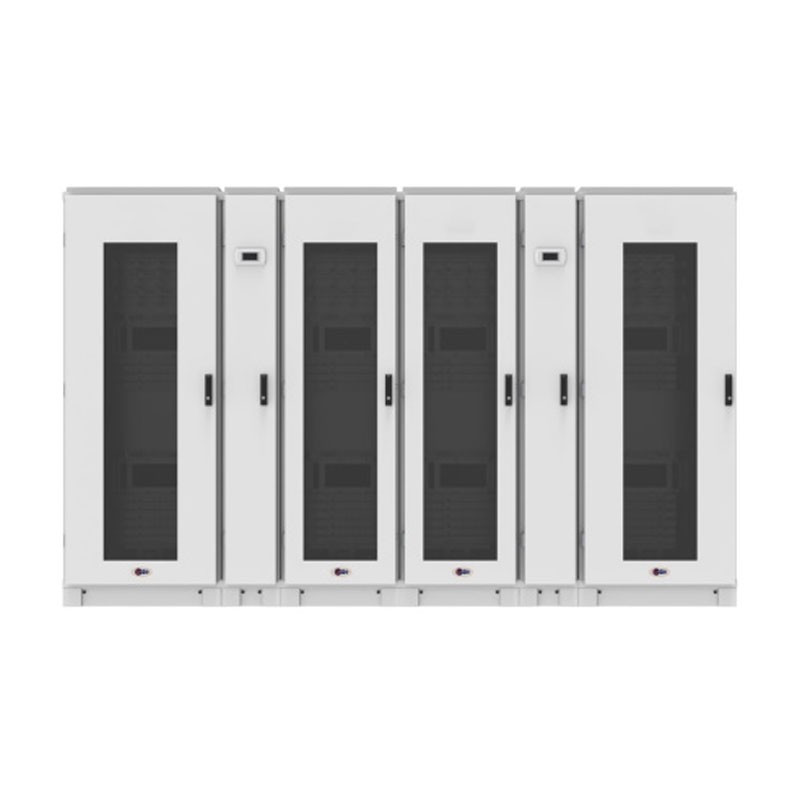

EDGE 7 in its most basic form comprises a cabinet plus an LX side cooling unit. The modular design allows you to deploy additional cooling units and cabinets when demand increases. The standard depth of 1400mm allows for the increase in new server depths, higher heat loads and extra space for cabling. It is a complete end to end solution – super energy efficient and quiet in operation, incorporating award winning ColdLogik cooling technology. Capable of cooling low, medium and high densities, meaning as your computing demands grow, so can this modular self contained solution.

Quantity

This combination is suitable for deployment in a variety of spaces such as offices, warehouses, outbuildings, stadium applications etc. and also delivers exceptional OPEX and CAPEX savings.

The EDGE-7 is a closed loop system, meaning expelled hot air from the IT equipment is pulled through a liquid cooled heat exchange matrix via a series of EC fans - resulting in a constant stream of cool air to the intake of the IT equipment.

The micro data centre temperature is maintained by the award winning ColdLogik management systems ‘CMS’, which is fully autonomous and once set requires no user input.

Capable of 70kW of sensible cooling per cabinet or as low 0.1kW, the EDGE-7 can provide a complete data center requirement all in one space and being a self-contained solution EDGE-7 can be deployed into any suitable space, be that in a warehouse, staffed offices, semi-open spaces such as stadiums or even remote site locations.

Cold air continuously flows on to the front of the IT equipment, which in turn heats, the air before being pulled through the heat exchanger matrix via a series of EC fans.

Rack - In Rack

Data sheet content

Rack-In rack-In room

5. Cooling capacity
70Kw
5. Depth
1200~1400 mm
5. Door status
Glass door 1.0mm , 1.2 & 2.0mm CR4 steel 4mm clear toughened glass
5. Dynamic load
1763lbs/800kg
5. Fan control
6 fans / Backward curved centrifugal fans Incorporating EC technology
5. Frame material
1.5mm CR4 steel
5. Monitoring function
Snmp , Modbus , Lan , EMS
5. Noise reduction
70dBA
5. Size of rack
42U , 48U
5. Static load
3307lbs/1500kg
5. Touch screen LCD
Yes
5. Width
31.5”/800mm , 23.62”/600mm

Specifications

Rack-In rack-In room

5. Cooling capacity 70Kw
5. Depth 1200~1400 mm
5. Door status Glass door 1.0mm, 1.2 & 2.0mm CR4 steel 4mm clear toughened glass
5. Dynamic load 1763lbs/800kg
5. Fan control 6 fans / Backward curved centrifugal fans Incorporating EC technology
5. Frame material 1.5mm CR4 steel
5. Monitoring function Snmp, Modbus, Lan, EMS
5. Noise reduction 70dBA
5. Size of rack 42U, 48U
5. Static load 3307lbs/1500kg
5. Touch screen LCD Yes
5. Width 31.5”/800mm, 23.62”/600mm
