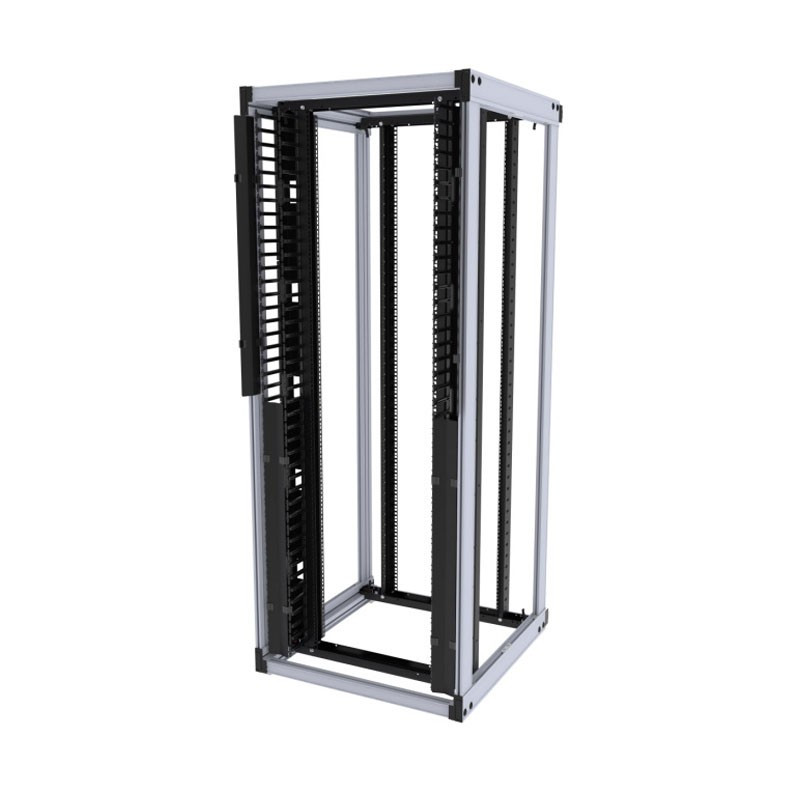

USpace 5210 premium rack
The USpace 5210 Datacentre Rack Solution is designed to meet the demands of ever increasing equipment densities while maintaining benefits in cabling access and ease of installation. The USpace 5210 enables reconfigurability and remediation, to grow and to change as the IT environment and your Data Centre needs evolve. Available in three heights two widths and two depths as standard. Standard 5210 racks include; Aluminium four post frame configuration, which is ideally suited to server applications (other configurations available). 1500kg Static load rating. Four infinitely adjustable step-less tool-less 19” mounting rails with depth markings. Rails with U markings numbered bottom to top.
Top panel cable entry brush strip front to rear. Vented mesh doors front and rear (80% free area mesh) with swing handles and 4 point locking. Quick release side panels (accessible only from inside rack). Earth bonding kit. Base Skids for easy movement on the datacentre raised floor.
Standard Configurations
Materials and finish
Frame Extruded aluminium
AirTech, mesh steel doors 1.0mm, 1.2 & 2.0mm CR4 steel
Side panels 1.0mm & 1.2mm CR4 steel
Top cover 1.2mm CR4 steel
Mounting angles 2.0mm CR4 steel
Infills for 800w 1.5mm CR4 steel
Rack
Data sheet content
Rack-In rack-In room
- 5. Depth
- 47.24”/1200mm , 39.37”/1000mm
- 5. Door status
- Standard flat mesh single (options V mesh door , Double mesh door)
- 5. Dynamic load
- 1654lbs/750kg , 3307lbs/1500kg
- 5. Frame material
- 1.2mm &1.5mm CR4 steel , Extruded aluminium
- 5. Size of rack
- 42U , 47U , 52U
- 5. Static load
- 3307lbs/1500kg
- 5. Width
- 31.5”/800mm , 23.62”/600mm
16 other products in the same category
Specifications
Rack-In rack-In room | |
|---|---|
| 5. Depth | 47.24”/1200mm, 39.37”/1000mm |
| 5. Door status | Standard flat mesh single (options V mesh door, Double mesh door) |
| 5. Dynamic load | 1654lbs/750kg, 3307lbs/1500kg |
| 5. Frame material | 1.2mm &1.5mm CR4 steel, Extruded aluminium |
| 5. Size of rack | 42U, 47U, 52U |
| 5. Static load | 3307lbs/1500kg |
| 5. Width | 31.5”/800mm, 23.62”/600mm |
The USpace 5210 Datacentre Rack Solution is designed to meet the demands of ever increasing equipment densities while maintaining benefits in cabling access and ease of installation. The USpace 5210 enables reconfigurability and remediation, to grow and to change as the IT environment and your Data Centre needs evolve. Available in three heights two widths and two depths as standard. Standard 5210 racks include; Aluminium four post frame configuration, which is ideally suited to server applications (other configurations available). 1500kg Static load rating. Four infinitely adjustable step-less tool-less 19” mounting rails with depth markings. Rails with U markings numbered bottom to top.
