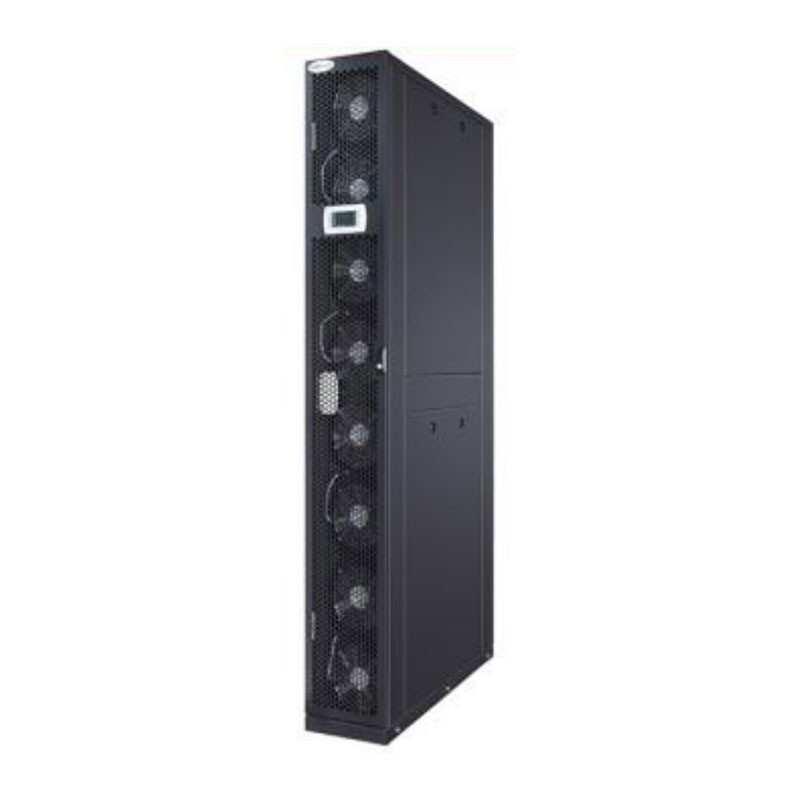

HAIRF R450C In Row 30kw data center air conditioning
$6,500.00
R450C is a data center air cooling system used to increase the efficiency and productivity of servers and IT equipment. Its cooling capacity is up to 30 kW. It has a main power supply with a voltage of 380 V and a frequency of 50 Hz. You can select the water inlet and outlet temperature from 7 to 12 °C to 15 to 20 °C. This model of air conditioning is of the blue In Row type (chiller), meaning it is placed inside the row of servers and transfers cool air to the servers directly. R450C air conditioning system is designed for use in high-power data centers. You can connect it to thermal management systems. It is also possible to use communication tools such as modbus and lan for optimal control and management under BMS in this system. Its advanced functionality has made it an excellent choice in data center projects.
Designed for large data center, medium server room cooling environment
Data center is an important infrastructure of the information age. With the demand of personal infor¬mation consumption, explosive improvement of enterprise informationization, the forming of cloud computing and virtualization technology, the scale of data center is more and more big, how to build on-demand expansion, efficient operation, safe and reliable data center has become an important challenge.
Ha irf R series in row air conditioner provides a comprehensive cooling solution for the new generation of data centers. It adopts the principle of close to machine design, short distance air supply form, matching cabinet cold isle method, which greatly solves the heat dissipation problem of high power and high density cabinet.
In Row
100 Items
Data sheet content
Inrow
- 4. Configuration type
- HAC
- 4. Cooling capacity
- 12~16 kw , 20~26 kw , 35~42 kw , 44~52 kw
- 4. Fan quantity
- 6
- 4. Humidity capacity
- 3 kg/h
- 4. Monitoring function
- Snmp , Modbus
- 4. Power consumption
- 380V 3Ph-50Hz
- 4. Power of Inrow
- 30kw
- 4. Type of Inrow
- Water
- 4. Water out
- 12℃ , 15℃ , 18℃ , 20℃
- 4. Water in
- 7℃ , 10℃ , 12℃ , 15℃
16 other products in the same category
Specifications
Inrow | |
|---|---|
| 4. Configuration type | HAC |
| 4. Cooling capacity | 12~16 kw, 20~26 kw, 35~42 kw, 44~52 kw |
| 4. Fan quantity | 6 |
| 4. Humidity capacity | 3 kg/h |
| 4. Monitoring function | Snmp, Modbus |
| 4. Power consumption | 380V 3Ph-50Hz |
| 4. Power of Inrow | 30kw |
| 4. Type of Inrow | Water |
| 4. Water out | 12℃, 15℃, 18℃, 20℃ |
| 4. Water in | 7℃, 10℃, 12℃, 15℃ |
R450C is a data center air cooling system used to increase the efficiency and productivity of servers and IT equipment. Its cooling capacity is up to 30 kW. It has a main power supply with a voltage of 380 V and a frequency of 50 Hz. You can select the water inlet and outlet temperature from 7 to 12 °C to 15 to 20 °C. This model of air conditioning is of the blue In Row type (chiller), meaning it is placed inside the row of servers and transfers cool air to the servers directly. R450C air conditioning system is designed for use in high-power data centers. You can connect it to thermal management systems. It is also possible to use communication tools such as modbus and lan for optimal control and management under BMS in this system. Its advanced functionality has made it an excellent choice in data center projects.
