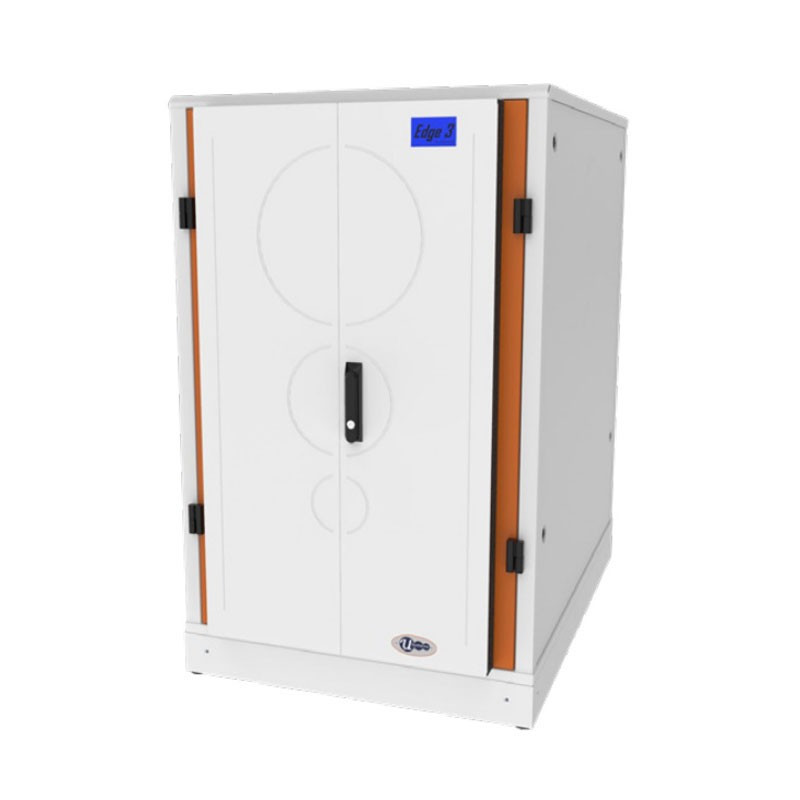

EDGE-3 data center complete rack package, air-cooled usystem, sound and heat insulation
  • EDGE-3 data center complete rack package, air-cooled usystem, sound and heat insulation

EDGE-3 data center complete rack package, air-cooled usystem, sound and heat insulation

Arguably the best all round performing air-cooled soundproof MDC in the world - the EDGE-3 replaces the need for a dedicated server room and only requires less than 1m² of valuable office/floor space, allowing localised on premise computing in populated or more sensitive locations - especially where there might be a concern of server noise being a distraction or breaching EEC working noise guidelines.

Capable of housing full depth high heat load servers the EDGE-3 is easy to deploy and simple to set-up and most importantly, the EDGE-3 incorporates the latest technology for real time environmental and security monitoring. The EDGE 3 effortlessly removes these issues and stylishly blends into the working environment. The 42U cabinet effectively removes up to 28.5dBA (99.9%) of IT noise, which is tech speak for saying that it will reduce server noise down to a whisper.

Quantity

Advanced configurations are available for enhanced levels of security and redundancy.

  • EDGE Management System EMS
  • Earth bonding kit
  • Fire retardant soundproofed server cabinet frame
  • Fully adjustable front and rear mounting angles, Finish Black (1)
  • Easily removable fire retardant soundproofed side panels (2)
  • Wardrobe style front and rear doors (3)
  • Energy efficient EC fans (4)
  • Fire retardant soundproof cable entry system (5)
  • 750kg load bearing castors, levelling feet and dynamic load brackets (6)
  • Three top and three bottom cable entry points accessible via removable gland plates (5)
  • Two pairs of depth support rails (7)
  • One foam cable entry block (Supplied loose) Option Upgrade: additional 5 allowed
  • Option upgrade — Fixed kick plinth (6)
  • Option upgrade — 300mm wide cable trays, Finish Black (8)
  • Option upgrade — Pair cable manager fingers (9)
  • Option upgrade — Wired Camera (10)

Technical Specifications

Accessories

Rack - In Rack

Data sheet content

Rack-In rack-In room

5. Cooling capacity
6.2~11.5
5. Cooling type
Air Cooled
5. Depth
1100~1400 mm
5. Door status
Up to 6 dry contacts
5. Dynamic load
750/1653 kg/lbs
5. Fan control
Up to 2 - 2 set fan curves and custom option
5. Fire protection
Fire retardant
5. Frame material
1.5mm CR4 steel
5. Monitoring function
On touch , Snmp
5. Noise reduction
28.5dBA
5. Size of rack
12U , 24U , 42U
5. Static load
750/1653 (on Castors) 1500/3307 (on Levelling Feet) kg/lbs
5. Temp - humidity control
Up to 4 sensors
5. Touch screen LCD
Yes
5. Width
780mm

16 other products in the same category

Specifications

Rack-In rack-In room

5. Cooling capacity 6.2~11.5
5. Cooling type Air Cooled
5. Depth 1100~1400 mm
5. Door status Up to 6 dry contacts
5. Dynamic load 750/1653 kg/lbs
5. Fan control Up to 2 - 2 set fan curves and custom option
5. Fire protection Fire retardant
5. Frame material 1.5mm CR4 steel
5. Monitoring function On touch, Snmp
5. Noise reduction 28.5dBA
5. Size of rack 12U, 24U, 42U
5. Static load 750/1653 (on Castors) 1500/3307 (on Levelling Feet) kg/lbs
5. Temp - humidity control Up to 4 sensors
5. Touch screen LCD Yes
5. Width 780mm
