Complete and intelligent rack package for EDGE-5 data center with usystem gas ventilation

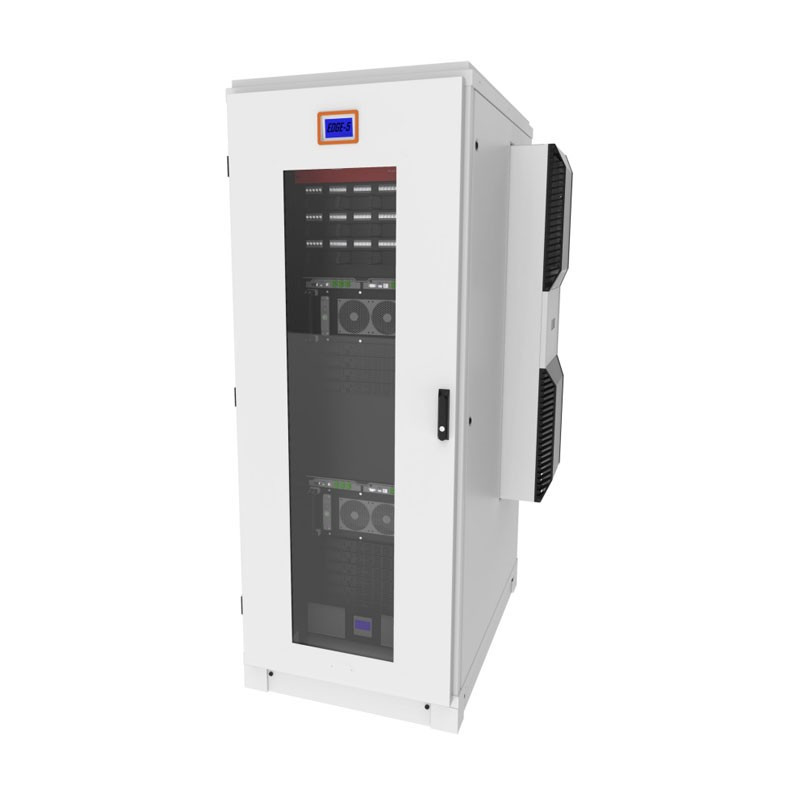

The EDGE range is fully factory configured to enable rapid deployment and has models to suit most applications and environments.One of these being the EDGE-5,specifically designed for housing localised computing and network equipment in a standalone cabinet in a dedicated room.It is a self-contained air-conditioned MDC which is therefore an ideal solution for projects requiring active cooling without the use of external plant. The 2.5kW air-conditioning system is inverter driven and will maintain the required internal cabinet temperature even when sited in a room ambient of 35°C/95°F.

Peace of mind is provided by an on board environmental and optional security monitoring system.Real time alarms and alerts which can be viewed via the WebUI will notify authorised personnel via email alarms relating to any issues with the cabinet. Meaning you know what’s going on and can monitor who’s coming and going24/7.Advanced configurations are available for enhanced levels of security and redundancy.

Quantity

The LCD touch display on the cabinet doors will change colour if the cabinet status changes, alerts (amber) or alarm (red). It will remain blue when working correctly. Touching the display will show environmental data from each temperature/humidity sensors or in the event of an alarm what that alarm specifically is.

Typical application spaces:

  • Un-staffed offices
  • IT/Comms rooms,
  • Stadiums
  • Warehouses
  • Factories

For safe running we recommend siting in a ventilated room up to 90°F/35°C

Features and benefits

Features and benefits cont.

Specification

Materials and finish

Frame

1.5mm CR4 steel

Glass door

1.0mm, 1.2 & 2.0mm CR4 steel 4mm clear toughened glass

Side panels and top cover

1.2mm CR4 steel

Mounting angles

2.0mm CR4 steel

Cooling

2.5kW slimline air conditioning unit

Intelligence

Edge Management System

Compliance statement: Manufactured to IEC 602973 and EIA STD 310 for panels and racks housing electronic equipment

How it works

The EDGE-5 provides a safe constant working temperature and will deal with a working load of between 500w to 2.5kW to protect and prolong the life of your IT equipment. The EDGE-5 is an ideal solution for reducing energy costs and keeping temperatures controlled inside the cabinet. The slimline air-conditioning unit will speed up and slow down as and when the heat load dictates, removing the need for unnecessary over use of the equipment

Rack - In Rack

Data sheet content

Rack-In rack-In room

5. Cooling capacity
500 W~2.55 kW
5. Cooling type
slimline air conditioning unit
5. Depth
47.24”/1200mm
5. Door status
Glass door 1.0mm , 1.2 & 2.0mm CR4 steel 4mm clear toughened glass
5. Dynamic load
1654lbs/750kg
5. Fire protection
FP Hybrid
5. Frame material
1.5mm CR4 steel
5. Monitoring function
Snmp , Modbus , Lan
5. Size of rack
42U , 36U
5. Static load
3307lbs/1500kg
5. Touch screen LCD
Yes
5. Width
31.5”/800mm

16 other products in the same category

Specifications

Rack-In rack-In room

5. Cooling capacity 500 W~2.55 kW
5. Cooling type slimline air conditioning unit
5. Depth 47.24”/1200mm
5. Door status Glass door 1.0mm, 1.2 & 2.0mm CR4 steel 4mm clear toughened glass
5. Dynamic load 1654lbs/750kg
5. Fire protection FP Hybrid
5. Frame material 1.5mm CR4 steel
5. Monitoring function Snmp, Modbus, Lan
5. Size of rack 42U, 36U
5. Static load 3307lbs/1500kg
5. Touch screen LCD Yes
5. Width 31.5”/800mm
