USpace 4210 premium rack
  • USpace 4210 premium rack

USpace 4210 premium rack

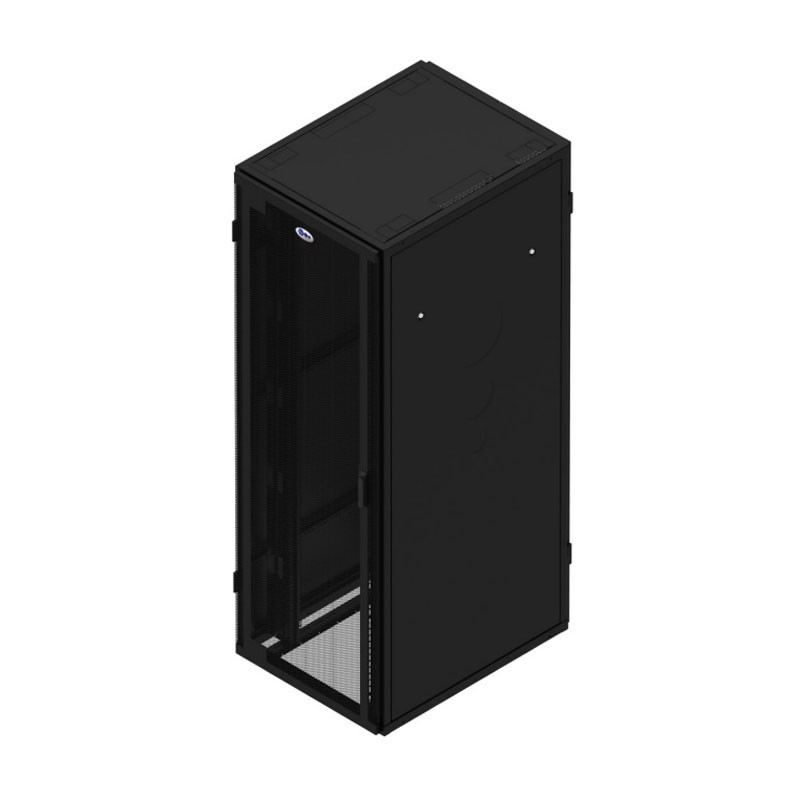

The USpace 4210 is a premium rack range from USystems. Smart design and state of the art manufacturing facilities guarantees unbeatable quality, style and innovation associated with USystems. Comprising of four corner posts, top and bottom end frame, depth support rails, front and rear 19” mounting angles, front infill panels (800w models), swing handle lockable front and rear door (available in a combination of options), lockable side panels (brush inserted or solid sliding panels are available options for bayed racks), vented top cover and a set of four transport castors.

Quantity

Standard 4210 racks include;

  • 3307.0lbs/1500kg load bearing
  • 1102.31lbs/500kg dynamic load rating*
  • 5 heights, 2 widths, 4 depths as standard
  • Rigid bolted construction
  • Superior venting standard door with 80% airflow
  • Superior venting ‘V’ door with 86% airflow option
  • Multi depth mounting
  • Multi cable access through top and base
  • Quick release cladding
  • Left or right hand hinged doors
  • Lockable side panels
  • ColdLogik compliant
  • Co-location models
  • Houses all major server brands

Standard 4210 rack door options;

  • AirTech vented V door (86% airflow)
  • AirTech vented standard door (80% airflow)
  • AirTech vented wardrobe door, suitable for narrow aisles and can also accommodate upgraded security locking.
  • Glass Door
  • Solid Steel Door

Materials and finish

Frame: 1.2mm &1.5mm CR4 steel

AirTech, glass and steel doors: 1.0mm, 1.2 & 2.0mm CR4 steel, 4.0mm toughened clear glass

Side panels: 1.0mm & 1.2mm CR4 steel

Top cover: 1.2mm CR4 steel

Mounting angles: 2.0mm CR4 steel

Infills for 800w: 1.5mm CR4 steel

Paint finish: Black RAL 9005 Polyester semi gloss powder coat as standard, Light Grey RAL 7035 on extended lead time

Rack

Data sheet content

Rack-In rack-In room

5. Depth
600~1200mm
5. Door status
AirTech vented V door (86% airflow) , AirTech vented standard door (80% airflow) , AirTech vented wardrobe door , Glass Door , Solid Steel Door
5. Dynamic load
1102.31lbs/500kg
5. Frame material
1.2mm &1.5mm CR4 steel
5. Size of rack
24U , 42U , 36U , 48U , 30U
5. Width
31.5”/800mm , 23.62”/600mm

16 other products in the same category

Specifications

Rack-In rack-In room

5. Depth 600~1200mm
5. Door status AirTech vented V door (86% airflow), AirTech vented standard door (80% airflow), AirTech vented wardrobe door, Glass Door, Solid Steel Door
5. Dynamic load 1102.31lbs/500kg
5. Frame material 1.2mm &1.5mm CR4 steel
5. Size of rack 24U, 42U, 36U, 48U, 30U
5. Width 31.5”/800mm, 23.62”/600mm
