NETIO PowerBOX 4Kx with LAN-enabled smart power strip with 4 outputs
  • NETIO PowerBOX 4Kx with LAN-enabled smart power strip with 4 outputs

NETIO PowerBOX 4Kx with LAN-enabled smart power strip with 4 outputs

$366.00

PowerBOX 4Kx is a LAN controlled power strip with 4 outputs. Each output can be switched off and on over the web, NETIO cloud service, or with a mobile app. Open API enables integration into 3rd party systems using a wide range of protocols (http JSON, Modbus/TCP, SNMP, MQTT, Telnet, ...). Power consumption (A, W, kWh, TPF, V, Hz) is measured on each power output separately with high precision. Each of four power sockets can be independently controlled from the product web interface (switched on/off or power-cycled). To switch the outputs on in a sequence, a power-up delay interval can be configured for each output.

Quantity

Electrical parameters are measured with high accuracy at each output individually (A, W, kWh, TPF, V, Hz).

The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud.

NETIO Cloud is a SSL-secured service for controlling multiple devices from anywhere (1 screen for controlling 100 outputs).

Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).

The Scheduler function switches outputs on and off at configured times. It works locally, even without Internet connection.

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.

  • 4x output (electrical socket)
  • Each output can be switched on and off individually
  • Electrical measurements (A, W, kWh, TPF, V, Hz)
  • Open API (10 protocols)
  • ZCS – Zero Current Switching
  • Service: NETIO Cloud
  • Mobile App: NETIO Mobile2

FEATURES

  • 4x output (electrical socket)
  • Each output can be switched on / off individually

Methods of controlling each output:

  • WEB browser
  • Mobile App (NETIO Mobile 2)
  • Open API (10 protocols)
  • NETIO Cloud

SPECIFICATIONS

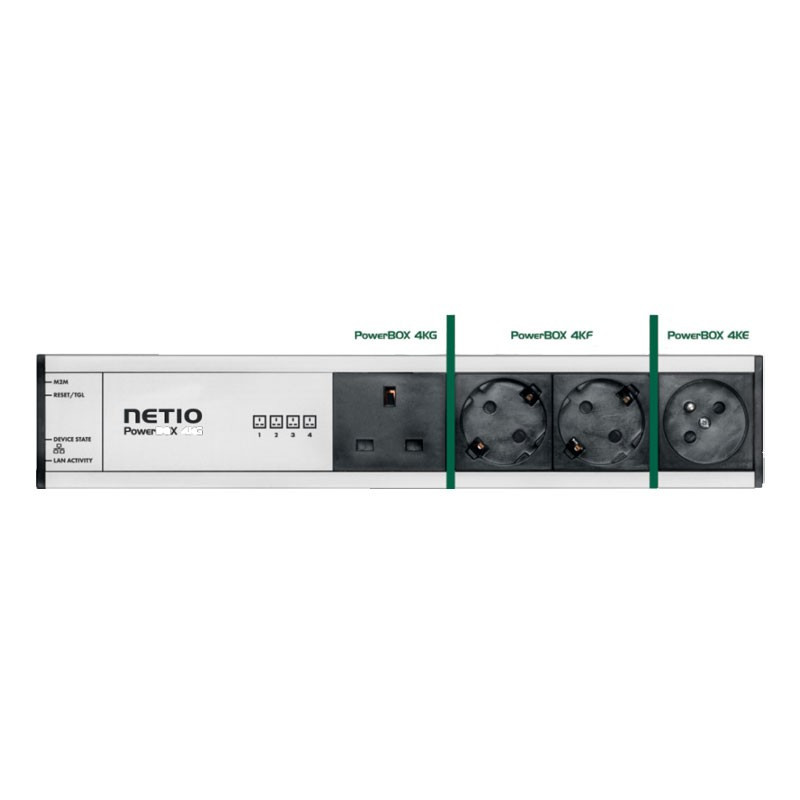

4Kx PRODUCT MODELS

PowerBOX 4KF:

4x el . socket Type F (Schuko)/230V/Max 16A (per output)

PowerBOX 4KE:

4x el . socket Type E (FR)/230V/Max 16A (per output)

PowerBOX 4KG:

4x el . socket Type G (UK)/230V/Max 13A (per output)

POWER

  • Power input: Electrical plug + 1.6m cable
  • Power output: 4x electrical socket
  • Each output: On/Off (SPST-NO relay, IOC)
  • ZCS (Zero Current Switching): Yes
  • Internal consumption: 1-2 W
PDU
100 Items

Data sheet content

PDU

3. Electrical load
ZCS (Zero Current Switching)
3. Fuse
Integrated , non-resettable
3. Internal consumption
Max 2W
3. Maximum line breaker capacity
C16A
3. Network interfaces
1x Ethernet RJ-45 10/100 Mbit/s
3. Power
100-240 V; 50/60 Hz; 16 A
3. Power Output relays
Micro-disconnection (µ) (resistive load) , SPST-NO 1E5 switching cycles , max. 1.5 kV pulse voltage Switch heat and fire resistance class 1
3. Surge protection
Type 3 (CAT III)
3. Switched outputs
16 A in total / 16 A each output

16 other products in the same category

Specifications

PDU

3. Electrical load ZCS (Zero Current Switching)
3. Fuse Integrated, non-resettable
3. Internal consumption Max 2W
3. Maximum line breaker capacity C16A
3. Network interfaces 1x Ethernet RJ-45 10/100 Mbit/s
3. Power 100-240 V; 50/60 Hz; 16 A
3. Power Output relays Micro-disconnection (µ) (resistive load), SPST-NO 1E5 switching cycles, max. 1.5 kV pulse voltage Switch heat and fire resistance class 1
3. Surge protection Type 3 (CAT III)
3. Switched outputs 16 A in total / 16 A each output
