X-ray baggage scanner HOU-XB5010
  • X-ray baggage scanner HOU-XB5010

X-ray baggage scanner HOU-XB5010

$27,040.00

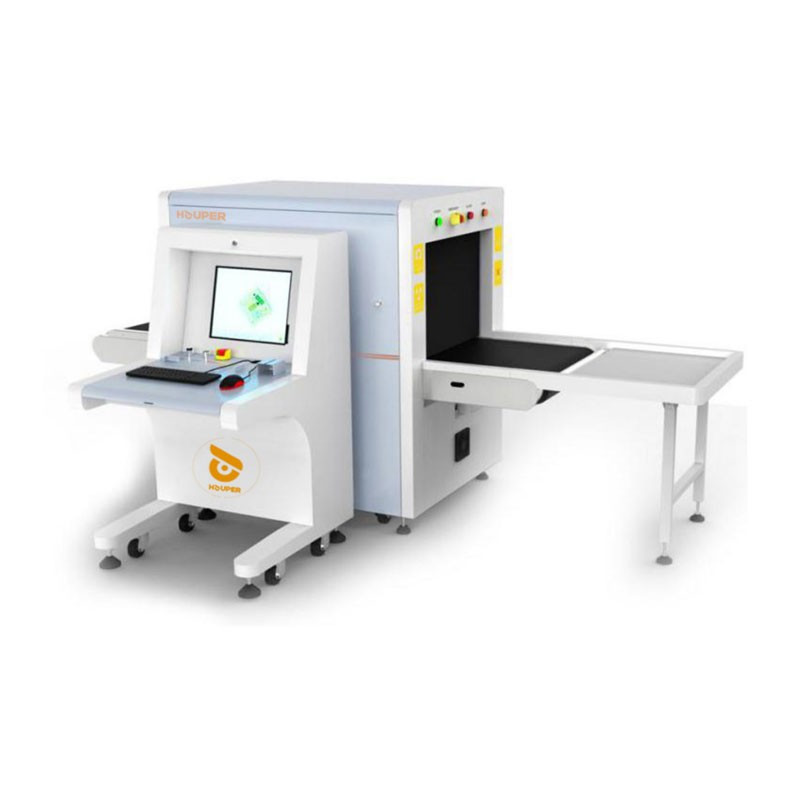

Houper X-ray baggage scanner, part number HOU-XB5010 is used in public places, especially in airports, train stations and hospitals, in order to maintain security, and prevent dangerous objects to be carried into such places. Houper X-ray baggage scanner is equipped with double energy technology, which means it can benefit from two different energy levels the simultaneously to detect objects inside luggage and equipment. Using this technology, it can analyze materials with high accuracy, and detect prohibited objects, weapons, explosives and other dangerous substances. It also has a 17-inch screen that allows the operator to carefully review images and identify suspicious objects. It has Mage Archive technology, to manage and store X-ray images.

Quantity

In addition, using X-rays, it can detect and show the hidden layers inside the bag. Using advanced imaging algorithms and techniques, Houper X-ray baggage scanner detects blind spots in the image and remove them.

Features

  • Economic model
  • Double energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 Items

Data sheet content

X RAY-Metal Detection

Tunnel size
650mm(L)*500mm(W)
Conveyor Speed
0.20 (±10%)
Generator
140-160KV , oil cooling , from bottom to top
X-Ray dosage /inspection
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer , 17" LED screen , resolution 1280*1024
Operation Power
220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
Image Archive
At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).
Operation table
Single screen console

16 other products in the same category

Specifications

X RAY-Metal Detection

Tunnel size 650mm(L)*500mm(W)
Conveyor Speed 0.20 (±10%)
Generator 140-160KV, oil cooling, from bottom to top
X-Ray dosage /inspection Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Boundary Leakage Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer CPU: Cortex A9
Display monitor Dell or Acer, 17" LED screen, resolution 1280*1024
Operation Power 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional)
Image Archive At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System LINUX
Image Enhancement 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operation table Single screen console
