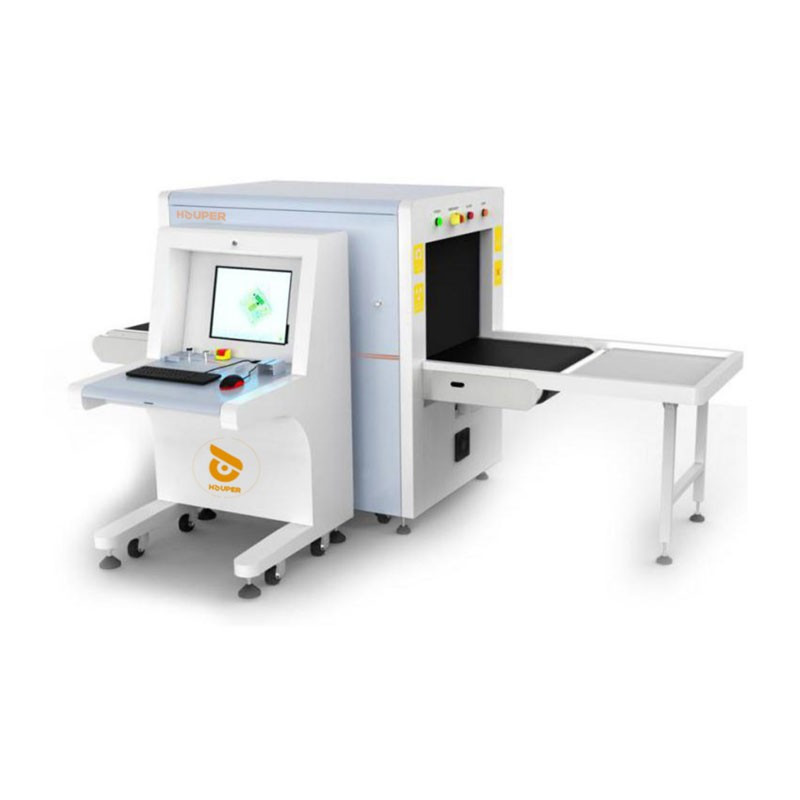

X-ray baqaj skaneri HOU-XB5010
Houper X-ray baggage scanner, part number HOU-XB5010 is used in public places, especially in airports, train stations and hospitals, in order to maintain security, and prevent dangerous objects to be carried into such places. Houper X-ray baggage scanner is equipped with double energy technology, which means it can benefit from two different energy levels the simultaneously to detect objects inside luggage and equipment. Using this technology, it can analyze materials with high accuracy, and detect prohibited objects, weapons, explosives and other dangerous substances. It also has a 17-inch screen that allows the operator to carefully review images and identify suspicious objects. It has Mage Archive technology, to manage and store X-ray images.
In addition, using X-rays, it can detect and show the hidden layers inside the bag. Using advanced imaging algorithms and techniques, Houper X-ray baggage scanner detects blind spots in the image and remove them.
Features
- Economic model
- Double energy
- Built-in ARM CPU
- Energy saving design
- MTBF: More than 10000 hours
- With Digital Signal and Processor
X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment
Data sheet content
X RAY-Metal Detection
- Tunnel size
- 650mm(L)*500mm(W)
- Conveyor Speed
- 0.20 (±10%)
- Generator
- 140-160KV , oil cooling , from bottom to top
- X-Ray dosage /inspection
- Typical 1.0 μGy/h , guarantee 1.5 μGy/h
- Boundary Leakage
- Typical 1.0 μGy/h , guarantee 1.5 μGy/h
- Computer
- CPU: Cortex A9
- Display monitor
- Dell or Acer , 17" LED screen , resolution 1280*1024
- Operation table
- 220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
- Image Archive
- At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
- Operation System
- LINUX
- Image Enhancement
- 1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
- Network Applications
- Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).
- Operation table
- Single screen console
16 other products in the same category
HOU-MDT836101 Portativ metal detektoru
X-ray baqaj skaneri HOU-XB5022
X-ray baqaj skaneri HOU-XB5021
X-ray baqaj skaneri HOU-XB5020
HOU-MDT836103-4 metal detektoru
Specifications
X RAY-Metal Detection | |
---|---|
Tunnel size | 650mm(L)*500mm(W) |
Conveyor Speed | 0.20 (±10%) |
Generator | 140-160KV, oil cooling, from bottom to top |
X-Ray dosage /inspection | Typical 1.0 μGy/h, guarantee 1.5 μGy/h |
Boundary Leakage | Typical 1.0 μGy/h, guarantee 1.5 μGy/h |
Computer | CPU: Cortex A9 |
Display monitor | Dell or Acer, 17" LED screen, resolution 1280*1024 |
Operation table | 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional) |
Image Archive | At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats. |
Operation System | LINUX |
Image Enhancement | 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc. |
Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional). |
Operation table | Single screen console |
