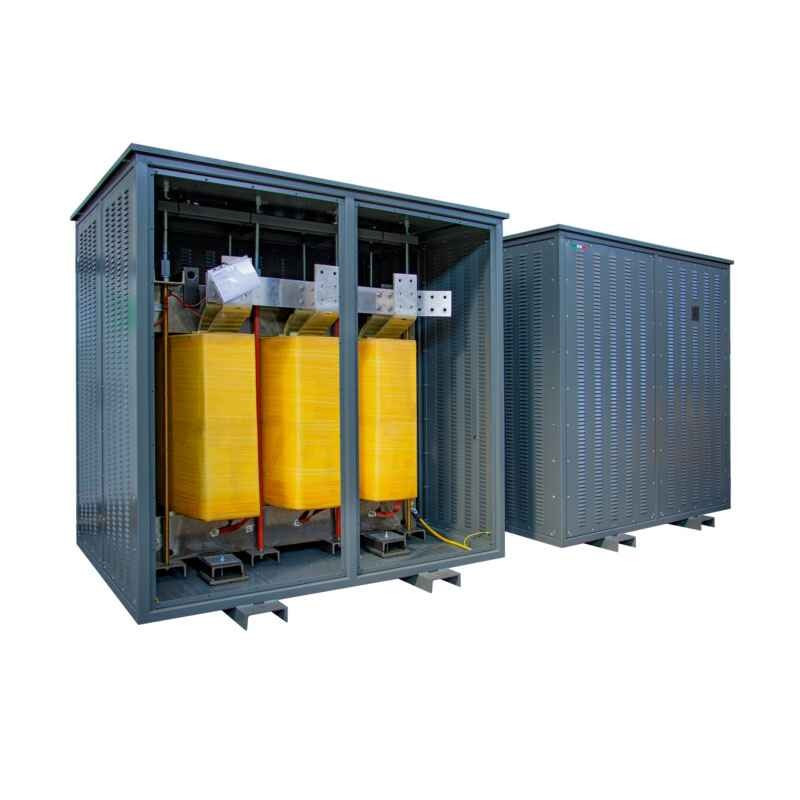

Isolation 580KVA transformer Ortea model DZN0 K20 Copper IP21
$19,968.00
This isolation transformer from the Italian brand Ortea has a capacity of 580KVA and operates at a frequency of 50 Hz, with both input and output voltages of 400 V and is made of copper. This isolation transformer is recognized as one of the key components in industries and data centers. It is used to isolate electrical systems from each other and to reduce the risks associated with voltage fluctuations and electrical hazards. In data centers, proper isolation can help maintain data security and prevent damage to sensitive equipment. Additionally, this transformer enhances the quality of electrical signals by reducing electrical noise and vibrations, which in turn helps improve the efficiency of cooling systems and other equipment.
In industrial settings, isolation transformers help prevent damage to machinery and improve the reliability of systems, especially in hazardous or industrial environments where voltage fluctuations are common. Thus, the use of these transformers not only increases safety but also contributes to the optimization of overall system performance.
Power rating : 580 kVA
Primary voltage : 3PH 400V
Secondary voltage: 3PH 400V no load
Frequency : 50Hz
Core losses : 2672 W
Shortcircuit losses : 4630 Wcc @115°C
Vector group : Dzn0
K-factor : K20
Winding material : AL - Class H
Ambient temperature : 40 degrees Celsius
Altitude from sea level : 2000 meters max.
Cooling Type: AN
Efficiency : 98,76%
Dimensions : mm 1400x1200x1550h
Net weight : kg 2050 approx.
Protection degree : IP21
Installation : INDOOR
Isolation transformer
