System 7001(RC)-GPS time server

$0.00

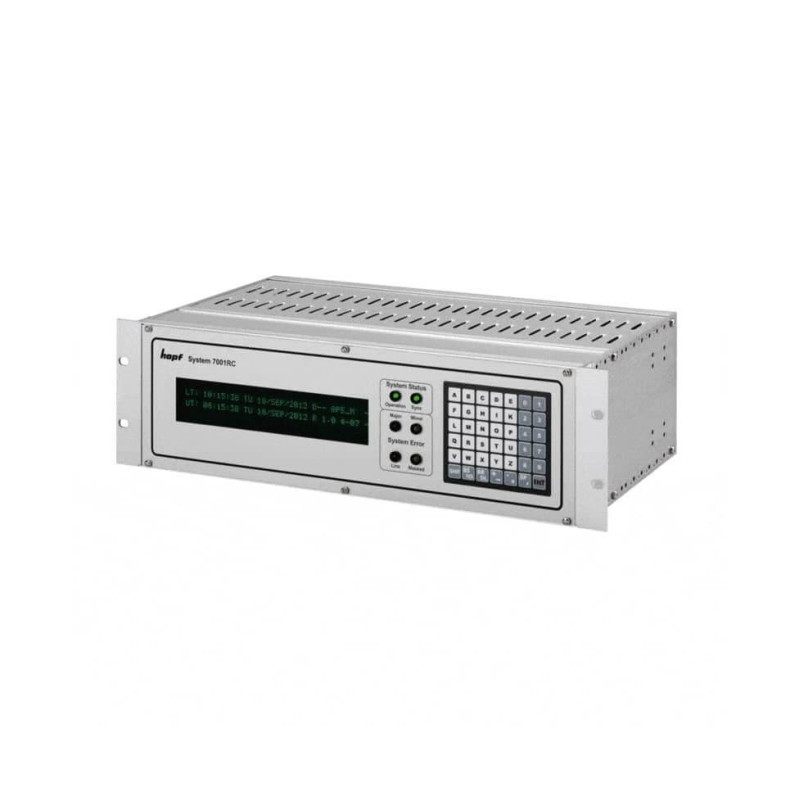

System 7001(RC)-GPS is a modular system with integrated GPS receiver. German Hopf master clocks 7001 are produced in the dimensions of 3 rack mount units. The device has a complete display and keyboard. The GPS-based system 7001(RC) is equipped with functional boards to output the required signals according to the customer's needs. The number of possible functional boards to integrate and upgrade is primarily determined by the number of slots available in the 19-inch rack and the capacity of the power supply. However, there are a maximum of 14 expandable slots, in which many different protocols and outputs can be embedded.

Quantity

Configurator



Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next







next







next


Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt
Relay outputs Board
Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next







next











next


Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

finish

components list


IRIG-B expansion board
Not selected
DCF77 function
Not selected
Protocol function
Not selected
In-out function
Not selected
Crystal function
Not selected
GPS-GNSS function
Not selected
Power supply function
Not selected
Must-have accessories
Not selected
Discount: $
Product with this customization

$0.00

x
You must fill all the customization options before to make the order

Clock System 7001(RC)

System 7001(RC)-GPS is a modular system with integrated GPS receiver.

Basically it consists of the following components:

  • GPS radio controlled base system 7001(RC)-GPS consisting of
  • 19" rack (3U/84HP) for mounting into cabinets
  • Clock board 7020RC-GPS with GPS receiver
  • Display and keypad
  • Power supply
  • Max. 15 slots (3U/4HP) for implementation of function boards
  • Prepared extension slot for LAN Management Board 7052RC

The base system 7001(RC)-GPS is equipped with function boards for the output of required signals according to the provided customer specifications. The possible number of functions boards to be integrated and upgraded is primarily determined by the number of available slots in 19" rack and the power supply capacity.

System 7001(RC)-DCF is a modular system with integrated DCF77 receiver board.

Basically it consists of the following components:

  • DCF77 radio controlled base system 7001(RC)-DCF consisting of
  • 19" rack (3U/84HP) for mounting into cabinets
  • Clock board 7020RC and DCF77 receiver board
  • Display and keypad
  • Power supply
  • Max. 14 slots (3U/4HP) for implementation of function boards
  • Prepared extension slot for LAN Management Board 7052RC

NTP Stratum 1 Time Server

By implementation of NTP LAN Board(s) 7273(RC) or NTP LAN Board(s) 7274(RC) System 7001(RC) becomes a highly accurate NTP Stratum 1 Time Server for synchronization of computers and industrial networks.

time server
100 Items

Data sheet content

Time server

Type of time server
GPS
Power supplies
110VDC (60 – 160VDC) , 85 – 264VAC (50Hz / 60Hz) , 125 – 250VDC
power supplies feature
redundant power inputs for connection of two power sources
Extension slots
Over 10 extension slots
Time Server Protocol
(NTP / SNTP) , IRIG-B , DCF77 , PPS , PPM , PPH , fiber-optic signal output
Installation Method
3U-Version
components type
hot-plug , Normal - without hot-plug

Specifications

Time server

Type of time server GPS
Power supplies 110VDC (60 – 160VDC), 85 – 264VAC (50Hz / 60Hz), 125 – 250VDC
power supplies feature redundant power inputs for connection of two power sources
Extension slots Over 10 extension slots
Time Server Protocol (NTP / SNTP), IRIG-B, DCF77, PPS, PPM, PPH, fiber-optic signal output
Installation Method 3U-Version
components type hot-plug, Normal - without hot-plug
