النظام 7001(RC)-خادم الوقت GPS

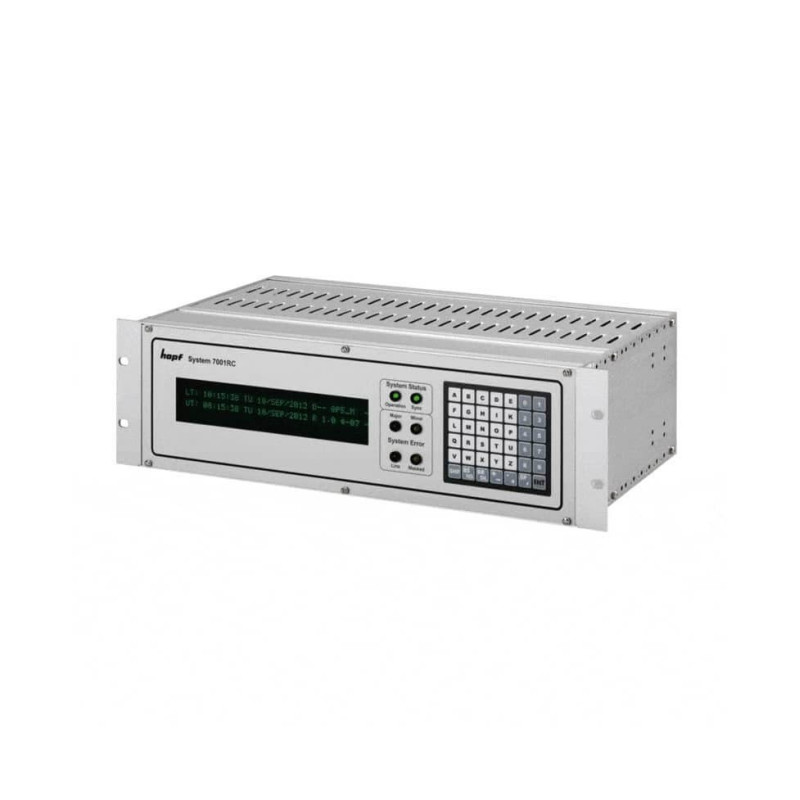

Clock System 7001(RC)

System 7001(RC)-GPS is a modular system with integrated GPS receiver.

Basically it consists of the following components:

• GPS radio controlled base system 7001(RC)-GPS consisting of
• 19" rack (3U/84HP) for mounting into cabinets
• Clock board 7020RC-GPS with GPS receiver
• Display and keypad
• Power supply
• Max. 15 slots (3U/4HP) for implementation of function boards
• Prepared extension slot for LAN Management Board 7052RC

The base system 7001(RC)-GPS is equipped with function boards for the output of required signals according to the provided customer specifications. The possible number of functions boards to be integrated and upgraded is primarily determined by the number of available slots in 19" rack and the power supply capacity.

System 7001(RC)-DCF is a modular system with integrated DCF77 receiver board.

Basically it consists of the following components:

• DCF77 radio controlled base system 7001(RC)-DCF consisting of
• 19" rack (3U/84HP) for mounting into cabinets
• Clock board 7020RC and DCF77 receiver board
• Display and keypad
• Power supply
• Max. 14 slots (3U/4HP) for implementation of function boards
• Prepared extension slot for LAN Management Board 7052RC

NTP Stratum 1 Time Server

By implementation of NTP LAN Board(s) 7273(RC) or NTP LAN Board(s) 7274(RC) System 7001(RC) becomes a highly accurate NTP Stratum 1 Time Server for synchronization of computers and industrial networks.
