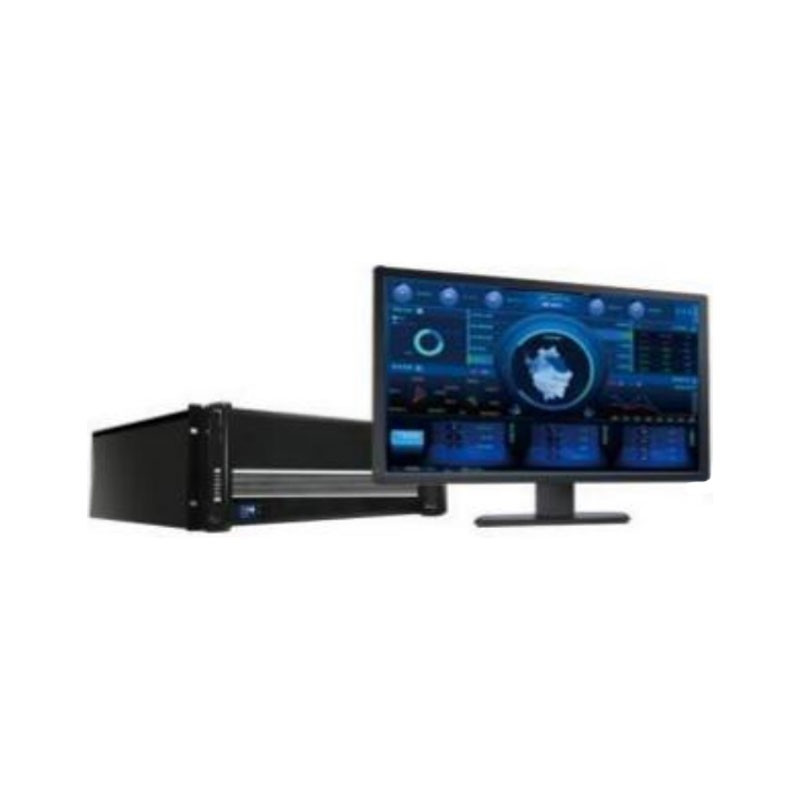

Intrusion monitoring system in railways and transmission lines of 100 km
  • Intrusion monitoring system in railways and transmission lines of 100 km

Intrusion monitoring system in railways and transmission lines of 100 km

$223,340.00

The optical fiber perimeter security area protection monitoring system is mainly composed of optical fiber perimeter security monitoring host and detection optical fiber cable.Optical fiber perimeter security monitoring host can play the role of perimeter protection monitoring by laying a core of optical fiber cable in the outer protection area of railway fence.That is, when someone or an animal walks back and forth in the perimeter protection zone, it will trigger the optical fiber perimeter security exclusion zone protection monitoring system and give an alarm.

Quantity

Both the railway side should use total 200Km optical fiber.

lines
100 Items

Data sheet content

Intrusion monitoring system

2. Alarm Judgment
climb invasion , Across invasion , fiber broken
2. Channel Numbers
1
2. Positional Accurac
±5m
2. Power
AC220V±10％ 47~63HZ
2. Power Consumption
50w
2. Sample Interval
0.8m
2. Scanning Time
0.2s
2. Technology
Optical Fiber Core , Optical Fiber Cable
2. Usable environments
Rail and subway and monorail , pipelines , military areas , mines , urban use , museums , airports , factories
2. Working Distance
40Km
2.MTBF
3 years ~ 5 years

14 other products in the same category

Specifications

Intrusion monitoring system

2. Alarm Judgment climb invasion, Across invasion, fiber broken
2. Channel Numbers 1
2. Positional Accurac ±5m
2. Power AC220V±10％ 47~63HZ
2. Power Consumption 50w
2. Sample Interval 0.8m
2. Scanning Time 0.2s
2. Technology Optical Fiber Core, Optical Fiber Cable
2. Usable environments Rail and subway and monorail, pipelines, military areas, mines, urban use, museums, airports, factories
2. Working Distance 40Km
2.MTBF 3 years ~ 5 years
