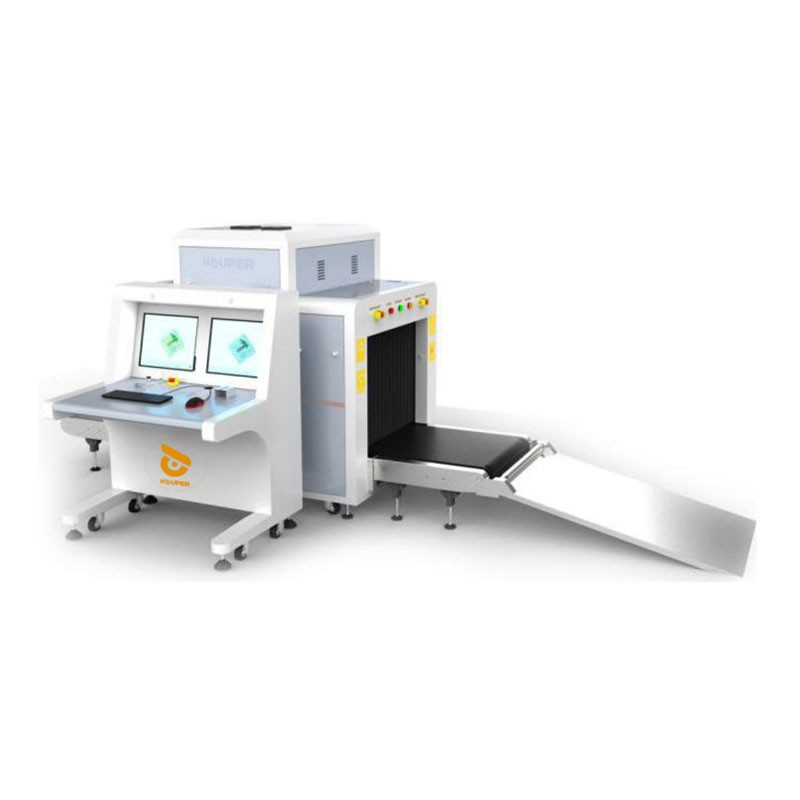

X-ray baggage scanner HOU-XB5022
  • X-ray baggage scanner HOU-XB5022

X-ray baggage scanner HOU-XB5022

$43,865.00

Houper X-ray baggage scanner, part number HOU-XB5022, is used in public places, especially in airports, train stations and hospitals, in order to provide security, and prevent dangerous objects to be carried into such places. It has a parameter that includes a set of various measures and technologies to reduce energy consumption during the operation. It also has dual energy capability; one of the X-ray sources with lower energy is used for imaging rigid objects such as metals, while the other source with higher energy is used for imaging soft and non-metallic objects. Using advanced algorithms and filters, it improves scanned images by automatic enhancement of dim and low-definition details. One of its features is the ability to save images for future use.

Quantity

It has the capability of fault diagnosis to identify hardware and software errors. In addition, it can remove blind spots or points that may remain hidden during the scanning process.

Features

  • Economic model
  • Double energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 Items

Data sheet content

X RAY-Metal Detection

Tunnel size
1000mm(L)*800mm(W)
Conveyor Speed
0.20 (±10%)
Generator
140-160KV , oil cooling , from bottom to top
X-Ray dosage /inspection
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer , 17" LED screen , resolution 1280*1024
Operation Power
220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
Image Archive
At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).
Operation table
Single screen console

Specifications

X RAY-Metal Detection

Tunnel size 1000mm(L)*800mm(W)
Conveyor Speed 0.20 (±10%)
Generator 140-160KV, oil cooling, from bottom to top
X-Ray dosage /inspection Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Boundary Leakage Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer CPU: Cortex A9
Display monitor Dell or Acer, 17" LED screen, resolution 1280*1024
Operation Power 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional)
Image Archive At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System LINUX
Image Enhancement 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operation table Single screen console
