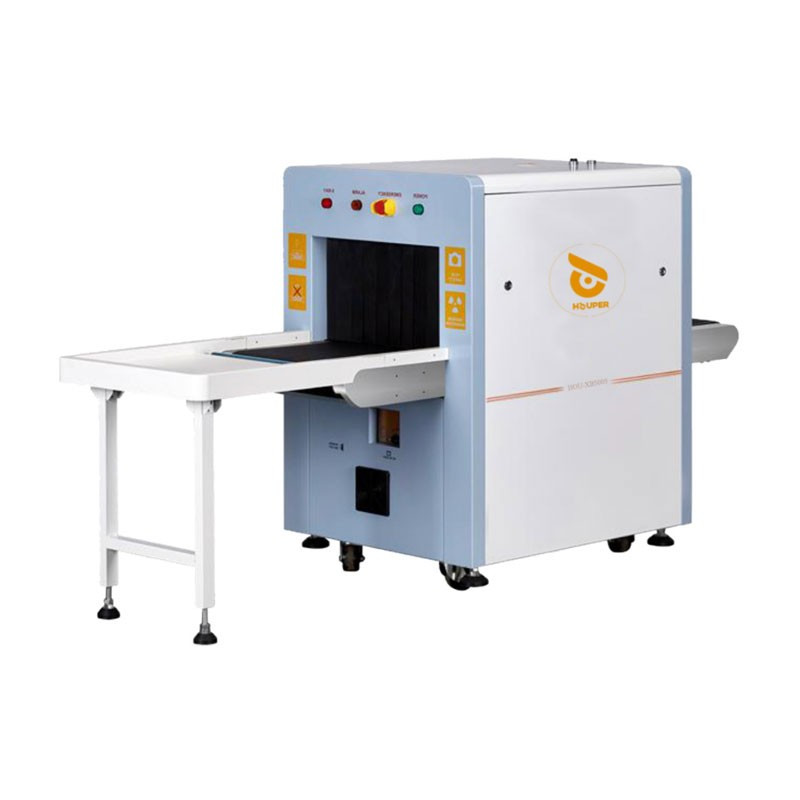

X-ray baggage scanner HOU-XB5005
  • X-ray baggage scanner HOU-XB5005

X-ray baggage scanner HOU-XB5005

$22,815.00

Houper X-ray baggage scanner, part number HOU-XB5005, is used in public places, especially in airports, train stations and hospitals, in order to maintain security, and prevent dangerous objects from carrying to such places. X-ray baggage scanner is equipped with double energy capability, meaning it benefits from two different energy sources in the x-ray scanning system technology. In this technology, two sources of energy with different spectra of X-rays are used. The energy sources usually include low-energy X-rays and high-energy X-rays. In addition, using a digital signal, it converts the information received from the X-ray to a digital signal. Then, analyzes the signals using a processor.

Quantity

It is also equipped with Striping technology, by which it checks different layers of packaging and the contents of the bag or suitcase using X-ray technology. In this device, blind spots are identified and removed using complex algorithms and advanced technologies. Its algorithms can detect blind spots and remove them from the final image automatically and with high accuracy.

Features

  • Economic model
  • Double energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 Items

Data sheet content

X RAY-Metal Detection

Tunnel size
500mm(L)*300mm(W)
Conveyor Speed
0.20 (±10%)
Generator
140-160KV , oil cooling , from bottom to top
X-Ray dosage /inspection
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer , 17" LED screen , resolution 1280*1024
Operation Power
220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
Image Archive
At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).

16 other products in the same category

Specifications

X RAY-Metal Detection

Tunnel size 500mm(L)*300mm(W)
Conveyor Speed 0.20 (±10%)
Generator 140-160KV, oil cooling, from bottom to top
X-Ray dosage /inspection Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Boundary Leakage Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer CPU: Cortex A9
Display monitor Dell or Acer, 17" LED screen, resolution 1280*1024
Operation Power 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional)
Image Archive At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System LINUX
Image Enhancement 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
