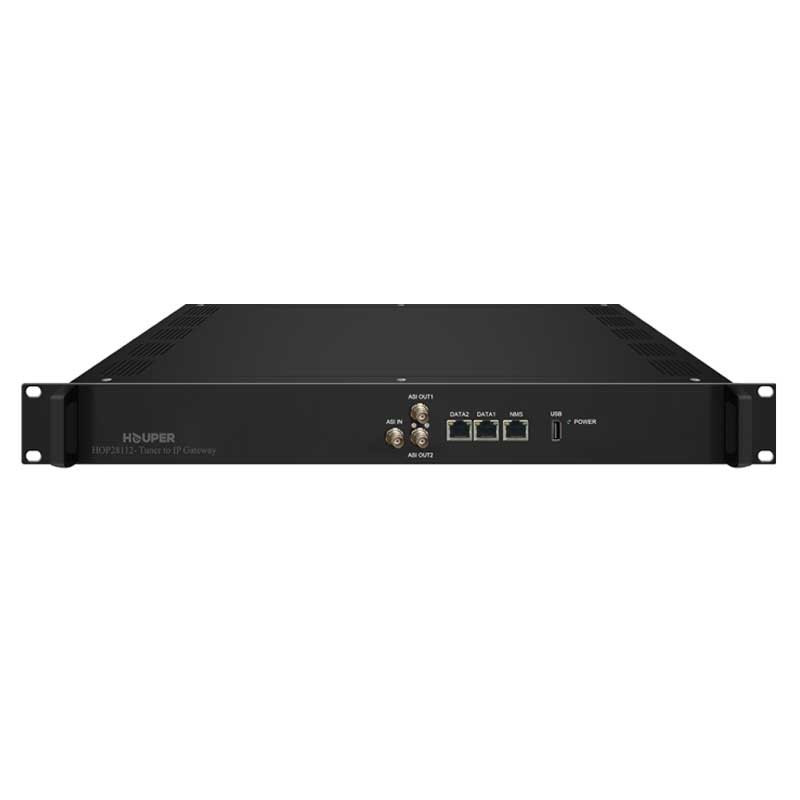

HOP28112 DVB to IP Gateway

$940.00

HOP28112 Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 24 MPTS+2 MPTS(ASI and USB) or 1024 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 24 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.

Delivery
Quantity

Features:

Support 24 FTA DVB- S/S2/S2X input, 1 ASI input, 1USB input

Support BISS descrambling

Support DisEqc function

24 MPTS+2 MPTS(ASI and USB port) or 1024 SPTS output (MPTS and SPTS output switchable)

2 GE output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS

2 independent GE output port, GE1(512 SPTS)+ GE2(512 SPTS)--- ( total 26 MPTS )

Support PID filtering, re-mapping (Only for SPTS output)

Support “Null PKT Filter” function (Only for MPTS output)

Support Web operation

Physical Interface:

Input

24 tuners input +1 ASI input +1 USB input---SPTS/MPTS output

Output

1024 SPTS IP output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast

26 MPTS IP output (for Tuner/ASI/USB pass-through) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast

System

Web based management

Ethernet software upgrade

Miscellaneous

Dimension 482mm×230mm×44mm (W×L×H)

Approx weight 2.5kg

Environment 0~45℃(work); -20~80℃(Storage)

Power requirements 100~240VAC, 50/60Hz

Power consumption 20W
