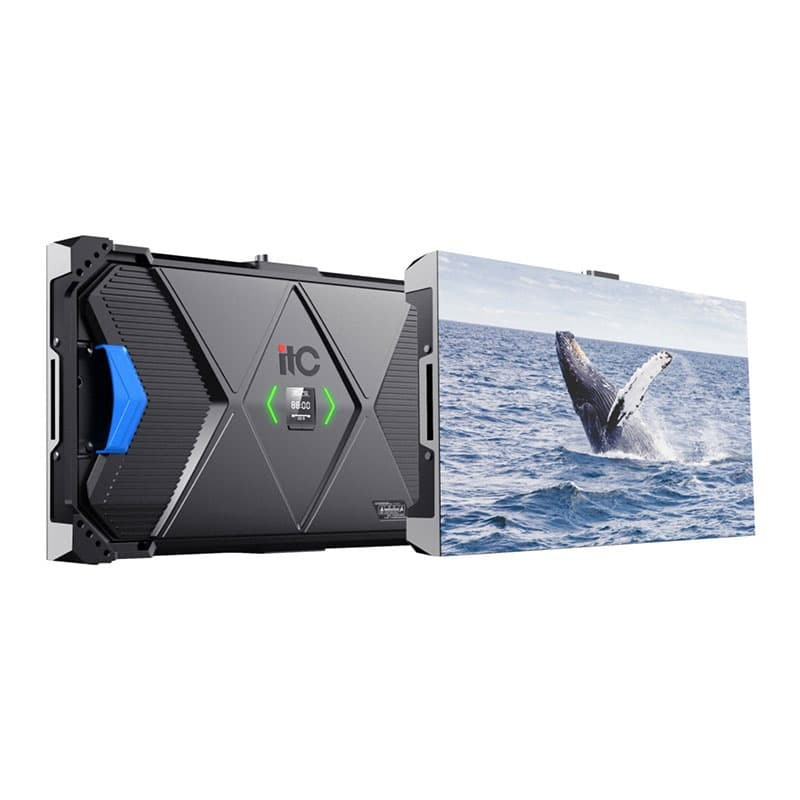

ITC TV-PG Indoor LED Video Wall
  • ITC TV-PG Indoor LED Video Wall
  • ITC TV-PG Indoor LED Video Wall

ITC TV-PG Indoor LED Video Wall

$5,900.00

It has the characteristics of seamless splicing, perfect display, long service lifespan, fast frame changing speed, high refresh rate, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch, security monitoring, video conference, studio display, and various conference display occasions.

Quantity

Series and models

GX series

GP series

GM series

DX series

Feature:

  • Used to monitor and display the situation in real time and play various advertisements.
  • Seamless splicing, and no visual black seam on the screen.
  • The display unit is flexible and compact, and supports flat and curved splicing.
  • DC low-voltage power supply, natural heat dissipation, no fan, and zero noise.
  • When a failure occurs, it only needs to maintain a single LED pixel or a single module, realizing low maintenance cost and fast maintenance speed.
  • Support picture correction, adopt gamma correction technology, achieve point-by-point brightness and color correction.
  • Support smart light control, smartly adjust brightness, improve picture comfort, and save energy.
  • With ultra-wide viewing angle, the screen has a larger viewing range, and the picture is still clear when viewed from any angle.
  • Support ultra-high refresh speed, good screen continuity and high screen fluency.
  • The picture is delicate and realistic, and the grayscale is still excellent in low brightness.
  • Support UHD display, adopt unique image quality enhancement technology to effectively improve image clarity, and the high-speed picture is smooth and no smear.
  • Support integrating 3D, touch screen and somatosensory games and other functions to improve entertainment and interactivity.
  • Wireless connection, clean and safe back design.
  • Support hard connection, full hot swap.

Video Wall
100 Items

Data sheet content

videowall

6. Best viewing distance
≥3m , ≥3.75m , ≥4.35m , ≥4.7m , ≥5m , ≥5.6m
6. Brightness
200~800CD/m² , 200~1000CD/m²
6. Contrast
≥10000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥20000H , ≥10000H
6. Operating temperature
-20℃~+60℃
6. Operating voltage
DC+4.2V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate
≥3840Hz
6. Scanning method
32S , 36S , 30S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/100000 and no continuous failed pixels

Specifications

videowall

6. Best viewing distance ≥3m, ≥3.75m, ≥4.35m, ≥4.7m, ≥5m, ≥5.6m
6. Brightness 200~800CD/m², 200~1000CD/m²
6. Contrast ≥10000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥20000H, ≥10000H
6. Operating temperature -20℃~+60℃
6. Operating voltage DC+4.2V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate ≥3840Hz
6. Scanning method 32S, 36S, 30S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/100000 and no continuous failed pixels
