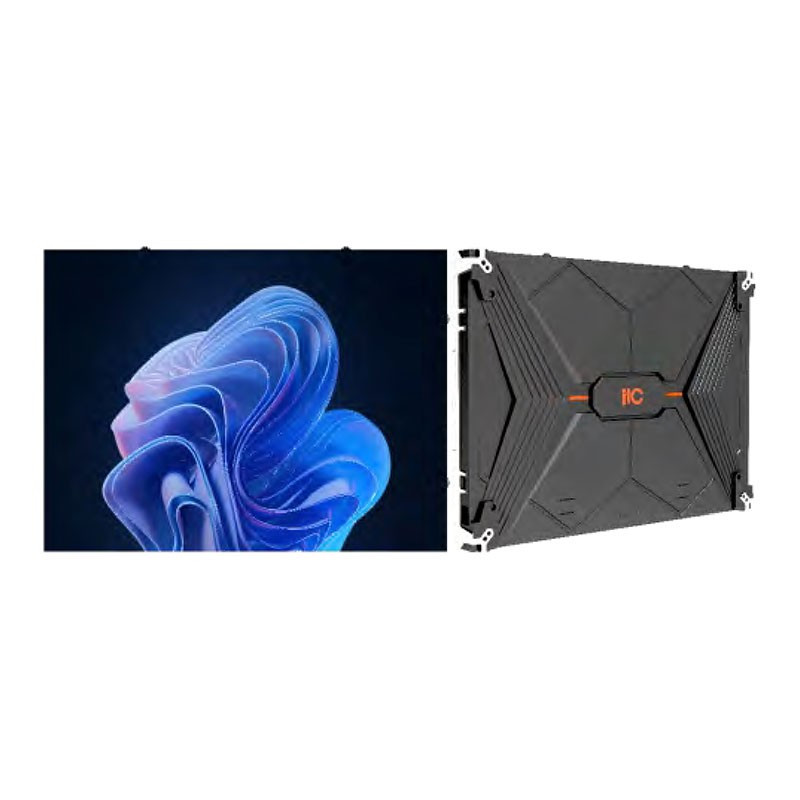

ITC TV-PD Indoor LED Video Wall
  • ITC TV-PD Indoor LED Video Wall
  • ITC TV-PD Indoor LED Video Wall

ITC TV-PD Indoor LED Video Wall

$1,850.00

Indoor LED video wall TV-PD is one of the popular and widely used video wall models from ITC brand. The TV-PD video wall has very high image quality and vivid and true colors, which is very effective in attracting the attention of the audience. This video wall has four series YZ, YG, MG and MZ, each of which has 5 models with different dimensions. This type of display has features such as seamless display (no lines and lines), long service life, high frame rate, high refresh rate, good uniformity, wide viewing angle, high gray level codes, natural color reproduction, etc. The TV-PD indoor LED video wall is widely used in command and control systems, security surveillance, video conferencing, TV studios, indoor conference rooms, etc.

Quantity

Indoor LED video wall TV-PD has unique features such as SMD1515 black light and Domestic copper wire/high fresh rate, which creates quality images and vivid colors. With an MTBF of more than 20,000 hours and a working life of more than 100,000 hours, this product has high durability and stability.

It has the characteristics of seamless display, long service lifespan, high frame rate, high refresh rate, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch, security monitoring, video conference, television studio, various indoor conference rooms, etc.

Series and models

MG series

MZ series

YG series

YZ series

Feature

  • Used to monitor and display the scene situation in real time and play various advertisements.
  • Seamless splicing, no visual black seams.
  • The display unit is flexible and compact to achieve smooth flat and curved splicing.
  • DC low-voltage power supply, natural heat dissipation, no fan, and zero noise.
  • It only needs to maintain a single LED pixel or a single module when it fails, which is convenient and cost-saving.
  • Support picture correction, use gamma correction technology to realize pixel-by-pixel brightness and color correction.
  • Support smart light control, adjust brightness intelligently, improve picture comfort, and save energy.
  • With ultra-wide viewing angle, the display is still clear when viewed from any angle.
  • With ultra-high refresh speed, the screen has good continuity and high fluency.
  • The display is delicate and realistic, and the grayscale is still excellent in low brightness.
  • Support UHD display; adopt unique image quality enhancement technology to effectively improve image clarity; the high-speed picture is smooth without tailing.

Video Wall
100 Items

Data sheet content

videowall

6. Best viewing distance
≥7.5m , ≥9m , ≥4.6m , ≥5.5m , ≥6m
6. Brightness
200～600CD/m²
6. Contrast
≥10000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥20000H
6. Operating temperature
-20℃~+60℃
6. Operating voltage
DC +4.2V~+5V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate
≥3840Hz
6. Scanning method
52S , 58S , 40S , 32S , 26S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/100000 and no continuous failed pixels

16 other products in the same category

Specifications

videowall

6. Best viewing distance ≥7.5m, ≥9m, ≥4.6m, ≥5.5m, ≥6m
6. Brightness 200～600CD/m²
6. Contrast ≥10000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥20000H
6. Operating temperature -20℃~+60℃
6. Operating voltage DC +4.2V~+5V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate ≥3840Hz
6. Scanning method 52S, 58S, 40S, 32S, 26S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/100000 and no continuous failed pixels
