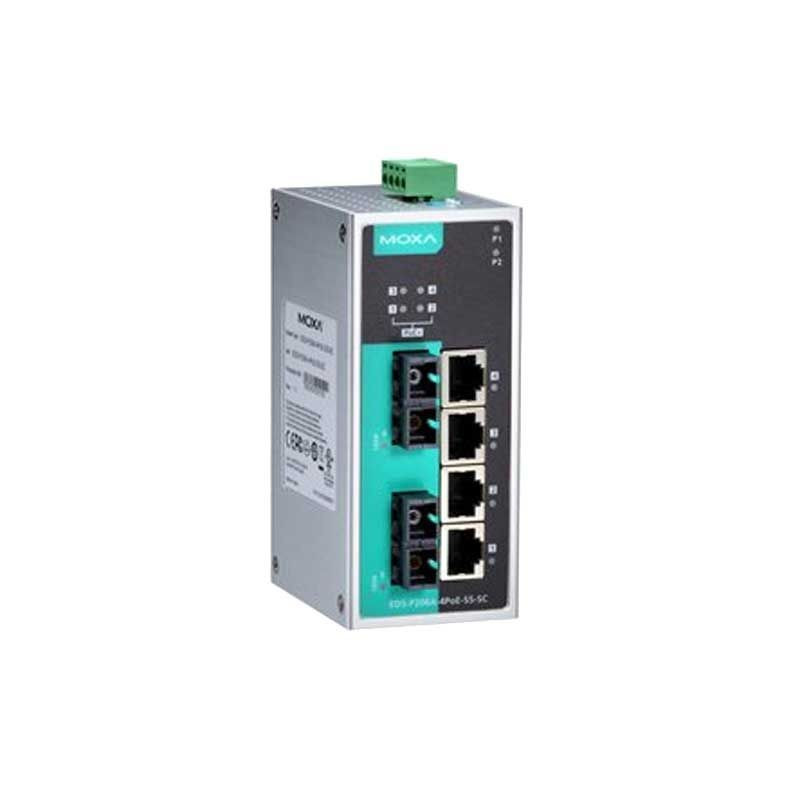

MOXA EDS-P206A unmanaged 6-port switches with 4 PoE+ and 2 fiberoptic ports
$441.00
The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
switch
100 Items
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 4 , 6
- Port speed
- 10-100
- Uplink port
- 2
- Uplink Port speed
- 10/100BASE-TX , 10/100TX
- type of ports
- copper RJ45
- type of uplink ports
- copper RJ45 , MM , SM ST
- Power over Ethernet
- Yes
- Type of POE
- POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
- Layer of switch
- Layer 2
- Switch power consumption
- 9-56VDC
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 4, 6 |
| Port speed | 10-100 |
| Uplink port | 2 |
| Uplink Port speed | 10/100BASE-TX, 10/100TX |
| type of ports | copper RJ45 |
| type of uplink ports | copper RJ45, MM , SM ST |
| Power over Ethernet | Yes |
| Type of POE | POE, POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W |
| Layer of switch | Layer 2 |
| Switch power consumption | 9-56VDC |
| Operation temperature | -40 / +75 C |
The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port.
