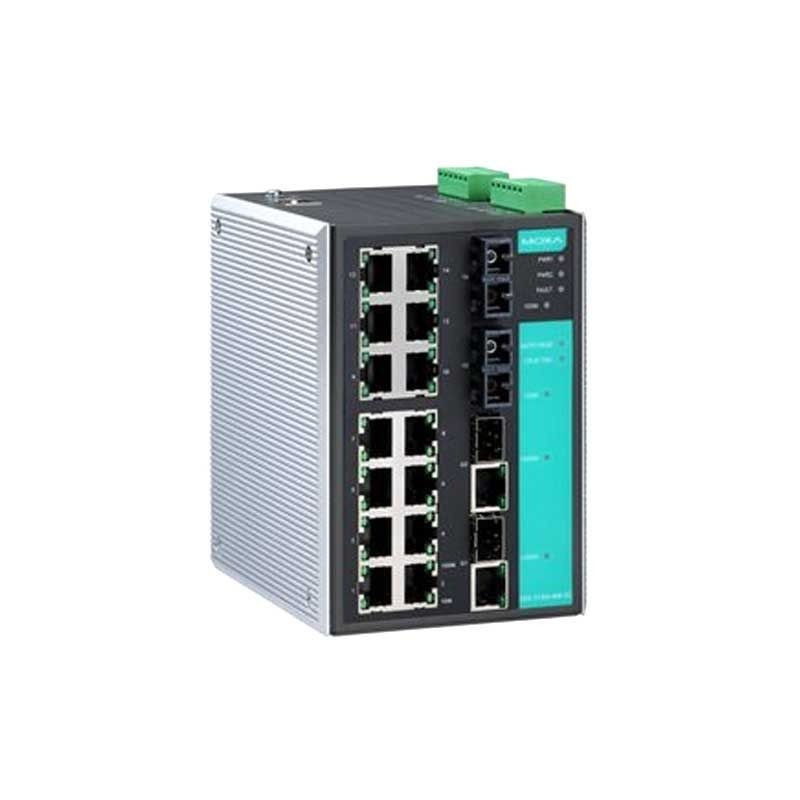

MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet
  • MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet
  • MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet
  • MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet
  • MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet

MOXA EDS-518A managed switches with 2 Gigabit SFP and 16 Fast Ethernet

$2,219.00

The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.

Quantity

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • Supports the ABC-01-USB (Automatic Backup Configurator) for system configuration backup
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Automatic warning by exception through email and relay output
switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
16
Port speed
10-100 , 10/100BASE-TX
Uplink port
2
Uplink Port speed
1G , 10/100/1000BASE-T , 10/100/1000BASE-T TP
type of ports
copper RJ45
type of uplink ports
copper RJ45 , SFP , MM , SM ST
Power over Ethernet
No
Layer of switch
Layer 3
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC
Operation temperature
-40 / +75 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 16
Port speed 10-100, 10/100BASE-TX
Uplink port 2
Uplink Port speed 1G, 10/100/1000BASE-T, 10/100/1000BASE-T TP
type of ports copper RJ45
type of uplink ports copper RJ45, SFP, MM , SM ST
Power over Ethernet No
Layer of switch Layer 3
IP version IPV4, IPV6
Switch power consumption 9-56VDC
Operation temperature -40 / +75 C
