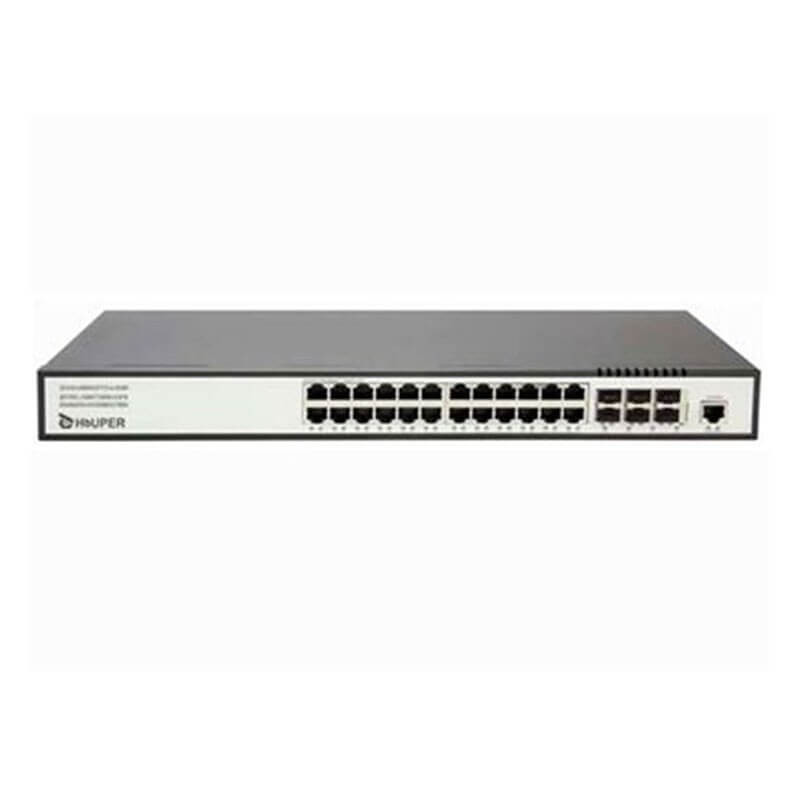

HOP5750-30TP- 24port 2.5 G Access 6x10 G Uplink Switch

Specifications:

• 24*2.5G ports,6*10 Gigabit optical ports,10 Gigabit optical ports can beadaptive to Gigabit.
• Ultra-high switching capacity, support full port wire-speed forwarding performance.
• Support weak Layer 3 access, support full port hardware Layer 3 wire-speed forwarding performance.
• High-performance low-power network processor, support for green Ethernet line sleep capability, low device power consumption.
• Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols.
• Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols.
• Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions.
• Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms.
• Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication.
• Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand.
• Support IPv4/IPv6 static routing function.
• Supports multi-port mirroring analysis and service flow-based image analysis.
• Support static and flexible QinQfunction.
• Support IPV4/6unicast routing in the policy, support flexible forwarding policy.
• Supports CLI command line management based on serial port, Telnet, and SSHv2 mode.
• Support RFC1213 SNMP network management.
• Supports configuration management based on WEB pages.

Product Specifications

Physical Interface:

• 10 Gigabit optical port: 6*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC.
• 2.5G port: 24*2.5G ports, the port can beadaptive10/100/1000M, type RJ45.
• Console port: manage serial port, used for command line management, type RS232.

Working environment:

• Operating temperature: -15C~55C.
• Storage temperature: -40C~70C.
• Relative humidity: 10%~90%, non-condensing.

Power consumption:

• Power supply specifications: single power supply,AC.
• Input power: AC: input 90~264V, 47~67Hz.
• Power consumption of the whole machine: full load power consumption ≤22W, idle power consumption ≤ 13W.

Mechanical structure:

• Chassis shell: metal shell, air-cooled heat dissipation.
• Chassis size: dimensions (length * width * height) (mm) 440 * 210 * 44.
• Installation: Standard 19 inch 1U rackmount installation.
