Specifications:

• 24 Gigabits (with PoE), supportIEEE 802.3af/atstandard, 10 Gigabit optical interface can beadapted to gigabit.
• Ultra-high switching capacity, support full portwire-speed forwarding performance.
• Weak Layer 3 access switch, support full port hardware Layer 3 wire-speed forwarding performance.
• High-performance low-power network processor, support for green Ethernet line sleep capability, low devicepower consumption.
• Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/PIM and other routing protocols.
• Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols.
• Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions.
• Support Ethernet OAM 802.3ag (CFM),802.3ah(EFM) and other Ethernet link detection mechanisms.
• Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication.
• Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand.
• Support IPv4/IPv6 static routing function.
• Supports multi-port mirroring analysis and service flow-based image analysis.
• Support static and flexible QinQfunction.
• Support IPV4/6unicast routing in the policy, support flexible forwarding policy.
• Supports CLI command line management based on serial port, Telnet, and SSHv2 mode.
• Support RFC1213 SNMP network management.
• Supports configuration management based on WEB pages.

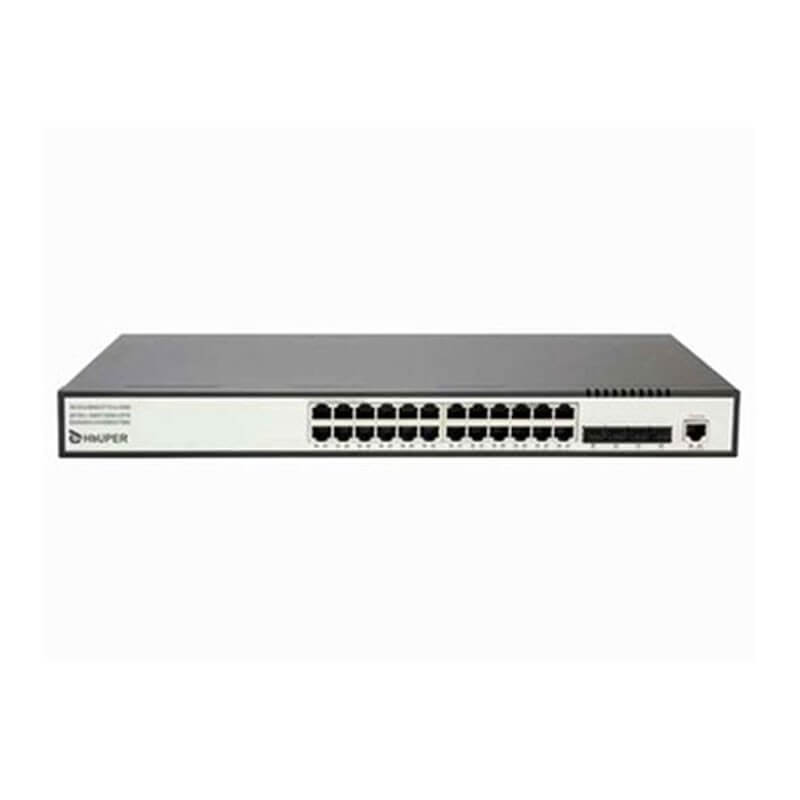

Product Specifications

Physical Interface:

• 10 Gigabit optical port: 4*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC.
• PoE ports: 24 Gigabit ports with PoE, support IEEE 802.3af/atstandard, type RJ45.
• Console port: manage serial port, used for command line management, type RS232.

Working environment:

• Operating temperature: -15C/~55C.
• Storage temperature: -40C/~70C.
• Relative humidity: 10%~90%, non-condensing.

Power consumption:

• Power supply specifications: single AC power supply, fixed 400W power supply.
• Input power: AC: input 90~264V, 47~67Hz.
• Power consumption of the whole machine: full load power consumption ≤ 400W, idle power consumption ≤ 25W.

Mechanical structure:

• Chassis shell: metal shell, air-cooled heat dissipation.
• Chassis size: dimensions (length * width * height) (mm) 440 * 270 * 44.
• Installation: Standard 19 inch 1U rack mount installation.
