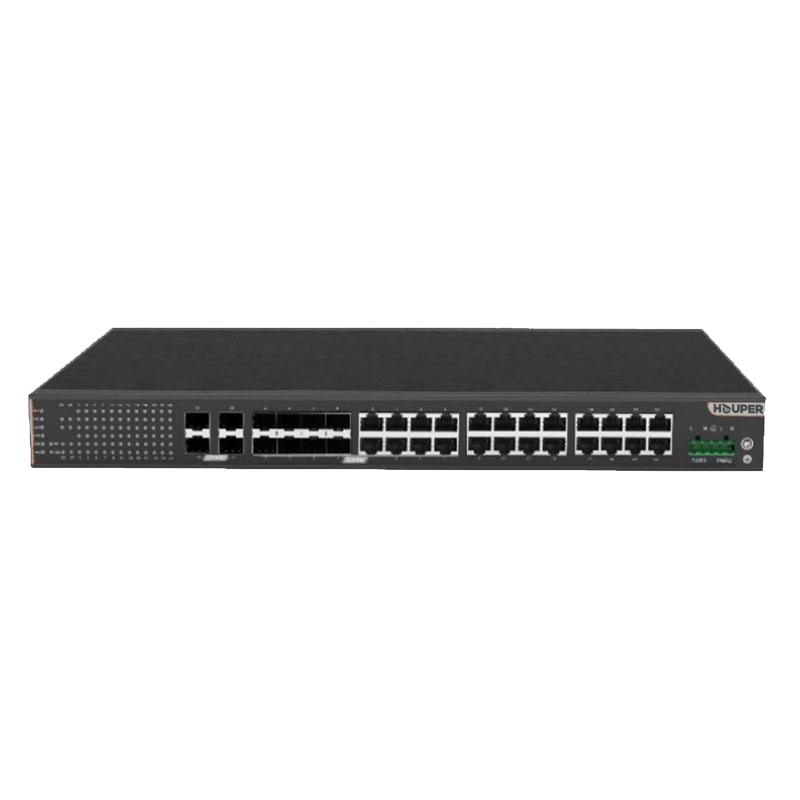

HOP3440S1236-4TP Industrial Managed Switch with 32XGE and 4X10GE

Product Features

 Layer 3 Model support OSPFv2, RIPv2, Static Route

 Support both IPv4/IPv6 applications

 Cache up to 12M for smooth transfer of 4K video

TACACS+, SNMPv3, IEEE 802.1 X, HTTPS and SSH to enhance network security

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

Link Aggregation, STP/RSTP/MSTP/ERPS/VRRP for network redundancy

ROMON for proactive and efficient network monitoring

Fanless, IP40 Rating, -40 oc 750C operating temperature design to ensure that

the equipment adapts to a variety of harsh environments

Redundant dual DC/AC power supplies are optional, anti-reverse connection,

overcurrent protection

ports

IOGigabit SFP plus

16<0/100/1000M Base-TX RJ45

10/10011000M Base-TX or 8x1000M Base-X SEP Combo

Port Mode(Tx)

Auto-Negotiation

Full/HaIf Duplex Mode

Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX

802.3ae for 10 Gigabit Ethernet

e IEEE 802.3x for flow control

IEEE 802.10-2004 for Spanning Tree Protocol

IEEE 802. Iw for Rapid Spanning Tree Protocol

IEEE 802. Is for Multiple Spanning Tree Protocol

IEEE 802. IP for Class of Service

IEEE 802. IQ for VLAN Tagging

IEEE 802. IX for authentication

IEEE 802.3ad for Port Trunk with I-ACP

Packet Buffer Size

12Mbits

Maximum Packet Length

to 10K

MAC Address Table

• 16K

Transmission Mode

Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7gs

Backplane bandwidth: 128Gbps

IGMP Group

Max. No. ofVLAN

, 256

VLAN ID Range

VID 1 to 4094

Power Supply

Power Consumption: 24 Watts Max

Power Inputs: 2

Input Voltage: 9-56VDC/110-240VAC, Redundant dual inputs

Connector

DC: I removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

AC: 3 Pin AC Socket

Protection: Overload Current Protection, Reverse Polarity Protection

Physical Characteristics

Housing

Aluminum case

IP Rating

IP40

Dimensions

e400mmx300mmx45mm

Installation

Rack Mount

Weight

.2800g

Environment

Operating Temperature

(-40 to 1670F)

Operating Humidity

50/0¯900/0 (non-condensing)

MTBF

Heat Dissipation

75 BTU/h

Cooling

• Passive Cooling, Fanless Design

Noise Level

• o dBA

Model: HOP3440S1228-4TP

Software Features

Management Interface

WebUl(HTTPS), SNMPv3

Management

ARP, Flow Control, DDM, DHCP Server/Client, IPv4/lPv6, LLDP, LLDP-MED,

UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet,

File Management

e Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup,

Multiple Configuration, TFTP(RFC783), HTTP, IJART

Management Access

Management VLAN, Management ACL(256)

Filter

802.1Q, GMRP, GVRP, IGMP Snooping vl/v2/v3, IGMP QuerierV21V3 Q i n Q

VLAN Redundant Network

Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering,

Self Loop Detection Routing Redundancy VRRP(lnterface and IP Address)

VLAN

Support IEEE 802.1Q 4K VLAN, QING, Double VLAN, Voice LAN,

Surveillance VLAN(Auto/Manual), Multicast VLAN Registration(MVR)

Time Management

Local, SNTP, NTP

Unicast Routing

OSPFv2, RIPv1/v2, Static Route

QOS

Support Queue Scheduling(WRR, WFQ, Strict Priority, Hybrid(WRR+SP or WFQ+SP); Priority Queue(8 queues/port); Class of Service (Port-based, 802. I p,

IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation

ACL Type

e L2/L3/L4, MAC-based, IPv4-based, IPv6-based

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Security

Broadcast Storm Control, HTTPS/SSLv2v3, TLSv1 RADIUS, TACACS+, AAA

SSHv1/v2, Support DHCP Snooping, Option 43/82, 802. IX security access,

Support user hierarchical management, ACL access control list, Support DOS,

port-based MAC filtering/binding, MAC whitelist

MIB

Ethernet-like MIB, ME-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON

& 9 RFC2737 Enw, RFC2863 Interface SNMPCommurw-MlB
