HOP3412S136-2TX industrial PoE switch with 4GE,2GE SFP ports
  • HOP3412S136-2TX industrial PoE switch with 4GE,2GE SFP ports

HOP3412S136-2TX industrial PoE switch with 4GE,2GE SFP ports

$102.60

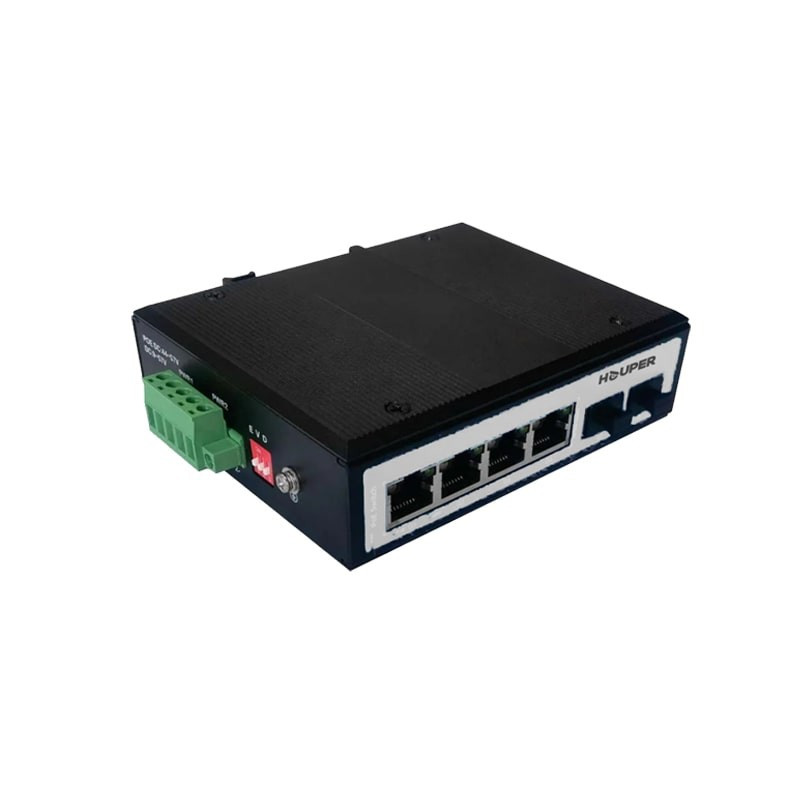

The HOP3412S136-2TX is a full gigabit industrial PoE fiber switch. It has 4*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 15W, and the maximum PoE output power of the host is 30W (at-60W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply.

Quantity

It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

Model

HOP3412S136-2TX

Interface

4*10/100/1000Base-T PoE ports (Data/Power)

2*100/1000Base-X uplink SFP fiber slot port (Data)

2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)

Ethernet Port

Port 1-4 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption

Network Protocol

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-T/TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3u 100BASE-FX

IEEE802.3x

PoE Standard

IEEE802.3af/at

SFP Port Characteristic

Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Forwarding Mode

Store and Forward

Switching Capacity

12Gbps (Non-blocking)

Forwarding Rate@64byte: 8.93Mpps

MAC: 4K

Buffer Memory: 2M

Jumbo Frames :10K

MTBF:100000 hours

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Power Supply Pin

Default:1/2 (+), 3/6 (-)

Working Voltage

VDC;5P industrial phoenix terminal, anti-reverse protection

Max/ Average Power Per Port

30W/ 15.4W ; IEEE802.3af/at

Total PWR / Input Voltage

60W/48VDC (IEEE802.3af)

Power Consumption

Standby:<2W; Full load:<60W Standby:<2W; Full load:<120W

Power Supply

No, optional 48V/60W or 48V/120W industrial power supply

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/(Green),5~6(Link/Act)/ (Green); POE indicator: PoE (Orange)

Operation TEMP / Humidity

-40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Dimension (L*W*H)

119*100*35mm

Net /Gross Weight

<0.5kg/<0.7kg

Installation: Desktop, 35mm DIN rail

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class A

IEC61000-6-2(Common Industrial Standard)

switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
4
Port speed
1G , 10/100/1000BASE-T
Uplink port
2
Uplink Port speed
1G , 10/100/1000BASE-T
type of ports
SFP
type of uplink ports
SFP
Power over Ethernet
Yes
Type of POE
POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
Switch power consumption
9-56VDC , 127-130W
Operation temperature
-40 / +85 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 4
Port speed 1G, 10/100/1000BASE-T
Uplink port 2
Uplink Port speed 1G, 10/100/1000BASE-T
type of ports SFP
type of uplink ports SFP
Power over Ethernet Yes
Type of POE POE, POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W
Switch power consumption 9-56VDC, 127-130W
Operation temperature -40 / +85 C
