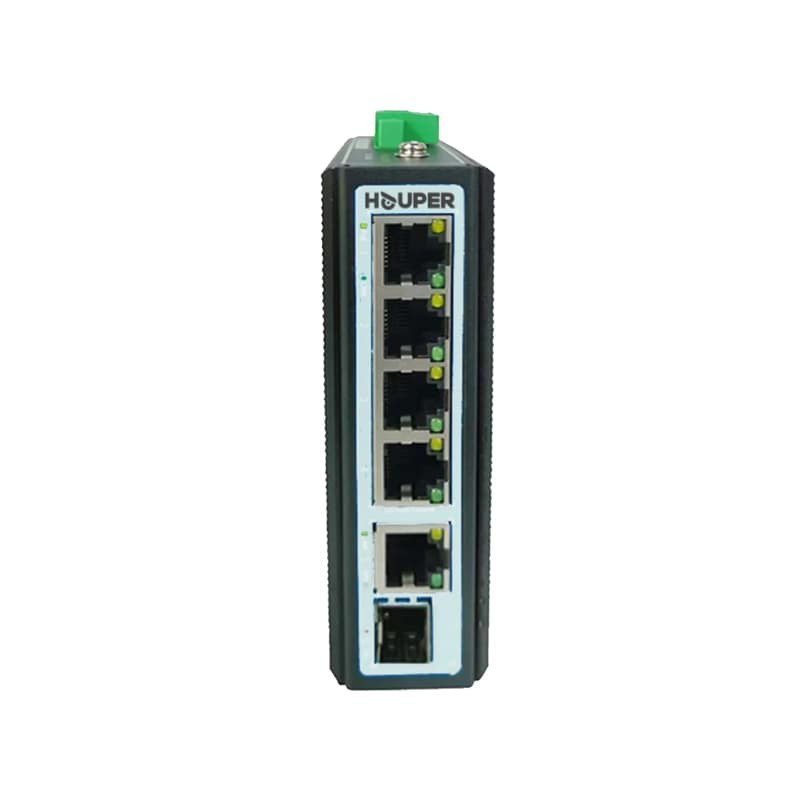

HOP3412S136-1TP industrial PoE switch with 5GE,1GE SFP fiber ports

 It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network

Model

HOP3412S136-1TP

Interface

4*10/100/1000Base-T PoE ports (Data/Power)

1*1000Base-T uplink RJ45 port (Data)

1*100/1000Base-X uplink SFP fiber slot port (Data)

2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)

Ethernet Port

Port 1-4 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X

self-adaption

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,

IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X, IIEEE802.3x

PoE Standard

IEEE802.3af/at

SFP Port Characteristic

Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable

Multimode: 850nm 0 ~ 550M,

single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM

Forwarding Mode

Store and Forward

Switching Capacity

12Gbps (Non-blocking)

Forwarding Rate64 @byte: 8.93Mpps

MAC: 4K

Buffer Memory: 1M

Jumbo Frames :10K

MTBF:100000 hours

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Power Supply Pin

Default:1/2 (+), 3/6 (-)

Working Voltage

48-57VDC; 5P industrial phoenix terminal, anti-reverse protection.

Max/ Average Power Per Port

30W/ 15.4 W; IEEE802.3af/at

Total PWR / Input Voltage

60W/48VDC (IEEE802.3af)

Power Consumption

Standby:<2W; Full load:<60W Standby:<2W; Full load:<120W

Power Supply

No, optional 48V/60W or 48V/120W industrial power supply

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/  (Green),5-6(Link/Act)/ (Green), Speed/ (Orange); POE indicator: PoE (Orange)

Operation TEMP / Humidity

-40~+85°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+125°C;5%~95% RH Non condensing

Dimension (L*W*H)

115*85*30mm

Net /Gross Weight

<0.5kg/<0.7kg

Installation

Desktop, 35mm DIN rail

Lightning protection / protection level

 6KV 8/20us

Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class A

IEC61000-6-2(Common Industrial Standard)
