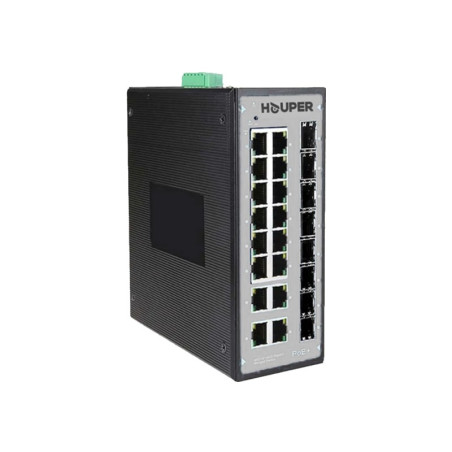

HOP3412S1324-8TP managed industrial switch with 16GE PoE + 8GE SFP fiber ports
  • HOP3412S1324-8TP managed industrial switch with 16GE PoE + 8GE SFP fiber ports

HOP3412S1324-8TP managed industrial switch with 16GE PoE + 8GE SFP fiber ports

$655.50

The HOP3412S1324-8TP has the leading ring network technology, supporting a variety of industrial redundant ring network protocol, any port can be a ring, support chain type, star type, double star type, ring type, tangent ring, intersecting ring,   coupling ring, ring network 50ms self-healing. This series of models have high reliability, high security and high manageability, ensure reliable transmission of key data, support remote management, and can manage cluster management with optical network NMS network management platform to achieve the whole process without blind point network management. HOP3412S1324-8TP industrial series products fully follow industrial product design and material. The shell uses aluminum alloy to enhance heat dissipation.

Quantity

The HOP3412S1324-8TP is a full Gigabit managed industrial PoE switch. it has 16*10/100/1000M PoE ports + 8*Giga SFP fiber slot ports. Port 1-16 can support IEEE 802.3af/at standard POE power supply, single port POE power up to 15W, and the maximum POE output power of the whole machine is 30W (at-240W). As a POE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the POE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment. It is suitable for intelligent transportation, rail transportation, electric power industry, mining metallurgy and green energy construction and so on. A reliable communication networks. The HOP3412S1324-8TP has the leading ring network technology, supporting a variety of industrial redundant ring network protocol, any port can be a ring, support chain type, star type, double star type, ring type, tangent ring, intersecting ring,   coupling ring, ring network 50ms self-healing. This series of models have high reliability, high security and high manageability, ensure reliable transmission of key data, support remote management, and can manage cluster management with optical network NMS network management platform to achieve the whole process without blind point network management. HOP3412S1324-8TP industrial series products fully follow industrial product design and material. The shell uses aluminum alloy to enhance heat dissipation. It has excellent industrial field environment adaptability (including mechanical stability, climate and environment adaptability, electromagnetic environment adaptability, etc.), protection level to IP40, support dual redundancy power supply, low Power consumption without fan heat dissipation technology, MTBF average fault free working time can reach 35 years

Model

HOP3412S1324-8TP

Interface

16*10/100/1000M PoE ports (Data/Power)

8*100/1000M uplink SFP+ fiber slot ports (Data)

1*Console RS232 port (115200,N,8,1)

2 sets of V+, V- redundant DC power interface (6 Pin Phoenix terminal)

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3

PoE Standard

IEEE802.3af/at

Ethernet Port Feature

Port 1-16 can support 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive

SFP Port Characteristic

Gigabit SFP+ optical fiber interface, default matching optical modules, need to buy separately,(optional order mode / multi-mode, single fiber / double fiber optical module.

Forwarding Mode

Store and Forward

Switching Capacity

368Gbps (Non-blocking)

Forwarding Rate@64byte

77.38Mpps

MAC: 24K

Buffer Memory: 24M

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

Optical Cable

Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Power Supply Pin

Only support 1/2 (+), 3/6 (-)

Max/ Average Power Per Port

30W/ 15.4W ; IEEE802.3af/at

Total PWR / Input Voltage

240W (48-57VDC)

Power Consumption

Standby:<16W; Full load:<240W

LED Power indicator

PWR (Green); Network indicator: 1-16(Link/Act)/ (Orange),17-24(Link/Act)/(Green); POE indicator: PoE (Green)

Power Supply

No, see accessories information table to buy and use

Operation TEMP / Humidity

-40~+85°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+125°C;5%~95% RH Non condensing

Dimension

165*148*68.5mm

Net /Gross Weight

<2kg / <2.5kg

Lightning protection

protection level

Lightning protection: 6KV 8/20us;Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
8 , 16 , 24
Port speed
10/100/1000BASE-T
Uplink port
8
Uplink Port speed
1G , 10/100/1000BASE-T
type of ports
copper RJ45 , SFP
type of uplink ports
copper RJ45 , SFP
Power over Ethernet
Yes
Type of POE
POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
Layer of switch
Layer 2 , Layer 3 , VLAN
IP version
IPV4 , IPV6
Switch Management
WEB base
Switch power consumption
200-300W
Operation temperature
-40 / +85 C
Switch Capacity
368Gbps

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 8, 16, 24
Port speed 10/100/1000BASE-T
Uplink port 8
Uplink Port speed 1G, 10/100/1000BASE-T
type of ports copper RJ45, SFP
type of uplink ports copper RJ45, SFP
Power over Ethernet Yes
Type of POE POE, POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W
Layer of switch Layer 2, Layer 3, VLAN
IP version IPV4, IPV6
Switch Management WEB base
Switch power consumption 200-300W
Operation temperature -40 / +85 C
Switch Capacity 368Gbps
