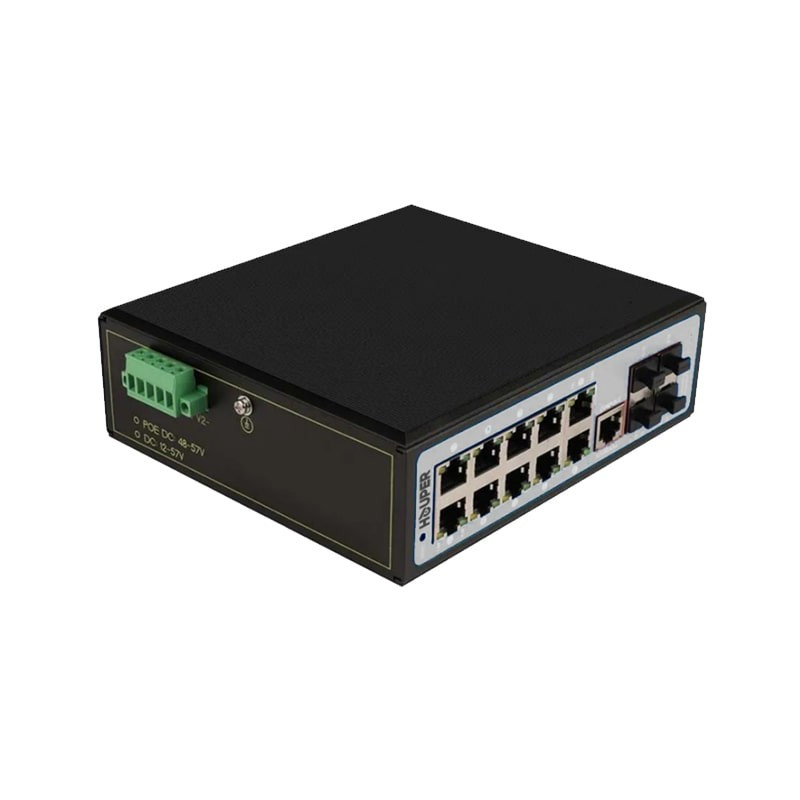

HOP3412S1314-4TP managed industrial PoE switch with 10 GE, 4GE SFP ports

It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on. A reliable communication networks.

Managed model supports a variety of network redundancy protocol STP/RSTP/  MSTP (<50ms). When one-way network fails, communication can be recovered quickly to ensure uninterrupted communication of important applications. IHOP3412S1314-4TP industrial series products fully follow industrial product design and material. The shell adopts aluminum alloy to enhance heat dissipation efficiency, IP40 protection grade, and ensures the stable operation of the          equipment in bad environment. According to the actual application needs, through WebCLI, SNMP network management, POE power supply management, port flow control, VLAN division, STP, RSTP and other functions of the application service configuration.

Model

HOP3412S1314-4TP

Interface

8*10/100/1000Base-T PoE ports (Data/Power)

2*10/100/1000Base-T uplink RJ45 ports (Data)

4*100/1000Base-X uplink SFP slot ports (Data)

1 * RS232 console port(115200, N,8,1)

2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)

Single-pole double throw switch (FAULT)

Port 1-8 supports POE @ IEEE802.3af/at

Network Protocol

L2+

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-T/TX

IEEE802.3ab 1000BASE-T

PoE Standard

IEEE802.3af/at

SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.

Forwarding Mode

Store and Forward

Switching Capacity

256bps (Non-blocking)

Forwarding Rate@64byte: 20.83Mpps

MAC: 16K

Buffer Memory: 6M

Jumbo Frame:10K

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Optical Cable

Multimode: 850nm 0 ~ 500M;

Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Power Supply Pin

Default 1/2(+), 3/6(-);

Working Voltage

48-57VDC; 6 Pin industrial Phoenix terminal, support anti-reverse protection.

Max/ Average Power Per Port

30W/ 15.4W; IEEE802.3af/at

Total PWR / Input Voltage

150W (48-57VDC)

Power Consumption

Standby:<10W; Full load:<240W

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-10(Link/Act)/            (Green),11~14(Link/Act)/ (Green); POE indicator: PoE (Orange)

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Reset Switch

Yes, One-button factory reset

Operation TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Storage TEMP / Humidity

-40~+125°C;5%~95% RH Non condensing

Dimension

165*148*52mm

Net /Gross Weight

<1.1kg / <1.5kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class B

IEC61000-6-2(Common Industrial Standard)

PoE Management

Support total power limit configuration for POE power supply

Support PoE output power allocation per port, close / start af/at

Support PoE output priority configuration per port

Support PoE work status per port display

Support power delay start

Support PoE work and time schedule
