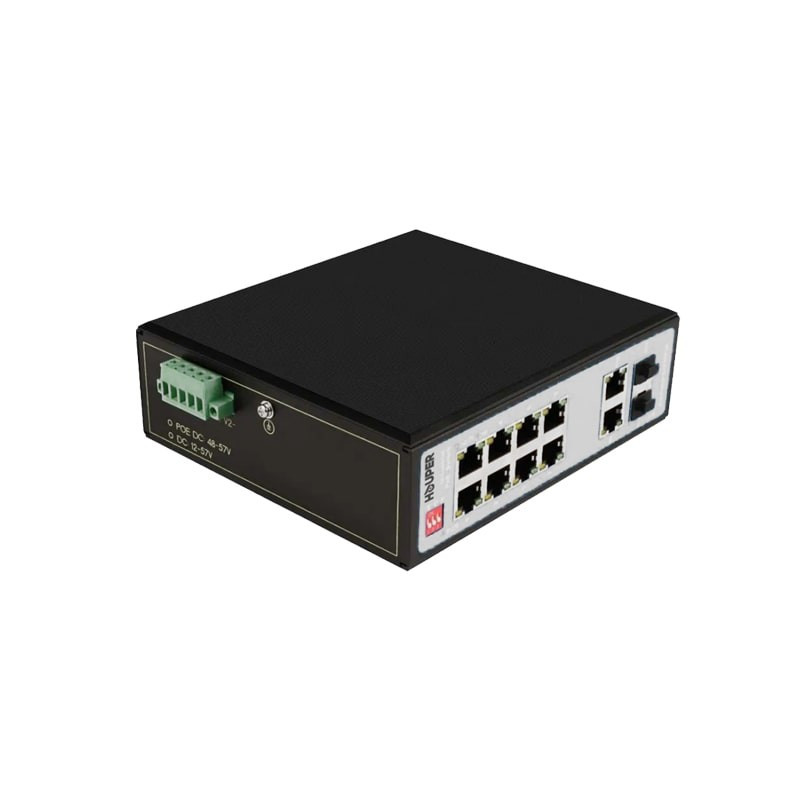

HOP3412S1312-2TP industrial POE switch with 10GE , 2GE SFP ports

Model

HOP3412S1312-2TP

Interface

8*10/100/1000Base-T PoE ports (Data/Power)

2*10/100/1000Base-T RJ45 ports (Data)

2*100/1000Base-X SFP slot ports (Data)

2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)

Network Protocol

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-T/TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3u 100BASE-FX

IEEE802.3x.

PoE Standard

IEEE802.3af/at

Feature

With the Dial code switch, support port priority by default.

E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;

V: Turn on, 1-4 Port support each port Isolation & VLAN

D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale

SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.

Forwarding Mode

Store and Forward

Switching Capacity:17.856 Gbps (Non-blocking)

Forwarding Rate@64byte: 8.93Mpps

MAC: 8K

Buffer Memory: 4M

Power Consumption Standby:<8W; Full load:<250W

LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)

(Orange),5-6(Link/Act)/ (Green); POE indicator: PoE (Green)

Power Supply No, see accessories information table to buy and use

Operation TEMP / Humidity -40~+85°C;5%~95% RH Non condensing

Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing

Dimension 145*112*48mm

Net /Gross Weight <0.7kg /<1.5k

Jumbo Frame: 10K

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Optical Cable

Multimode: 850nm 0 ~ 500M, 1310nm 0~2KM

Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM

Power Supply Pin

Default 1/2 (+), 3/6 (-)

Working Voltage

48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.

Max/ Average Power Per Port

30W/ 15.4W; IEEE802.3af/at

Total PWR / Input Voltage

120W (48-57VDC)

Power Consumption

Standby:<3W; Full load:<120W

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9(Link/Act)  / (Green), Speed/ (Orange); POE indicator: PoE (Orange)

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Operation TEMP / Humidity

-40~+75°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Dimension

165*145*54mm

Net /Gross Weight

<1.3kg / <1.8 kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class A

IEC61000-6-2(Common Industrial Standard)
