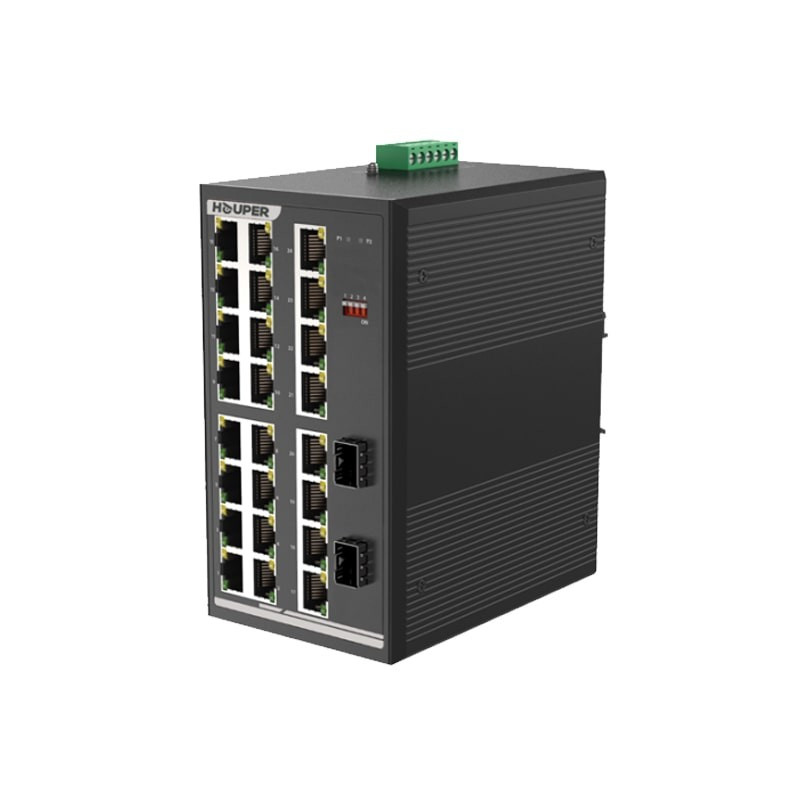

HOP3412S1226-2TX INDUSTRIAL NETWORK SWITCH WITH 24XGE AND 2XGE SFP
  • HOP3412S1226-2TX INDUSTRIAL NETWORK SWITCH WITH 24XGE AND 2XGE SFP

HOP3412S1226-2TX INDUSTRIAL NETWORK SWITCH WITH 24XGE AND 2XGE SFP

$427.50

The 26 Port Unmanaged Industrial Ethernet Switch is designed for industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch's robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports. The models are available in both non-PoE and POE versions and can power the latest high-powered POE devices over a wide industrial operating temperature range.

Quantity

Product Features

  • Support IEEE 802.3af/at/bt POE Standard, without damaging not-PoE devices.
  • Support up to 24x10/100/1000Base-T RJ45 and 1000Base-X SFP
  • Full/HaIf-dupIex self-adaptation/MDIX automatic recognition
  • Jumbo Frame up to 10K, 52G backplane bandwidth
  • Operating temperature -40 to 75
  • Wide-range DC9¯56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • All-Aluminum shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • All-aluminum Case, Compact and Fanless Design
  • Plug and play,no software configuration

Ethernet Interface

Model:HOP3412S1226-2TX

  • ports: 10/100/1 OOOBase-TX OOOBase-X SFP
  • Port Mode(Tx):Auto-Negotiation Speed e Full/HaIf Duplex Mode
  • Auto MDI/MDI-X Connection

Standards

  • IEEE 802.3 for IOBaseT
  • e IEEE 802.3u for Fast Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3x for flow control and back pressure
  • IEEE802.3az for Energy Efficient Ethernet(EEE)

  • Packet Buffer Size: 04M
  • Maximum Packet Length: 10K
  • MAC Address Table:08K
  • Transmission Mode:Store and Forward (full/half duplex mode)
  • Exchange Property: Delay time: < 7gs Backplane bandwidth: 52G

POE & Power Supply(Base on model)

  • PoE Ports: Port 1 to 24 IEEE802.3af/at @PoE+
  • Power Supply Pin: Default: 1/2(+), 3/6(-)
  • Max Power Per Port: 30W
  • Total PWR /lnput Voltage: 480W(DC48-56V) (Model dependent)
  • Power Consumption: 24 Watts Max(without POE load)
  • Operating Voltage: 30W PoE Mode: 48-56VDC
  • Connector: 1 removable 6-contact terminal blocks--Pin 1/2 for Power 1, Pin 3/4 for Power 2 - Pin5/6 for fault alarm
  • Protection:Overload Current Protection, Reverse Polarity Protection

Physical Characteristics

  • Housing:Aluminium case
  • IP Rating: I P40
  • Dimensions: 155mmx128mmx88mm
  • InstallationDlN: Rail/WaII Mount
  • Weight: 1.35kg
  • Environmental:Operating Temperature: (-40 to 1670F)
  • Operating Humidity: (non-condensing)
  • Storage Temperature: -400c-85 C (-40 to 185 OF)
  • MTBF: 907,476 hours @ Telcordia SR-332 Standard
  • Heat Dissipation: 34 BTU/h (non-P0E mode)- 853 BTU/h (with 240W PoE load)
  • Cooling: Passive Cooling, Fanless Design
switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
24
Port speed
1G , 10/100/1000BASE-T
Uplink port
2
Uplink Port speed
1G , 10/100/1000BASE-T
type of ports
copper RJ45
type of uplink ports
SFP
Power over Ethernet
Yes
Type of POE
POE , POE+ , POE++ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W , IEEE 802.3bt - 60.0W
Layer of switch
Layer 2
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC , 400-550W
Operation temperature
-40 / +85 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 24
Port speed 1G, 10/100/1000BASE-T
Uplink port 2
Uplink Port speed 1G, 10/100/1000BASE-T
type of ports copper RJ45
type of uplink ports SFP
Power over Ethernet Yes
Type of POE POE, POE+, POE++, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W, IEEE 802.3bt - 60.0W
Layer of switch Layer 2
IP version IPV4, IPV6
Switch power consumption 9-56VDC, 400-550W
Operation temperature -40 / +85 C
