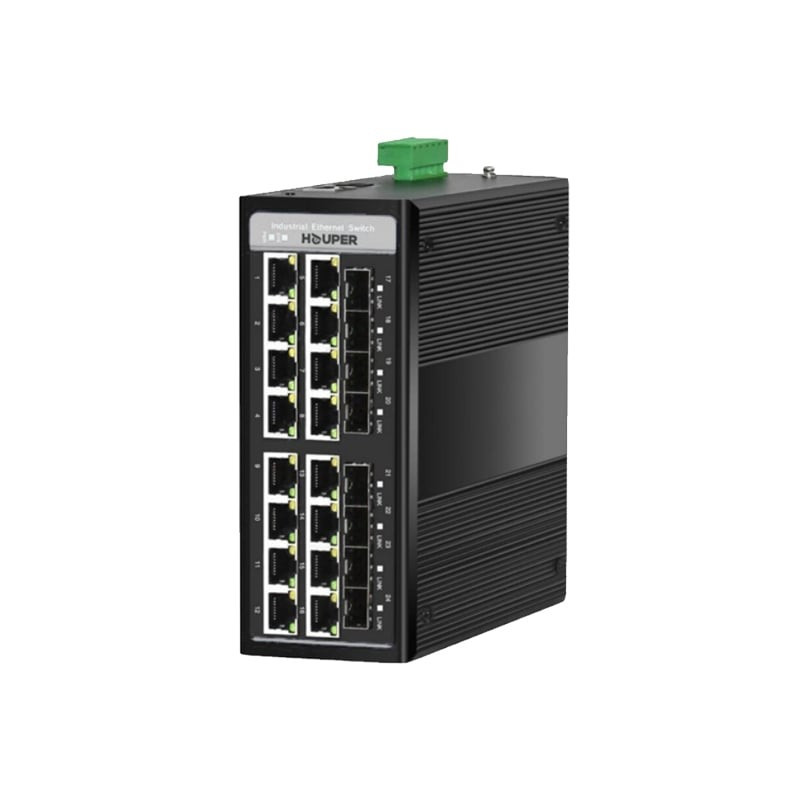

Product Features

• 16x10/100/1000Base-TX RJ45 ports, 1000Base-FX Fast SFP pons, 16xP0E
• Support Auto-MDIX, and full/half duplex self-negotiation mode
• Provide SFP LC interface fiber port, support single/dual fiber transmission
• Support 10K bytes giant frame, compatible with various extension protocol
• 8K MAC address table
• Support IEEE802.3az energy efficient Ethernet technology
• Support IPv6 Protocol
• Electric 4KV surge protection, easy to use in outdoor environment
• Complete status indicator, working state at a glance
• Power input polarity protection design, no worry about wrong operation Metal case, no fan design
• Installation method: DIN rail [Wall mounting

Ethernet Interface

Exchange attributes

• Electrical port characteristics:16x 10/100/1000BASE-TX,RJ45
• Optical port characteristics:8xIOOOBASE-X(SFP)
• Backplane bandwidth:56Gbps
• MAC address: 8K
• Jumbo frame: 10K Bytes
• Swap buffer: 4Mb

POE

• (Optional) POE standard: 802.3af/802.at
• POE port: 16
• POE power: 30W

chassis

• size: 160x132x70 mm
• weight: 1200g
• Material: Aluminum alloy, IP40
• Installation : Rail-mounted/wall-mounted installation

power supply

• Input: Dual power supply, 9-56V DC- Single power supply, 220V AC (optional)
• e Interface:6 PIN Phoenix terminal
• Power consumption: Full load power consumption: <22W

working environment

• Temperature: -40A-•85C
• Humidity: RH non-condensing

VLAN: Port-based VLAN:./4K

Multicast:IGMP Snooping: vl

Industrial Ring Network:ERPS 20ms

Qos:

• 802.1 priority: 4 queues
• Queue scheduling: WRR
• DSCP priority
• Port priority

Safety features

• 802. lx authentication
• MAC number limit
• MAC address filtering
• Data control Port speed limit

ACL

• Based on IP
• Based on MAC
• e Port-based VLAN

Management method

• 1Pv6/lPv4: IPv4
• Console: RJ45
• Telnet
• Web management
• SNMP management: vl
• ORMON: 1,2,3,9
• SSH/SSL
• software upgrade:HTTP
• Configuration export and import
