Product Features

• Support Auto-MDIX, and full/half duplex self-negotiation mode
• Provide SCIFC/ST/LC interface fiber port, support single/dual fiber transmission
• Support 10K bytes giant frame, compatible with various extension protocol
• 8K MAC address table
• Support IEEE802.3az energy efficient Ethernet technology
• Electric 8KV surge protection, easy to use in outdoor environment
• Complete status indicator, working state at a glance
• e Power input polarity protection design, no worry about wrong operation
• Aluminum case, no fan design

Ethernet Interface

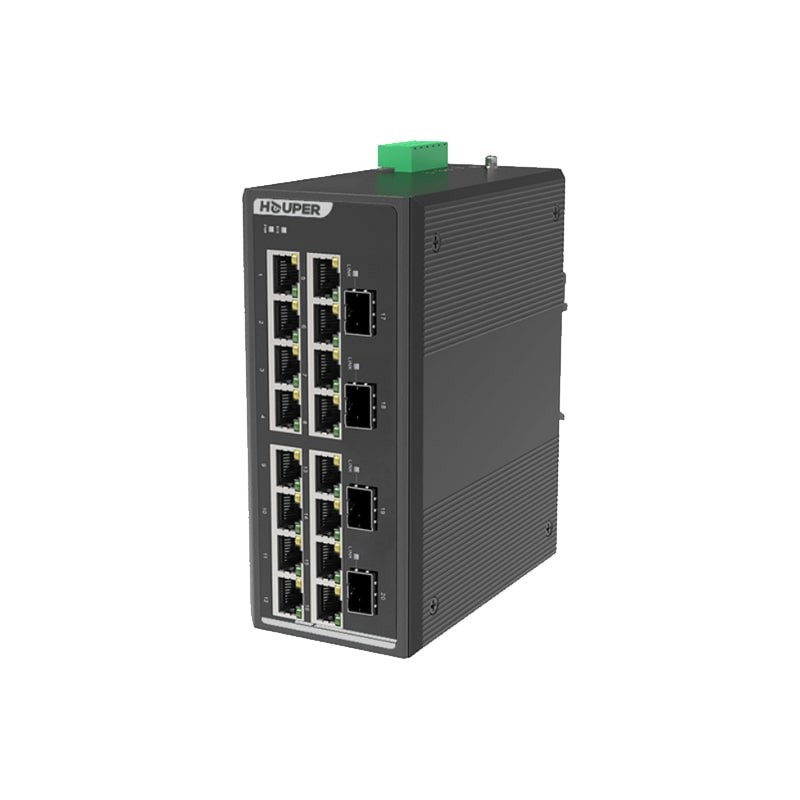

• RJ45 Port and Speed: 16x10/100/1000Base-TX
• Fiber Port and Speed: 1000Base-FX SFP

Ethernet Standards

• IEEE802.3 IEEE802.3u IEEE802.3z
• IEEE802.3ab IEEE802.3x IEEE802.3az
• e IEEE802.3ah IEEE802.1X
• e IEEE802.1Q

Packet Buffer

Maximum Packet Length

• Up to 10K

MAC Address Table

• 08K

Transmission Mode

• Store and Forward (full/half duplex mode)

Exchange Property

• Delay time: < 7gs
• Backplane bandwidth: 56Gbps; Packet forwarding rate: 29.76Mpp

Power Supply

• PoE Standard: 16x IEEE 802.3af/lEEE 802.3at PoE
• Power Access Mode: Phoenix terminal, DC seat
• Redundant Power Input: DC 9-56V
• Overload Protection: Yes
• Power Reverse: Support

Physical Property

• AAAA Protection Grade: IP40 aluminum case
• Cooling Mode: Natural cooling, no fan design
• Dimensions: 160mm x 140mm x 75mm (L x W x H)
• Installation Mode: DIN trail/wall-mountable
• Weight: 1.05kg (With PoE: 1.1kg)

Environmental

• Operating Temperature: -400C¯750C
• Operating Humidity: 50/0 & non-condensing
• Storage Temperature: -400C¯850C
• MTBF: 500,000 hours

Software Features

Redundant network

• STP, RSTP, MSTP, IT-T G.8032 Ethernet Ring Protection Switching (ERPS) for
• redundant cabling ERPS/ Ring for Redundant Cabling,
• recovery time<20ms in
• 250 devices

Multicast

• IGMP snooping VI/V2/V3

VLAN

• IEEE 802. IQ 4K VLAN, GVRP, GMRP, QINQ

Link Aggregation

• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation

Management Function

• CLI, Web based management, SNMP vl/v2c/v3,TeInet/SSH server for management

Diagnostic Maintenance

• Port mirroring, Ping

Alarm management

• 1 way relay alarm output, RMON, SNMP Trap RMON, MIB II, Port mirroring, Event syslog, DNS, SNTP, IEEE 802. lab LLDP

Security

• DHCP Server/CIient/ReIay option 82/Snooping User hierarchical management

Flexibility security

• Port based and MAC based IEEE 802.1X, ACL, HTTP/HTTPS, SSUSSH v2 Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x,half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multi cast suppression and Unknown-Unicast suppression Software upgrade via HTT
