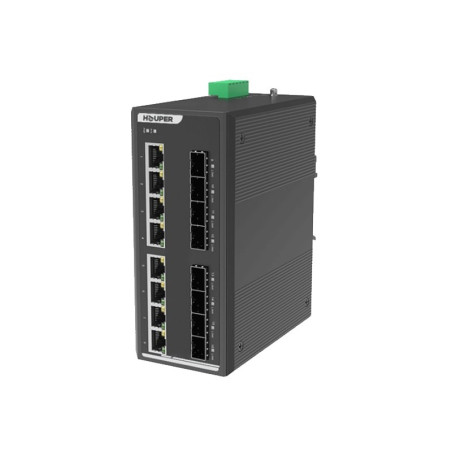

HOP3412S1216-8TP network managed industrial Ethernet switch with 8 Gigabit and 8 optical
  • HOP3412S1216-8TP network managed industrial Ethernet switch with 8 Gigabit and 8 optical

HOP3412S1216-8TP network managed industrial Ethernet switch with 8 Gigabit and 8 optical

$456.00

HOP3412S1216-8TP Gigabit 8-optical 8-channel network managed industrial Ethernet switch is an industrial ring network switch product independently developed by  Houper specifically for the field of industrial control. This product supports the international standard IEEE 802.3D/W/S standard. STP/RSTP/MSTP protocols, as well as rich network management functions, can provide stable and reliable Ethernet transmission with high-quality design and reliability.

Quantity

It can provide users with and realize Ethernet data exchange, aggregation and remote optical transmission of efficient bandwidth and reliable optical fiber network solutions. This product has the characteristics of small size, fanless, low power consumption, high reliability, good stability and easy maintenance. industrial-grade Ethernet switch products adopt mature technology and open network standards, adapt to low and high temperatures, have strong resistance to electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, and are equipped with redundant dual DC power supplies, which can provide critical equipment that needs to remain connected at all times. Redundancy mechanism. It also operates in the standard operating temperature range -40 to 750C. Industrial switches support DIN rail or wall mounting and feature IP40 protection, making them perfect for harsh environments such as industrial networks and intelligent transportation systems (ITS). They are also suitable for many military and utility market applications where environmental conditions exceed those of commercial products. Specification.

Model: HOP3412S1216-8TP

Ethernet Interface

  • Switch Properties: Electrical Port: 0<10/100/1 OOOBASE-TX, RJ45
  • Optical Fiber : 8x1000BASE-X(SFP)
  • Backplane Bandwidth:56Gbps
  • MAC Table Size: 8K
  • Jumbo Frame: 10K Bytes
  • e Packet Buffer: 4M

  • POE (Option) :Standard 802.3at
  • Port : 8
  • Power: 30W

Physical Characteristics

  • Dimensions:160x132x70 mm
  • Weight: 100g
  • Housing: Aluminum, IP40 Rating
  • Installation: Din Rail/ Wall Mounting

Power Supply:

  • Input: Redundant power supply, 9-56V DC
  • Interface: 6 PIN Phoenix terminal
  • Consumption Full Load : <22W

Operating Environment

  • Operating Temperature:-40 to 750C(-40 to 1850F)
  • Ambient Relative Humidity: 5 to 90%(non-condensing
  • Based VLAN: VID 1 to 4094

  • Support IEEE 802.3af/at/bt POE Standard, without damaging not-PoE devices.
  • Multicast: IGMP Snooping STP STP(802.1 D), RSTP(802. lw), MSTP(802. Is)
  • QoS:  802. Ip Priority: 4 queues
  • Queue Scheduling: WRR
  • DSCP Priority
  • Port Priority
  • Rate Limitation
  • Security 802. Ix Security: RADIUS, MAC Filtering IP Based, MAC Based, Port Based
  • Management: IPv4- CLI- Telent- Web- SNMP:v1 RMON•.I SSH/SSL- Software
  • Upgrade :HTTP- Configuration:lmpowexport- Sys Log
switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
8
Port speed
1G , 10/100/1000BASE-T
Uplink port
8
Uplink Port speed
1G , 10/100/1000BASE-T
type of ports
copper RJ45
type of uplink ports
SFP
Power over Ethernet
Yes
Type of POE
POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
Layer of switch
VxLAN , VLAN
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC
Operation temperature
-40 / +75 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 8
Port speed 1G, 10/100/1000BASE-T
Uplink port 8
Uplink Port speed 1G, 10/100/1000BASE-T
type of ports copper RJ45
type of uplink ports SFP
Power over Ethernet Yes
Type of POE POE, POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W
Layer of switch VxLAN, VLAN
IP version IPV4, IPV6
Switch power consumption 9-56VDC
Operation temperature -40 / +75 C
