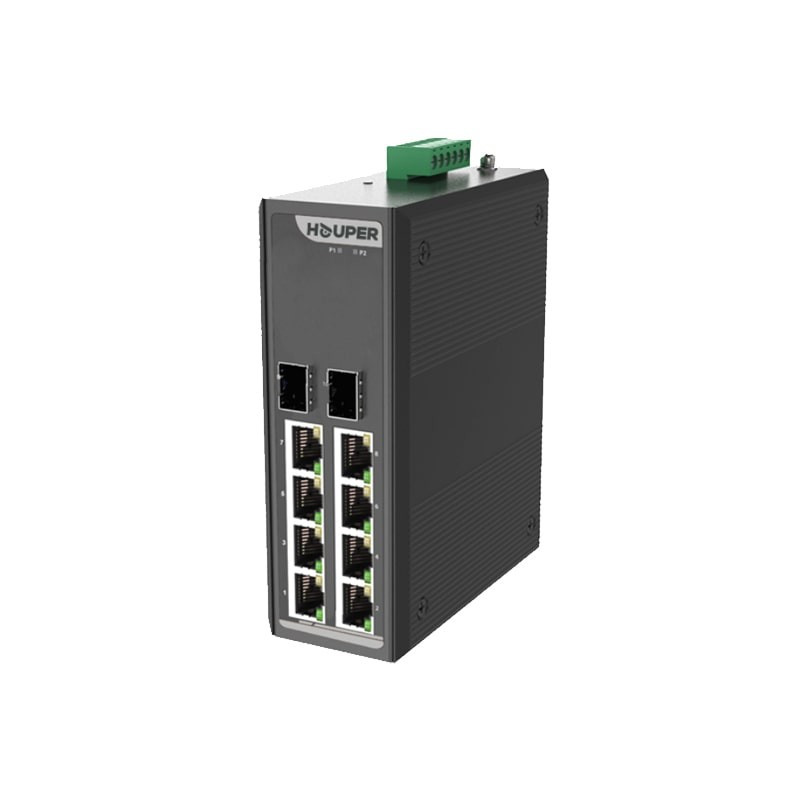

HOP3412S1210-2TP OUTDOOR POE Unmanaged Switch with 8XGE and 2XGE SFP
$165.30
Overview: OUTDOOR POE SWITCH The Unmanaged Industrial POE Switch is designed for small and medium industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch's robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports. The models are available in both non-PoE and POE versions and can power the latest high-powered POE devices over a wide industrial operating temperature range.
Product Features
- Support IEEE 802.3af/at/bt POE Standard, without damaging not-PoE devices.
- Support up to 8 ports x 10/1 OOBase-T or 10/100/1 OOOBase-T
- Full/Half-duplex self-adaptation
- MDI/MDIX automatic recognition
- Jumbo Frame up to 9K, 20G backplane bandwidth
- Operating temperature -40C to 75C
- Wide-range DC9¯56V power input
- Support power input polarity protection; no worries about the reverse connection
- All-Aluminium shell, fanless design
- Free fall, shock-proof and vibration-proof for industries
- Plug and play; no software configuration.
Ethernet Interface
- 8x 10/100/1000Base-TX Port(RJ45)
- 2x1000Base-X(SFP/1
Port Mod e(Tx)
- Auto-Negotiation
- Full/HaIf Duplex Mode
- Auto MDI/MDI-X Connection
Standards
- IEEE 802.3 for IOBaseT
- IEEE 802.3u for Fast Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3x for flow control and back pressure
- IEEE802.3az for Energy Efficient Ethernet(EEE)
Packet Buffer Size
- 02M
Maximum Packet Length
- MAC Address Table"
- 04K
Transmission Mode
- Store and Forward (full/half duplex mode)
Exchange Property
- Delay time: < 7gs
- Backplane bandwidth: 20G
Power Supply
- PoE Pons
- Port 1 to 8 IEEE802.3af/at @PoE+
Power Supply Pin
- Default: 1/2(+), 3/6(-)
Max Power Per Port
- 30W
Total PWR [Input Voltage
- 240W(DC48-56V) (Model dependent)
Power Consumption
- 10 Watts Max(without POE load)
- Power Inputs:2
Input Voltage
- 9-56VDC, Redundant dual inputs
Operating Voltage
- Non-PoE Mode: 9-56VDC
- 30W PoE Mode: 48-56VDC
Connector
- I removable 6-contact terminal blocks
- Pin 1/2 for Power I, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
Protection Overload
- Current Protection, Reverse Polarity Protection
Physical Characteristics
- Housing
- Aluminum case
IP Rating
- IP40
Dimensions
- 138mm x 108mm x 49mm (L x W x H)
Environmental
- Operating Temperature to 750C
Operating Humidity
- 5%¯85% (non-condensing)
Storage Temperature
- 0-400C¯850C
MTBF
- 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation
- 34 BTU/h (Non-PoE Mode) 853 BTU/h (with 240W PoE Load)
Cooling
- Passive Cooling, Fanless Design
Installation
- DIN Rail/Wall Mount
Weight
- 680g
Noise
- Level 0 dBA
switch
100 Items
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 8
- Port speed
- 1G , 10/100/1000BASE-T
- Uplink port
- 2
- Uplink Port speed
- 1G , 10/100/1000BASE-T
- type of ports
- copper RJ45
- type of uplink ports
- SFP
- Power over Ethernet
- Yes
- Type of POE
- POE , POE+ , POE++ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W , IEEE 802.3bt - 60.0W
- Layer of switch
- Layer 2
- Switch power consumption
- 9-56VDC , 200-300W , 14.6W
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 8 |
| Port speed | 1G, 10/100/1000BASE-T |
| Uplink port | 2 |
| Uplink Port speed | 1G, 10/100/1000BASE-T |
| type of ports | copper RJ45 |
| type of uplink ports | SFP |
| Power over Ethernet | Yes |
| Type of POE | POE, POE+, POE++, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W, IEEE 802.3bt - 60.0W |
| Layer of switch | Layer 2 |
| Switch power consumption | 9-56VDC, 200-300W, 14.6W |
| Operation temperature | -40 / +75 C |
