FS Datacenter switch NC8400-4TH 128*100Gb & 128*40Gb

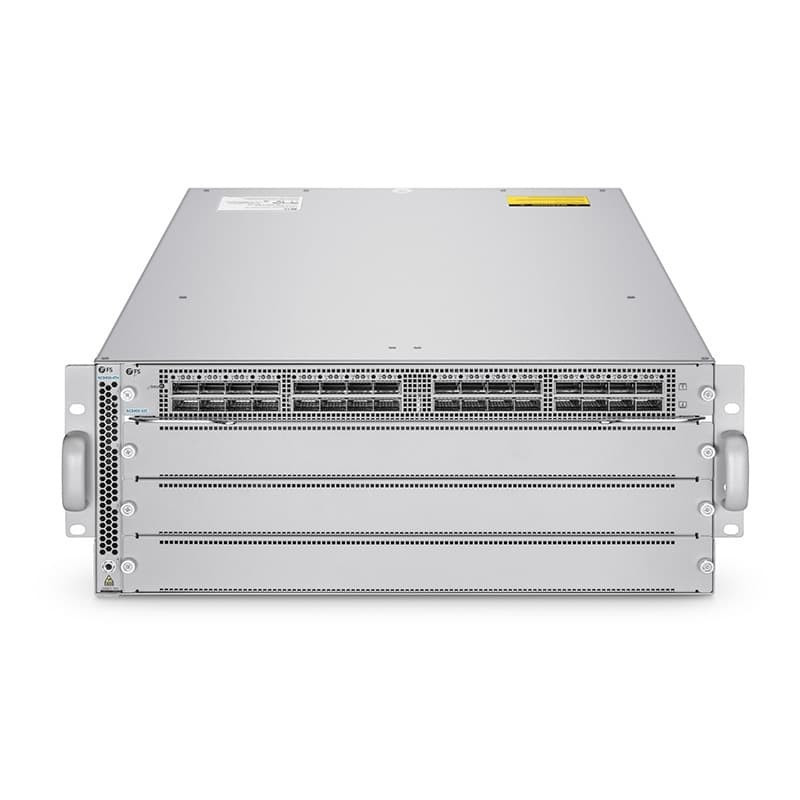

NC8400-4TH, 4-Slot 4U Ethernet L3 Data Center Chassis Switch Unloaded, Supports 4x 40/100/400Gb Line Cards, Supports MLAG, Broadcom Chip

The NC8400-4TH switch supports a maximum of 128x 40G/100G, or 64x 40/100G with 16x 400G high-density ports through flexible line cards combinations of NC8400-32C and NC8400-16CD. It's optimal for spine deployments in large data centers, HPC, service providers and cloud providers.

The switch employs an advanced cache scheduling mechanism to maximize the device's cache capability. With PFC and ECN to implement the low-latency, zero packet loss, high throughput and service forwarding rate, ensuring non-blocking transmission in the increasingly demanding data center environment.

Quantity

Configurator



Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next






next







components list


SFP type
Not selected
Power and Fans
Not selected
Delivery
Not selected
Discount: $
Product with this customization

$0.00

x
You must fill all the customization options before to make the order

Specifications

Product Highlights

Flexible 40/100/400GbE Interface Speeds

Support MLAG, BGP4/BGP4+, REUP, GR, BFD

Low-latency, Zero Packet Loss with PFC, ECN, RDMA over Converged Ethernet (RoCE)

2+2 Hot-swappable Power Supplies, 5+1 Smart Fans

Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools

Support SPAN/RSPAN/ERSPAN and In-band Network Telemetry (INT) for Visibility

Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security

Support SNMP v1/v2c/v3, CLI, Telnet, SSH

Features

Network Solutions

High-Performance Computing DC

Provide continuous high-throughput network for HCP, AI training and more. Ideal for IDC hosting, entertainment, education, research, finance, and other industries.

Data Center Security Resource Pool

The security devices form a resource pool, and various services in the data center are drained on demand, fully protecting traffic security and ensuring efficient use of resources.

Data Center Interconnect (DCI) Layer 2

Deploying VxLAN through DCI equipment provides Layer 2 interconnectivity between data centers across regions, enabling flexible deployment and migration of business across regions.

Flexible Port Combination with Multi-Rate Line Cards

A 4U chassis with 4 slots, supports a maximum of 128x 40/100G or 64x 40/100G, 16x 400G high-density full line rate ports, which better meet the demands of bandwidth-intensive applications.

2+2 Redundant Power Supplies and Smart Fans

Ship with four power supplies and smart fans by default, provide high availability and longevity.

5+1 Hot-swap Fans

Variable-speed fans for superior cooling, noise and power reduction

2+2 Dual AC PSU

PSUs can be removed/replaced without shutting down the system

MLAG Enhances System Reliability

MLAG virtualization technology realizes load balancing and improves link reliability. Supports device-independent upgrades to ensure second-level upgrades for services.

Datacenter Switch

Data sheet content

Switch-Router

Type of switch
Data center
Number of ports
4 , 16 , 128 , 64
Port speed
40G , 100G , 400G
Uplink port
4 , 16 , 64
Uplink Port speed
40G , 100G , 400G
Power over Ethernet
No
Layer of switch
Layer 2 , Layer 3 , VxLAN
IP version
IPV4 , IPV6
Switch Management
RFC1213 SNMP , WEB base , CLI Command line , Telnet , SSHv2 , SSHv1
Switch power consumption
1950-2100W
Switch Capacity
25.6W
Redundant power and fan
Modular design of power supply and fan , hot swappable , fan speed control and alarm detection

16 other products in the same category

Specifications

Switch-Router

Type of switch Data center
Number of ports 4, 16, 128, 64
Port speed 40G, 100G, 400G
Uplink port 4, 16, 64
Uplink Port speed 40G, 100G, 400G
Power over Ethernet No
Layer of switch Layer 2, Layer 3, VxLAN
IP version IPV4, IPV6
Switch Management RFC1213 SNMP , WEB base, CLI Command line , Telnet , SSHv2, SSHv1
Switch power consumption 1950-2100W
Switch Capacity 25.6W
Redundant power and fan Modular design of power supply and fan, hot swappable, fan speed control and alarm detection
