FS Datacenter switch NC8200-4TD with 32*100G & 64*40G & 128*25G

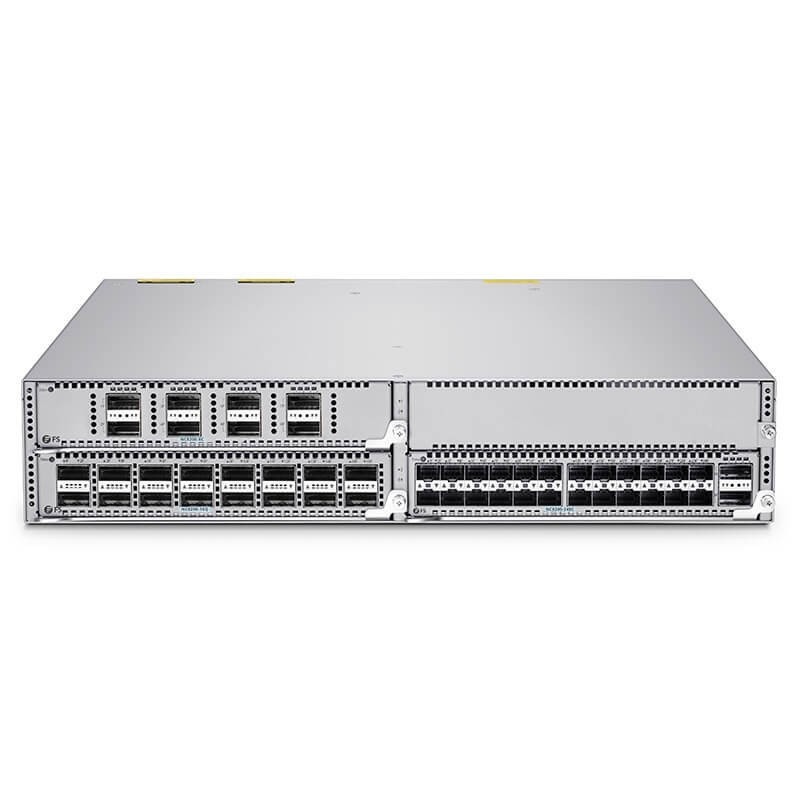

NC8200-4TD, 4-Slot 2U Ethernet L3 Data Center Chassis Switch Unloaded, Supports 4 x 25/40/100Gb Line Cards, Support MLAG/Stacking, Broadcom Chip, FSOS Installed

The NC8200-4TD switch supports a maximum of 96x 25G with 8x 100G, 64x 40G, or 32x 100G high-density full line rate ports through flexible line cards combinations of NC8200-8C, NC8200-16Q and NC8200-24BC. The NC8200-4TD can operate as leaf and spine switch for medium-sized data centers and cloud-computing data centers deployments.

The switch employs an advanced cache scheduling mechanism to maximize the device's cache capability. With PFC and ECN to implement the low-latency, zero packet loss, high throughput and service forwarding rate, ensuring non-blocking transmission in the increasingly demanding data center environment.

Quantity

Configurator



Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next






next







components list


SFP type
Not selected
Power and Fans
Not selected
Delivery
Not selected
Discount: $
Product with this customization

$0.00

x
You must fill all the customization options before to make the order

Specifications

Product Highlights

Flexible 10/25/40/100GbE Interface Speeds

Support MLAG/Stacking, BGP4/BGP4+, REUP, GR, BFD

Low-latency, Zero Packet Loss with PFC, ECN, RDMA over Converged Ethernet (RoCE)

1+1 Hot-swappable Power Supplies, 2+1 Smart Fans

Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools

Support SPAN/RSPAN/ERSPAN and In-band Network Telemetry (INT) for Visibility

Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security

Support SNMP v1/v2c/v3, CLI, Telnet, SSH

Features

Network Solutions

Data Center Content Delivery

Replacing the border routers of CDN egress network with switches can ensure bandwidth quality, reduce traffic operation costs, and improve bandwidth operational efficiency.

Cloud Data Center VXLAN

Support different tenants and services to share network resources, while providing security isolation and on-demand interconnection to improve network utilization and scalability.

Data Center Interconnect (DCI) Layer 2

Deploying VxLAN through DCI equipment provides Layer 2 interconnectivity between data centers across regions, enabling flexible deployment and migration of business across regions.

Data Center Security Resource

The security devices form a resource pool, and various services in the data center are drained on demand, fully protecting traffic security and ensuring efficient use of resources.

Port Combination with Switch Chassis

A 2U chassis with 4 slots, supports a maximum of 96x 25G with 8x 100G, 64x 40G, or 32x 100G high-density full line rate ports, which better meet the demands of medium-sized data centers.

NC8200-8C

Up to 32x 100G ports

NC8200-16Q

Up to 64x 40G ports

NC8200-24BC

Up to 96x 25G, 8x 100G ports

Dual Redundant Power Supplies and Smart Fans

Ship with dual power supplies and smart fans by default, provide high availability and longevity.

2+1 Hot-swap Fans

Variable-speed fans for superior cooling, noise and power reduction

1+1 Dual AC PSU

PSUs can be removed/replaced without shutting down the system

Stacking Simplifies Network Configuration

Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.

2 Units

Virtual stacking

200Gbps

Stacking bandwidth

50ms

Fault recovery

LACP

Uplink aggregation

MLAG Enhances System Reliability

MLAG virtualization technology realizes load balancing and improves link reliability. Supports device-independent upgrades to ensure second-level upgrades for services.

Datacenter Switch

Data sheet content

Switch-Router

Type of switch
Data center
Number of ports
32 , 128 , 64
Port speed
10G , 25G , 40G , 100G
Uplink port
4
Uplink Port speed
10G , 25G , 100G
Power over Ethernet
No
Layer of switch
Layer 2 , Layer 3 , VxLAN
IP version
IPV4 , IPV6
Switch Management
RFC1213 SNMP , CLI Command line , Telnet , SSHv2 , SSHv1
Switch power consumption
600-650W
Switch Capacity
6.4T
Redundant power and fan
Modular design of power supply and fan , hot swappable , fan speed control and alarm detection

16 other products in the same category

Specifications

Switch-Router

Type of switch Data center
Number of ports 32, 128, 64
Port speed 10G, 25G, 40G, 100G
Uplink port 4
Uplink Port speed 10G, 25G, 100G
Power over Ethernet No
Layer of switch Layer 2, Layer 3, VxLAN
IP version IPV4, IPV6
Switch Management RFC1213 SNMP , CLI Command line , Telnet , SSHv2, SSHv1
Switch power consumption 600-650W
Switch Capacity 6.4T
Redundant power and fan Modular design of power supply and fan, hot swappable, fan speed control and alarm detection
