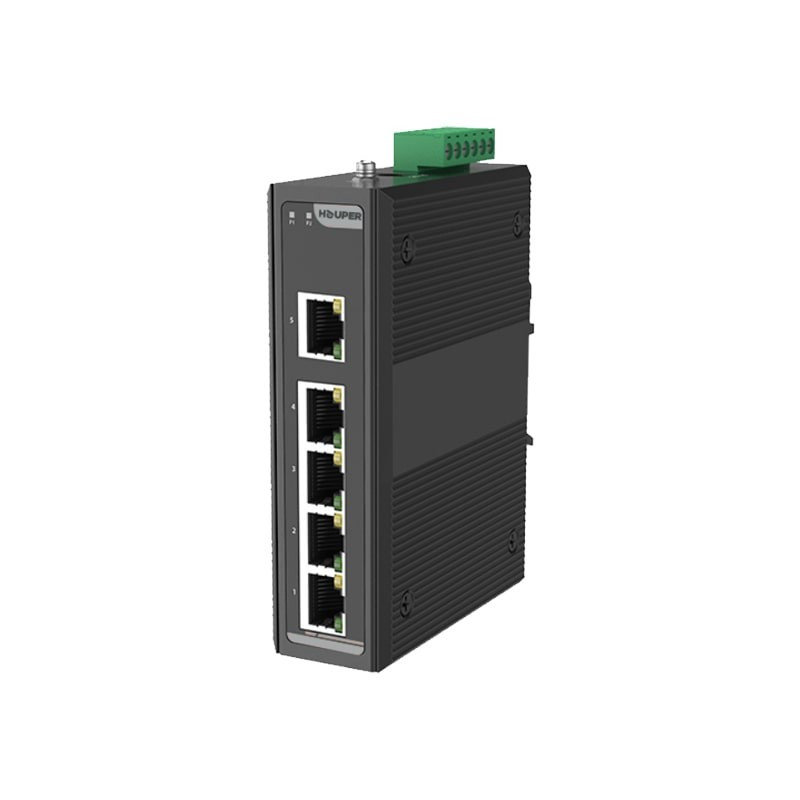

5 PORT GE POE++ UNMANAGED INDUSTRIAL ETHERNET SWITCH HOP3412S125TM
  • 5 PORT GE POE++ UNMANAGED INDUSTRIAL ETHERNET SWITCH HOP3412S125TM

5 PORT GE POE++ UNMANAGED INDUSTRIAL ETHERNET SWITCH HOP3412S125TM

$68.40

The Unmanaged Industrial Ethernet Switch is designed for small business industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can optionally be mounted on a DIN-Rail or Wall Mount, making it suitable for various installation methods. An LED monitor displays information from Ethernet-connected devices such as IP cameras, wireless access points, or PC laptops

Quantity

Product Features

All-aluminum Case, Compact and Fan less Design

Support up to 5 ports 1000Base-T

Full/Half-duplex self-adaptation

MDI/MDIX automatic recognition

Support IEEE 802.3af/at/bt POE Standard, without damaging not-PoE devices.

Operating Temperature from -40 to 75C

Dual Redundant DC9¯56V power input

Support power input polarity protection; no worries about the reverse connection

Aluminum shell, fanless design

Free fall, shock-proof and vibration-proof for industries

Plug and play; no software configuration is needed

Either DIN rail or Wall Mount Installation

Model: HOP3412S125TM

Ethernet Interface

ports

OOO Base-TX Port(RJ45)

Port Mode(Tx)

'Auto-Negotiation Speed

Full/Half Duplex Mode

'Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for IOBaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size

0512M

Maximum Packet Length

9K

MAC Address Table

04K

Transmission Mode

'Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7gs

Backplane bandwidth: 1.25G

Model: HOP3412S

POE & Power Supply

PoE Pons

Port 1 to 4 IEEE802.3af/at @P0E+

Power Supply

Pin Default: 1/2(+), 3/6(-)

Max Power Per Port

30W

Total PWR [Input Voltage

120W(DC48-56V) (Model dependent)

Power Consumption

.3 Watts Max(without POE load)

Power Inputs: 2

Input Voltage:

9-56VDC,Redundant dual inputs

Operating Voltage

Non-P0E Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(lEEE802.3bt model)

Physical Characteristics

Housing

Aluminium case

IP Rating

IP40

Dimensions

120mm x 90mm x35mm (L x W x H)

Model: HOP3412S125TM

Environmental

Operating Temperature

(-40 to 1670F)

Operating Humidity

(non-condensing)

Storage Temperature

.-400C¯850C (-40 to 185 OF)

Heat Dissipation

10 BTU/h (Non-P0E)

0420 BTU/h (30W POE)

1260 BTU/h (90W POE)

Installation

• DIN Rail/Wall Mount

Weight

350g(without POE)

Cooling

Passive Cooling

switch
100 Items

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
4 , 5
Port speed
1G , 10/100/1000BASE-T
Uplink port
1
Uplink Port speed
1G , 10/100/1000BASE-T
type of ports
copper RJ45
type of uplink ports
copper RJ45
Power over Ethernet
Yes
Type of POE
POE , POE+ , POE++ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W , IEEE 802.3bt - 60.0W , IEEE 802.3bt - 99.9W
Layer of switch
Layer 2
Switch power consumption
9-56VDC , 127-130W
Operation temperature
-40 / +85 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 4, 5
Port speed 1G, 10/100/1000BASE-T
Uplink port 1
Uplink Port speed 1G, 10/100/1000BASE-T
type of ports copper RJ45
type of uplink ports copper RJ45
Power over Ethernet Yes
Type of POE POE, POE+, POE++, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W, IEEE 802.3bt - 60.0W, IEEE 802.3bt - 99.9W
Layer of switch Layer 2
Switch power consumption 9-56VDC, 127-130W
Operation temperature -40 / +85 C
