RH56V-Zik FAN

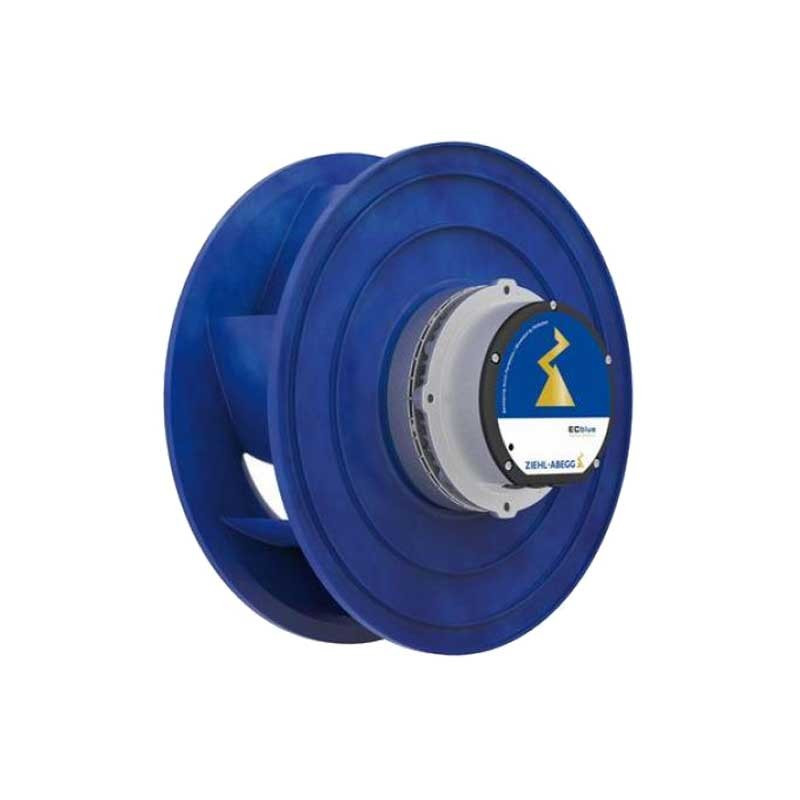

This is a fan with RH56V-Zik Part Number and an EC motor technology engine that operates in three phases of alternating current with a voltage of 380-480 volts. The rated voltage of UN is 3 ~ 380-480 volts and the FN's rated frequency is 60.50 Hz. The PSYS input power is 2.60 kW and the rated flow current is between 4.20 and 3.40 amps. The nN's rated speed is 1410 rpm. The thermal class of motor is thcl155, and the ambient temperature of the TR is at -15 ° C, and the maximum ambient temperature of the TR in the NMAX is 60 ° C. The electric connection is integrated to the controller, and its protection class is IP54.

Quantity

 The motor protection is done with integrated active temperature management. The blade of the composite material is high -performance, with no coating and blue. This product is compatible with ERP 2015 and CE standards. The performance of ηstata is 64.1. Among the Datacenter Cooling products with the Schneider brand, this is a widely used fan, for example, we can mention the Datacenter Schneider crack fans and its spare parts.
