Output port optional: LC connector 32 ways optional.

Optional WDM, realize the function of three networks in one;

Optional GSM module, mobile phone remote monitoring EDFA running status function;

Optional optical transmitter, easy to achieve a multi-purpose device;

Optional optical switch support optical input backup function;

The front panel can be flexibly removed and replaced according to the number of output ports.

Remove the traditional physical indicator and display the EDFA running status in an alarm dialog box ;

The total output power is optional: the highest total output power is 6.5W (38dBm) ;

The perfect network management interface, conforms to the SNMP network management protocol, WEB interface is rich in functions;

It adopts the mature dual power hot backup structure, with the intelligent temperature control system controlled by microcomputer to improve the reliability of the system

effectively；

Output power +0.5~-4dB adjustable;

 Applications

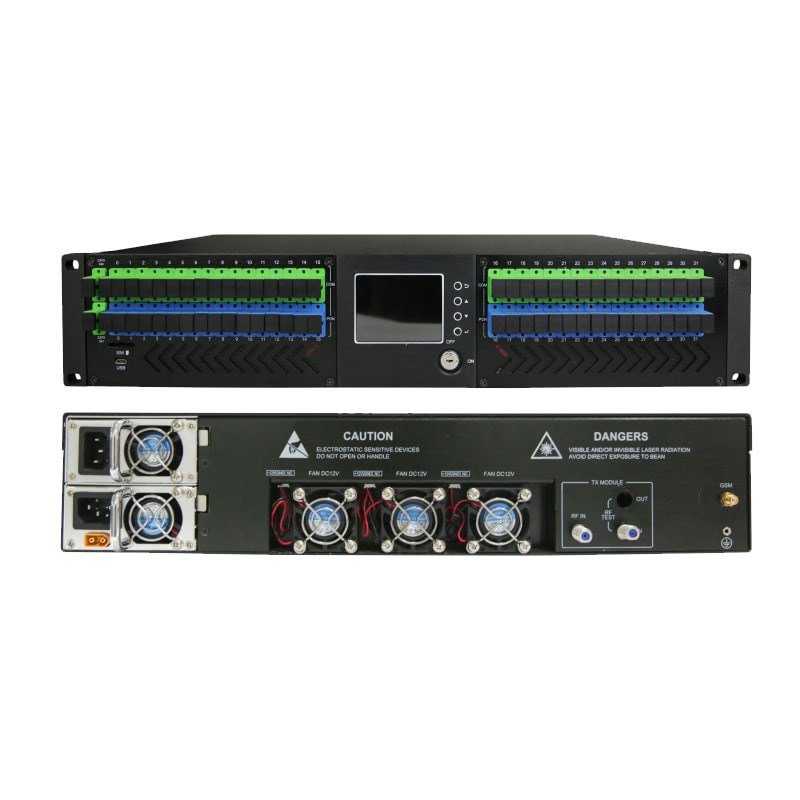

The EDFA-8080 series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). It provides a flexible, low-cost solution for large- scale FTTH coverage of CATV systems in large and medium-sized cities.
