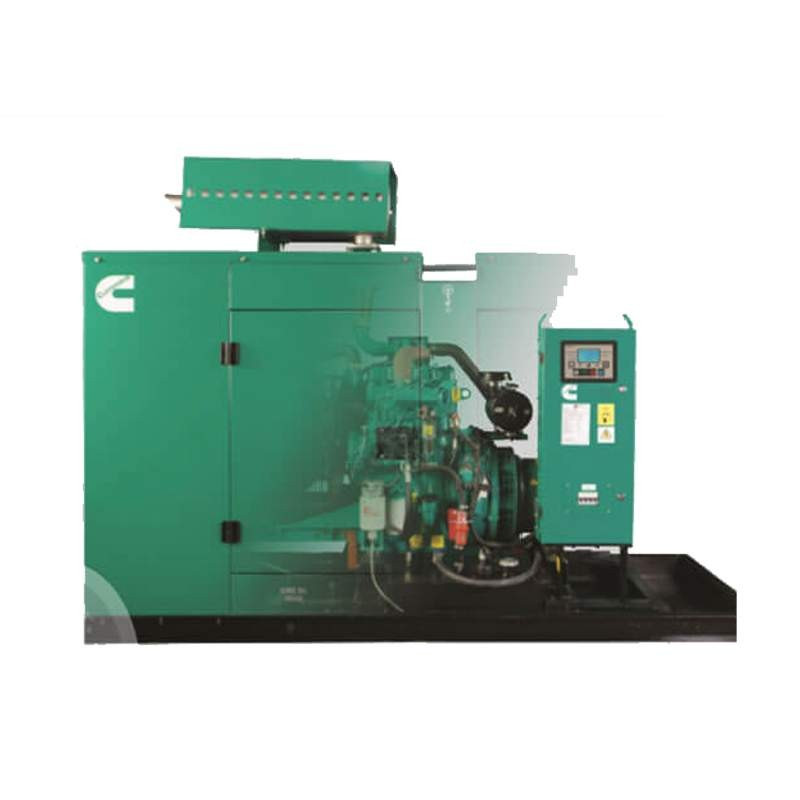

35KVA CUMMINS DIESEL GENERATOR ,C35D5P

Latest Technology and Unmatched Performance

• The Cummins® X2.7  series rugged engine and world class Stamford alternator powered diesel generator set

• Advanced in-cylinder technology to meet latest emission norms without any after-treatment device.

• Best in class transient response  with 100% block loading capacity

 • Smart aesthetic and superior finish

 • Compact in size with optimum power to weight ratio

Environment Friendly Power

• Class defining technology engine is designed to meet stringent exhaust emission tests as per revised MoEF norms, thus offering environment friendly power.

 • The Cummins® diesel generator sets are available with the lowest noise levels in its range

Lowest Operating Cost and Comprehensive Warranty

• Highly reliable and durable product

• All elements are designed to work together to maximize efficiency even at part loads, offering the advantage of lowest operating costs.

• 500 Hours/ 1 year service interval

• Industry acknowledged best-in-class comprehensive warranty on the entire package including rubber components

Single Source Power Assurance

• All the major components – the engine, alternator, control system and canopy are designed, manufactured and tested by Cummins India.

• Best and largest customer support network in India, capable of providing round-the-clock service and spares support

• All these things put together, Cummins® offers you SINGLE SOURCE POWER ASSURANCE

Engine

• Cummins® X series, 3 cylinder, In-line 4 stroke, radiator cooled engine

• Well designed air handling system with

— Dry type, Replacable paper element air cleaner with restriction indicator

 — Air to air aftercooling for 35kva

— Optimised turbocharger for increased altitude capabilities

• Best in class fuel economy with

— Inline fuel pump with A1 class mechanical governing

— Spin on fuel filter

• Standard integral set-mounted radiator system, designed and tested for 45°C ambient temperatures

• Full flow spin on lube oil filter

• First fill of lube oil and coolant

• Electrical starter motor with soft start engagement feature

• Battery charging alternator

• 1 X 12 V DC battery

Alternator

• Stamford S1L2 alternator frames from cummins Generator Technologies

• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC 60034-1

• Dedicated winding specially designed for 3 phase operation

• Better motor starting capability

• Best in class efficiency

• Compact design with sealed bearings for longer life and lesser maintenance

• Impregnation on all wound components for better mechanical strength

Control Panel

Control panel is manufactured with 14/16 gauge CRCA sheet and is powder coated for weather-proof and long lasting finish. The control panel consists of the following parts:

• PSO600 controller

• Aluminum bus bars with suitable capacity with incoming/ outgoing terminals

• Indicating lamps for ‘Load ON’ and ‘Set Running’

• Instrument fuses duly wired and ferruled

• Circuit breakers of suitable rating with overload and short circuit protections

PSO600 Features

Cummins PowerStart™ PSO600 control is a microprocessor based generator set monitoring and control system. AMF Functionality is inbuilt and this control includes an intuitive operator interface that allows for complete generator set control as well as system metering, fault annunciation, configuration, and diagnostics.

• AMF Functionality

• Intuitive operator interface which includes LED backlit 128X64 pixel graphic display with tactile feel soft-switches. Indications - Generator set, Utility Status Lamp.

• Remote start-stop

• Engine Metering: Oil pressure, Engine temperature, Starting battery voltage, Engine running hours

• AC Alternator Metering: L-L Voltage and L-N Voltage, Current (phase and total), kVA (phase and total) and Frequency. kwh, Total & per phase (kw & kVA), PF, Utility Voltage and Freq.

• Engine Protection: Low lube oil pressure, High/Low coolant temperature, Battery Over/Under/Weak Volts, Fail to Crank/ Start, Sensor failure, Cranking lockout, Low fuel level.

• AC Alternator Protection: Over/Under Voltage, Over/Under Frequency, Loss of AC sensing. Overspeed, Over Current.

• Data Logging: Engine hours, Control hours and upto 5 recent fault codes

• Configurable glow plug control

• 12/24 Volt DC operation

• Sleep mode

• Modbus interface (RS485 RTU)

• InPower compatible (PC based service tool)

• Certifications - meets the requirement of relevant ISO, EN, Mil Std. and CE standards

• Maintenance due alarm based on Engine Run Time and due date

• Exercisor scheduler

Silencer

• Critical grade silencer suitably optimized to meet stringent sound emission standards laid down by MoEF / CPCB

Mounting Arrangement

• Engine and alternator are mounted on a common MS fabricated base frame with AVM pads.

• Base frame with integral fuel tank is provided with drain plug, air vent, inlet and outlet connection, level indicator and provision for cleaning

Optional

• Engine: Oil drain pump, Heavy duty air cleaner.

Acoustic Enclosure

• Specially designed to meet stringent MoEF/ CPCB norms of 75 dBA @ 1mtr at 75% load under free field conditions

• The acoustic enclosure is made of CRCA sheets in munsel green shade and a structural/ sheet metal base frame painted in black.

• High quality noise absorbant and fire-retardant grade acoustic Insulation material (P.U. Foam) complying to IS 8183

• Two point lifting for easy handling at customer site

• Designed to have optimum serviceability

• Air inlet louvers specially designed to operate at rated load

• Made on special purpose CNC machines for consistency in quality and workmanship

• 11 tank pretreatment process and UV resistant Powder Coating of all parts to withstand extreme environment

• Use of special hardware for longer life

• Flush styling - no projections

• Fluid drains for lube oil and fuel

• Fuel filling arrangement inside the enclosure
