XGPON 4GE,VOIP,USB,WiFi6 10G ONU
  • XGPON 4GE,VOIP,USB,WiFi6 10G ONU

XGPON 4GE,VOIP,USB,WiFi6 10G ONU

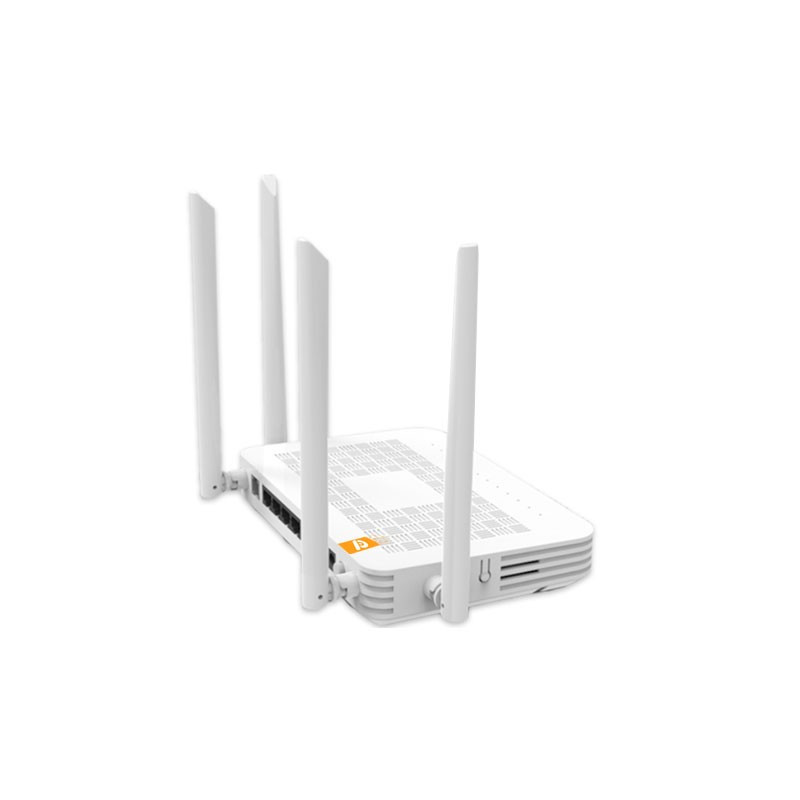

Houper HOUF-1297W smart ONT modem has XGPON technology, with 2.5 GB uplink and 10 GB download on a fiber optic to connect to OLT. With support for 6th generation wireless, 5 dB power on 2 x 2 MIMO antennas, 4 GB ports, one VOIP phone port, two USB ports with very advanced settings, it is one of the extraordinary smart modems internationally. The power of 5 dB antennas and MU-MIMO antennas in two bands of 2.4 and 5 GHz, and unique features such as wireless and Wi-Fi, make this modem a fantastic device. The telephone port of this modem has features such as call waiting, echo cancellation, unconditional call forwarding, call forwarding when busy, call forwarding in case of no answer, three-way call, fax, and even file sharing.

Quantity

One of the special advantages of Houper modems and OLTs is the exclusive firmware with the ability to integrate with all standard brands, including Nokia, Alcatel, Cisco, Huawei, Fiberhome, ZTE, and even local OLTs and ONTs of any country.

Features
Support 《Technical Specification for Intelligent Home Gateway of China Mobile》
Support JVM
Support the list of packages of Java SE Embedded compact1 profile
Support OSGi
Support China Mobile Intelligent Home Gateway Smart Plug-in and APP

XGPON
Supports upstream 2.48832bps and downstream 9.98328Gbps asymmetric rates.
Support G.984.3, G.987.3, G.989, IEEE 802.3, G.988 and other protocols;
Provide traffic management, QoS, multicast, encryption and decryption, service flow classification, bridging, NAT/NAPT, PPPoE, gateway processing and other service processing functions;

WiFi6
Complies with IEEE 802.11 a/b/g/n/ac/ax standards.
Supports 20/40M bandwidth in the 2.4G band and 20/40/80M bandwidth in the 5G band.
2T2R in 2.4G + 2T2R in 5G, supports up to 573+1201Mbps PHY rate.
MU-MIMO TX/RX support.
Supports MU-OFDMA TX/RX.
Can be configured as 2x2 MIMO A band, or 2x2 MIMO G band, or 2x2 MIMO A band + 2x2 MIMO G band.
Supports global Wi-Fi 5G channels, including the new band (5925MHz) in the US and China.
Integrated 2.4GHz/5GHz PA, LNA and TRSW.
Integrated power detector to support Tx power control per packet.
Built-in calibration of PVT variations

Services
Data

The HOUF-1297W ONT is delivered with 4 * 10/100/1000 Base-T interface, supporting:
Auto-negotiation and MDI/MDIX auto-sensing
Built-in layer-2 switch
Advanced data features such as VLAN tag manipulation, classification, and filtering
Built-in layer-3 routing and residential gateway
2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
USB x 2Video

The HOUF-1297W ONT supports video contents delivered in the form of data (by multicast or unicast).
Voice
Multiple voice codec
Echo Cancelling, VAD, CNG
Supporting static or dynamic jitter buffer
Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
MEGACO v2 (H.248)
To enable VoIP access, the HOUF-1297W ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.

Data sheet content

OLT-ONU

1.Type of device
ONT , ONU
1. Type of Use
General
1. Device protocol
EPON , GPON , XG-PON
1. Number of ONT POST port
1 , 2
1. Wi-Fi generation
802.11ax - Wi-Fi 6
1. Number Of ONT USB Port
1
1. Number of Access Port
4
1.Speed of access port
1G
1. Number of Uplink Port
1
1. speed of uplink port
10G , 1.2G-2.4G Gpon/Epon
1. Supported services
Hone application , HSI , Internet , IPTV , QOS , VOIP , VPN

16 other products in the same category

Specifications

OLT-ONU

1.Type of device ONT, ONU
1. Type of Use General
1. Device protocol EPON, GPON, XG-PON
1. Number of ONT POST port 1 , 2
1. Wi-Fi generation 802.11ax - Wi-Fi 6
1. Number Of ONT USB Port 1
1. Number of Access Port 4
1.Speed of access port 1G
1. Number of Uplink Port 1
1. speed of uplink port 10G, 1.2G-2.4G Gpon/Epon
1. Supported services Hone application , HSI, Internet, IPTV, QOS, VOIP, VPN
