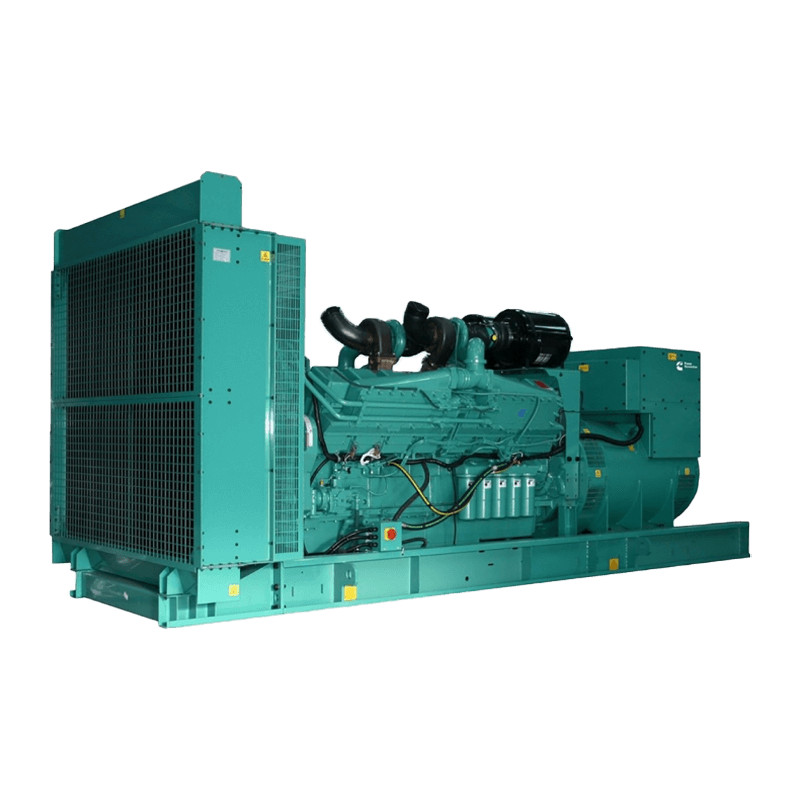

KTA50 Cummins Diesel Generator

Cummins KTA50 Diesel Generator is one of the most powerful and widely used diesel generators in the industry. It is equipped with a KTA50 diesel engine that includes 16 cylinders and a volume of 50 liters. It can produce electricity with a high output power, between 1120 and 1545 kW 60 Hz. With a modern and up-to-date design, this generator uses the best available components and technologies to deliver unparalleled performance.

The generator is available in various models. In addition, in silent operation and low noise mode, Cummins KTA50 diesel generator is suitable for use in places where silence and low noise is important. It is a reliable source of power to provide electricity at any place. Cummins parts are easy to maintain.

Quantity

Overall, Cummins KTA50 diesel generator with high power, strong performance and high reliability is a suitable choice for power supply in industrial and commercial environments.

Control System – PCC2100

The PowerCommand™ 2100 Control is a microprocessor-based generator set monitoring, and control system. The control provides an operator interface to the genset, digital voltage regulation, digital governing and generator set protective functions.

The PowerCommand™ 2100 generator set control is suitable for use on a wide range of generator sets in nonparalleling applications.

The PowerCommand™ Control can be configured for any frequency, voltage and power connection configuration from 120 to 600VAC for for 50Hz or 60Hz operation.

Power for the control is derived from the generator set starting batteries. The control functions over a voltage range from 8VDC to 35VDC.

Major Features

  • 12 or 24 VDC Battery Operation.
  • Digital Engine Speed Governing (optional) to provide isochronous frequency regulation.
  • Digital Voltage Regulation with 3-phase sensing.
  • AmpSentry™ Protection for true alternator overcurrent protection.
  • Digital AC Output Metering with Optional Analog Metering.
  • Battery Monitoring System to sense and warn against a weak battery condition.
  • Digital Alarm and Status Message Display.
  • Generator set Monitoring: Displays status of all critical engine and alternator generator set functions.
  • Smart Starting Control System: Integrated fuel ramping to limit black smoke and frequency overshoot.

Control System

Includes all functions to locally or remotely start and stop, and protect the generator set.

Control Switch - RUN/OFF/AUTO

OFF Mode - the generator set is shut down and cannot be started.

RUN mode the generator set will execute its start sequence.

AUTO mode, the generator set can be started with a start signal from a remote device.

LED Indicating Lamps – includes LED indicating lamps for the following functions:

Generator set running

Not-in-auto mode

Common warning

Five LED indicating lamps that are configurable for

colour and function

Low oil pressure warning

High engine temperature warning

Low oil pressure shutdown

Overspeed shutdown

Fail to start

Emergency Stop Switch. Immediate shut down of the generator set on operation.

Base Engine Protection:

Overspeed shutdown

Low Oil Pressure Warning / Shutdown

High Engine Temperature Warning / Shutdown

Underspeed / Sensor Fail Shutdown

Fail to Start / Fail to Crank

Low / high battery voltage

Options


Analog AC Metering Panel

Key Type Mode Selector Switch

Exhaust Temperature Monitoring

PowerCommand Network

CAN Engine Interface (Optional on Some Models)

Refer to the PowerCommand Controls Technical Bulletin

for detailed information (S1409d)

This Cummins® Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications.

Features

Cummins® Heavy-Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.

Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class F or H insulation.

Control System - Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection, output metering, auto-shutdown.

Cooling System - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.

Enclosures - Optional weather-protective and soundattenuated enclosures are available.

Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network.






Diesel Generator

Data sheet content

Diesel-engines

Control System
PCC2100
Available Voltages
(60 Hz) - 219/380 - 254/440 - 277/480 - 347/600 - 2400/4160 - 7200/12470 - 7620/13200 - 7970/13800 (50 Hz) - 220/380 - 230/400 - 240/415 - 254/440 - 1905/3300 - 3640/6300 - 3810/6600 - 6350/11000
Configuration
Cast iron , V 16 cylinder
Displacement
50 liter (3067in.3)
Fuel system
Direct injection
Standard cooling system
104°F (40 °C) ambient radiator ,
Fuel Type
Diesel
Frequency (Hz)
50 , 60
Output power (kW / kVA)
1000kVA - 1675kVA 1120kW - 1545kW
Lube oil filter type
Spin-on paper element full flow and bypass lube oil filters.
Starting voltage
24 volt , negative ground
Stroke
158.8 mm (6.25 in.)
Bore
158.8 mm (6.25 in.)
Battery capacity
1800 amps at ambient temperature 32°F (0°C)

Specifications

Diesel-engines

Control System PCC2100
Available Voltages (60 Hz) - 219/380 - 254/440 - 277/480 - 347/600 - 2400/4160 - 7200/12470 - 7620/13200 - 7970/13800 (50 Hz) - 220/380 - 230/400 - 240/415 - 254/440 - 1905/3300 - 3640/6300 - 3810/6600 - 6350/11000
Configuration Cast iron, V 16 cylinder
Displacement 50 liter (3067in.3)
Fuel system Direct injection
Standard cooling system 104°F (40 °C) ambient radiator,
Fuel Type Diesel
Frequency (Hz) 50, 60
Output power (kW / kVA) 1000kVA - 1675kVA 1120kW - 1545kW
Lube oil filter type Spin-on paper element full flow and bypass lube oil filters.
Starting voltage 24 volt, negative ground
Stroke 158.8 mm (6.25 in.)
Bore 158.8 mm (6.25 in.)
Battery capacity 1800 amps at ambient temperature 32°F (0°C)
