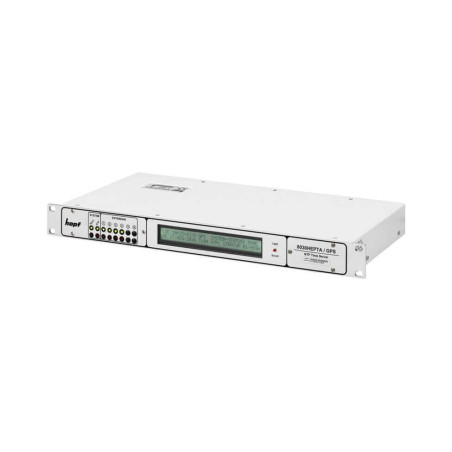

Time server 8030HEPTA

$0.00

The highly flexible time server 8030HEPTA is ideal for anyone looking for a space- and budget-saving solution with multiple configuration and plug-in options. The server could be equipped in the factory with any required protocol and interface, on the customer's request. Time server 8030 Hepta has 1 unit and it is rack mount. It supports 2 NTP Ethernet interfaces, IRIG-B protocol, DCF77, cyclic pulses, PRP and PTP, etc. Multiple power sources and various hardware interfaces in this time server have turned it into a competitive, stable, durable and reliable product.

Quantity

Configurator



Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next







next







next


Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt
Relay outputs Board
Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next







next











next


Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

finish

components list


IRIG-B expansion board
Not selected
DCF77 function
Not selected
Protocol function
Not selected
In-out function
Not selected
Crystal function
Not selected
GPS-GNSS function
Not selected
Power supply function
Not selected
Must-have accessories
Not selected
Discount: $
Product with this customization

$0.00

x
You must fill all the customization options before to make the order

The highly-flexible time server 8030HEPTA

The network time server 8030HEPTA/GPS is ideal for everyone searching for a space-saving and budget-friendly solution with numerous configuration and extension options.
Assemble your 8030HEPTA/GPS based on your individual requirements:
One integrated time server module per default with:
2 ethernet interfaces 10/100/1000 Mbit/s autosensing
Network Time Protocol version 4 (RFC5905)
Choose to equip free slots with additional output modules (available in various electrical signal output versions as well as modules for fiber optic output):
up to 4 additional isolated and mutually independent network time server modules 8030NTS/M
IRIG-B (modulated / unmodulated)
DCF77 (modulated / unmodulated)
Cyclic Pulses (PPS, PPM, etc.)
Serial time datagram

Activate optionally available functions per time server module:

Alarming

SNMPv2c / SNMPv3 (MIB II, hopf Private Enterprise MIB, SNMP traps)

E-Mail notification

SYSLOG

Routing for configuring static routes based on special network configuration requirements

VLAN support according to IEEE 802.1Q

Port aggregation (NIC Bonding/Teaming) with support of IEEE 802.3ad trunks

Parallel Redundancy Protocol (PRP) according to IEC 62439-3

Precision Time Protocol (PTP) according to IEEE 1588-2008

IEEE Standard Profile for Use of IEEE 1588 Precision Time Protocol in Power System Applications (Power Profile) according to IEEE Std C37.238-2011

SINEC H1 time datagram

Choose your required power supply:

100 - 240V AC - (power supply in case of standard delivery)

110 - 250V DC - (optionally available)

24V DC (18 - 36V DC) - (optionally available)

48V DC (36 - 76V DC) - (optionally available)

Time server
100 Items

Data sheet content

Time server

Type of time server
GPS , GPS , Galileo , GLONASS and BeiDou (GNSS)
Power supplies
24VDC (18 – 36VDC) , 48VDC (36 – 76VDC) , 110VDC (60 – 160VDC) , 85 – 264VAC (50Hz / 60Hz) , 125 – 250VDC
power supplies feature
single power supply , DC voltage redundant power inputs
Extension slots
four extension slots
Time Server Protocol
(NTP / SNTP) , PTP , IRIG-B , DCF77 , PPS , PPM , PPH , Serial time datagram , fiber-optic signal output , RTP , NTP / SNTP , SIMATIC NET SINEC H1 , IEEE 1588™ , PTP , IEC 61850-9-3:2016 , IEEE Std C37.238™-2017 , IRIG-B , DCF77 (demodulated / modulated) , PPS , PPM , PPH , Serial time datagram , IEC-103 , ABB Melody , Trimble TSIP , SAT1703 / SICAM RTU , fiber-optic signal output
oscillator
OCXO , TCXO
Installation Method
1U fully modular subrack for 19-inch rack mounting
components type
Normal - without hot-plug
Master Clock
NO

Specifications

Time server

Type of time server GPS, GPS, Galileo, GLONASS and BeiDou (GNSS)
Power supplies 24VDC (18 – 36VDC), 48VDC (36 – 76VDC), 110VDC (60 – 160VDC), 85 – 264VAC (50Hz / 60Hz), 125 – 250VDC
power supplies feature single power supply, DC voltage redundant power inputs
Extension slots four extension slots
Time Server Protocol (NTP / SNTP), PTP, IRIG-B, DCF77, PPS, PPM, PPH, Serial time datagram, fiber-optic signal output, RTP, NTP / SNTP, SIMATIC NET SINEC H1, IEEE 1588™, PTP, IEC 61850-9-3:2016 , IEEE Std C37.238™-2017 , IRIG-B , DCF77 (demodulated / modulated), PPS, PPM, PPH , Serial time datagram, IEC-103, ABB Melody , Trimble TSIP, SAT1703 / SICAM RTU, fiber-optic signal output
oscillator OCXO, TCXO
Installation Method 1U fully modular subrack for 19-inch rack mounting
components type Normal - without hot-plug
Master Clock NO
