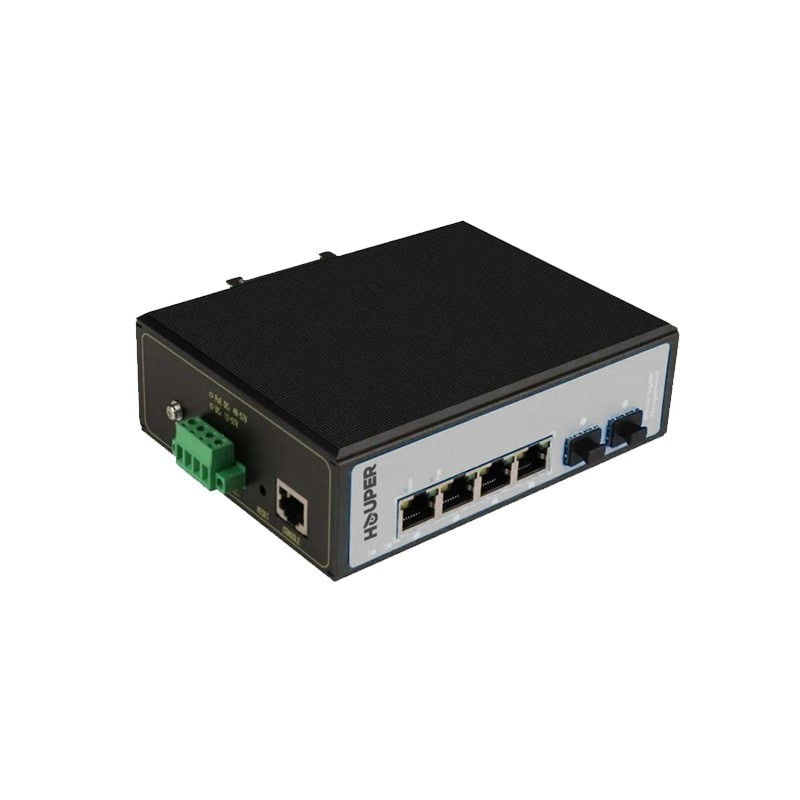

HOP3412S136-2TP industrial POE switch with 4GE , 2GE SFP fiber ports

It is suitable for intelligent transportation, rail transportation, electric power industry, metallurgy and green energy construction and so on. A reliable communication networks.The managed model supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms). When a one-way network fails, communication can be quickly resumed to ensure uninterrupted communication of important applications. HOP3412S136-2TP industrial series products fully comply with industrial product design and materials. The shell is made of aluminum alloy to enhance heat  dissipation performance and IP40 protection level to ensure stable operation of equipment under harsh environment. You can configure PoE power management, port traffic control, VLAN division, STP, and RSTP for multiple application services based on the Web, CLI, and SNMP network management

Model : HOP3412S136-2TP

Interface

4*10/100/1000Base-T PoE ports (Data/Power)

2*100/1000Base-X uplink SFP fiber slot ports (Data)

1 * RS232 console port (115200, N,8,1)

2 sets of V+, V- redundant DC power interface (4 Pin Phoenix terminal)

Network Protocol

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-T/TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3u 100BASE-FX

IEEE802.3x.

PoE Standard

IEEE802.3af/at

SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module

Forwarding Mode

Store and Forward

Switching Capacity

12Gbps (Non-blocking)

Forwarding Rate @64byte: 8.93Mpps

MAC: 8K

Buffer Memory: 4M

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Optical Cable

 Multimode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM

Power Supply

Pin 1/2/4/5 (+), 3/6/7/8 (-)

Operating Voltage DC power supply, DC48-57V ultra-wide supply voltage, 4Pin Phoenix

terminal connection, support anti-reverse protection

Max / Average Power Per Port 95W

Total PWR / Input Voltage 250W (48-57VDC)

Power Consumption Standby:<8W; Full load:<250W

LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/

(Orange),5-6(Link/Act)/ (Green); POE indicator: PoE (Green)

Power Supply No, see accessories information table to buy and use

Operation TEMP / Humidity -40~+85°C;5%~95% RH Non condensing

Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing

Dimension 145*112*48mm

Net /Gross Weight <0.7kg /<1.5k

Power Supply Pin

Default 1/2(+), 3/6(-)

Operating Voltage

DC power supply, DC48-57V ultra-wide supply voltage, 5P Phoenix terminal connection, support anti-reverse protection

Max/ Average Power Per Port

30W/15.4W

Total PWR / Input Voltage

60W (48-57VDC)

Power Consumption

Standby:<6W; Full load:<60W     Standby:<7W; Full load:<120W

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Orange),5-6(Link/Act)/ (Green); POE indicator: PoE (Green)

Power Supply

No, see accessories information table to buy and use

Operation TEMP / Humidity

-40~+80°C;5%~95% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Dimension

145*112*48mm

Net /Gross Weight

<0.7kg /<1.2kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class B

IEC61000-6-2(Common Industrial Standard)

PoE Management

Support total power limit configuration for POE power supply

Support PoE output power allocation per port, close / start af/at

Support PoE output priority configuration per port

Support PoE work status per port display

Support power delay start

Support PoE work and time scheduling
