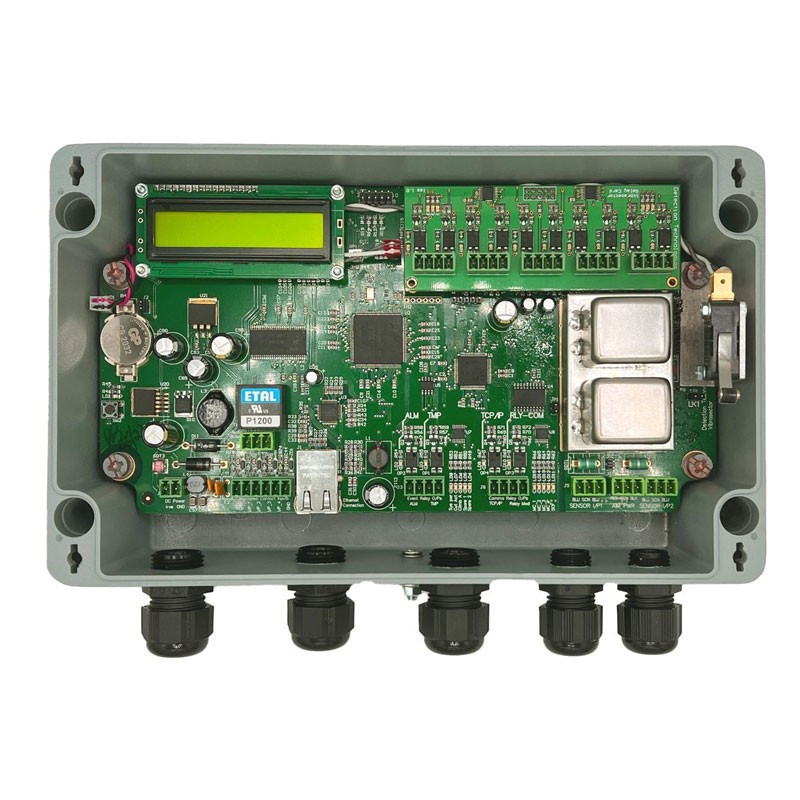

VibraSector analyser up to 1.2km combined cable length and limited to 98 zones

Each VibraSector® analyser offers the ability to monitor up to 1000 metres of VibraTek® sensor cable which may be segmented into 100 sub-zones so that the location of intruder-related activity detected by the sensor cable may be identified to an accuracy of 1%. Each VibraSector® sub-zone can be allocated it’s own set of detection parameters so that variations in fence quality and type may be accommodated within a single system without incurring false alarms or detection ‘blind spots’ that would be inevitable

without such flexibility. Unlike other systems claiming to offer intrusion point location capability, VibraSector® provides high quality audio verification in which audio signatures resulting from hostile events are stored in digital format so that they may be recalled and replayed from any remote location. This feature is a valuable tool that may be used by security staff to confirm received alarms as being the result of genuine intrusions.

VibraSector® is fully compatible with industry standard IP networks to ensure that integration and communication with a security management system is easily accomplished. All system configuration commands, alarm information and digital audio are accessible through the IP connection of each VibraSector® analyser.

Integration with legacy control equipment is achieved using the VibraSector® relay module in which a relay contact can beallocated to every detection sub-zone so that a simple, dry contact relay interface may be easily implemented.The unique properties of the VibraTek® sensor cable allows mixing and matching of ‘live’ sensor cable with ‘dead’ interconnecting cable so that non-sensitive areas may be inserted as required into the site perimeter while still maintaining the capability to protect up to 1000 metres of fence with ‘live’ sensor cable.
