All-In-One POE+ computer with Windows

$1,200.00

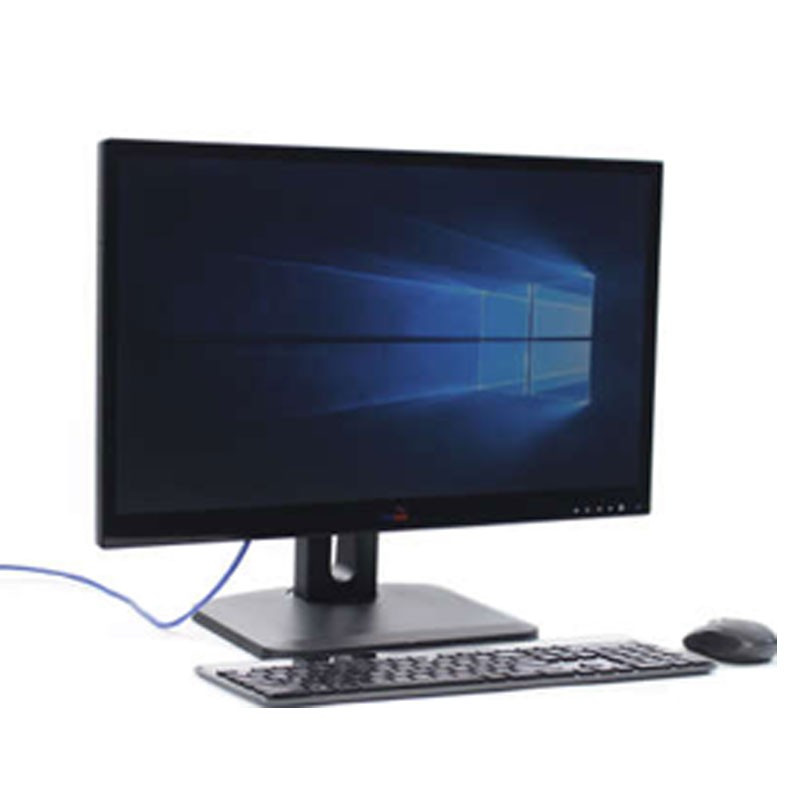

َall-in-one Thinlabs computer, which can be installed on a desk, wall, or inside a device, is an ideal solution for various applications in both office and industrial environments. This product is available in sizes of 19, 22, and 24 inches, with both touch and non-touch options. The processing power of this computer is ensured by a powerful Ryzen series processor and 8GB of DDR4 RAM. Additionally, this system comes standard with a 128GB m.2 2280 SSD, with the possibility of upgrading the memory to 64GB of RAM and 1TB of SSD storage.

Quantity

SOFTWARE

  • Choice of OS:
  • MS Windows 10 IoT Enterprise LTSC
  • MS Windows Professional 10 (64 bit)
  • Thinlabs Embedded Linux with Write Filter Protection
  • All versions support CITRIX HDX & ZEN Desktop / Applications
  • Server, VMWARE Horizon View w/ PCoIP, RDP, Microsoft
  • Remote FX & 2X

HARDWARE

  • Ryzen Processor – choice of:
  • R1305G – 2 Core / 4 Threads
  • V1605B – 4 Core /  8 Threads
  • V2516   – 6 Core / 12 Threads
  • V2718   – 8 Core / 16 Threads
  • GB DDR4 2400 MHz Memory (expandable to 64 GB)
  • Flash Medium 128 GB M.2 2280 SSD
  • (expandable to 1024 GB)
  • auto sensing Megabit Ethernet
  • (optional Internal Bluetooth 4.0 / Wi-Fi a/b/g/n/ac
  • Dual Band Combo)
  • Desktop Stand or 75 / 100 mm VESA Mount

POWER

  • Voltage:
  • 100~240V AC, external power supply
  • Frequency:  50~ 60 Hz
  • Output:
  • 12V, 5A
  • (optional POE 802.AT+ / 802.3BT
  • or 245/490Wh Lithium Ion Battery solutions available)

EXTERNAL PORTS

  • Gigabit Ethernet - RJ45 port (w/ LED)
  • USB Ports - 2 USB 3.0 & 4 USB 2.0 ports
  • HDMI or DP ports
  • DC Power in
  • Microphone / Front Speaker ports

AUDIO / VIDEO / TOUCH SCREEN

  • Up to 1366 x   768, Auto-calibrated PCT Touch Screen available
  • Up to 1920 x 1080, Auto-calibrated PCT Touch Screen available
  • Up to 1920 x 1080, Auto-calibrated PCT Touch Screen available
  • Integrated Graphics Engine
  • Realtek Audio Codec

REGULATORY/ENVIRONMENTAL COMPLIANCE

  • CE / FCC B / EN60950 / RoHS / WHQL
  • Operating: 41º F to   95º F
  • Storage:   -10º F to 140º F
  • max, non-condensing convection cooling - Ultra-quiet fan-less design
  • Energy saving support

ADDITIONAL OPTIONS

  • Conformal Coating (for semi-industrial environments)
  • Privacy Filter (for HIPAA compliance in healthcare organizations)
  • Bar Code Reader, Magnetic Stripe Reader or Biometric Finger Print Reader
  • Webcam & Microphone
