HOU-WM6004 Metal detector

In addition, the intelligent statistics feature of the device can detect the metals with high accuracy by analyzing statistical data and information provided by metal detection systems. This technique provides accurate and reliable information about metals in the environment through the use of algorithms and artificial intelligence.

Product process: Imported synthetic material, after the special craft a suppression and become, moistureproof, fire prevention.

Infrared technique: Benefit from the infrared sensor, the ability of mechanical interference was improved.

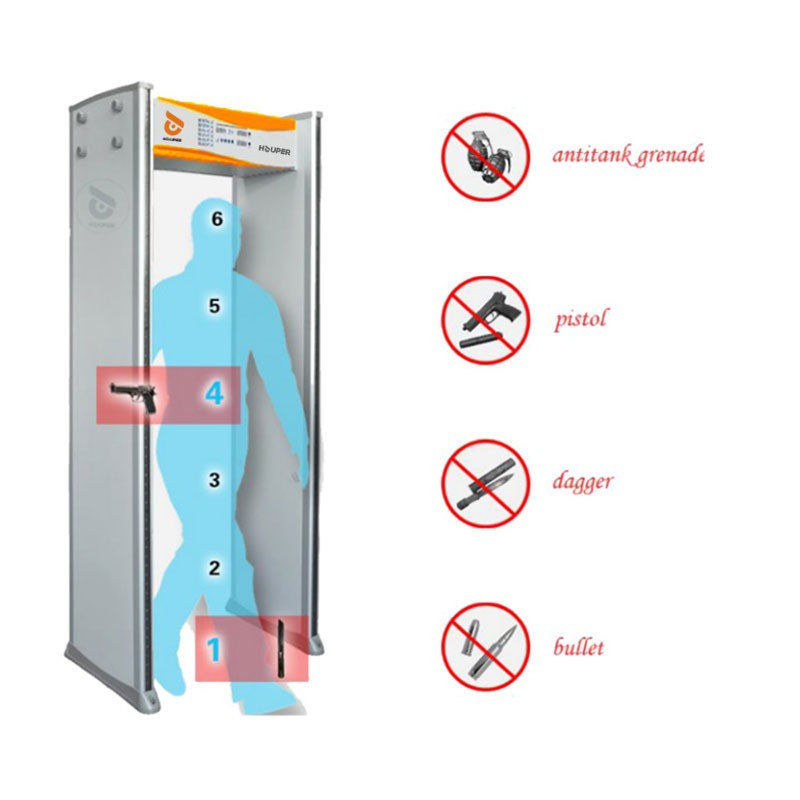

Six detecting zones: All of the detecting area was divided into six equal pieces which inter laps, so different zones can alarm and light at the same time.

Intuitive display: The LED alarming light for each zone was built in both sides of the bilateral pillar.

Alarming volume: It can be set 1～8 degree, you could press corresponding number.

Alarming tone: There`s 8 tomes to choose, you could press corresponding number.

Regional sensitivity is adjustable: The sensitivity can be adjust between 0-99 , according to user's actual demand to rule out the body carries jewelry, belt buckle, metal zipper, etc.

Maximum sensitivity can detect the paper clip size of metal objects.

The total sensitivity adjustment: There is 4096 sensitivity level, of which 4096 is the most sensitive, 0 level for the minimum sensitivity.

Statistics: Intelligent statistics the number of personnel through and the number of alarm.

Easy to operate: Operation panel for thin film panel, high brightness display panel can be directly display alarm area, precise instructions was probing where things are, and have sound and light alarm at the same time.

Intercommunication:

It can be use for more than one grid while the distance is only 35 cm

Password protection:

The XLD-A2 can be set password for authorization management, which allows only authorized personnel to operate it. This will effectively prevent others to change parameters.

Harmless to human:

XLD-A2 is safe to apparatus of cardiac pacing in the human body, pregnant women, magnetic floppy disks, tapes, video tapes, etc.

Easy to install:

XLD series metal detector door is combination design, convenient installation and removal, and the manual is simple to understand

Features

• Economics style.
• Data metal detector door.
• Infrared technique.
• 4 independent zones
• Easy to install and operate.

Specifications:

Power: 110V /220V

Consumption: less than 30VA

Transmitting frequency: 6.9~11 Khz,8 frequency for your choice

Weight: 70KG

Working environment: -20℃－+45℃

Tunnel size: 2010mm(l)*700mm(w)*510mm(d)

Overall dimension: 2200mm(l)*820mm(w)*510mm(d)

Standards: GB-15210-2003《Walk through metal detector》
