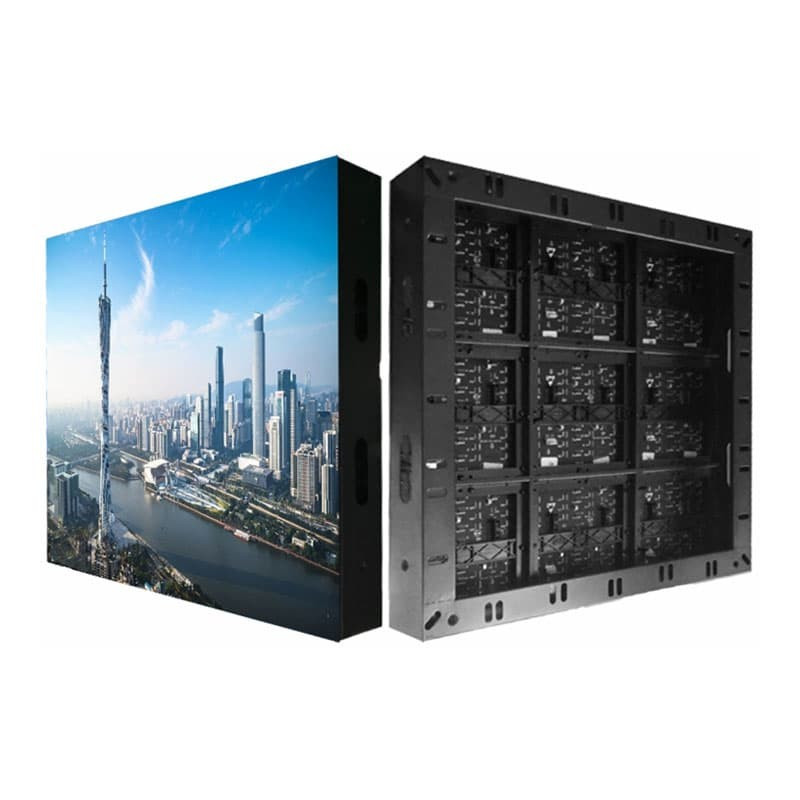

ITC TV-OH Outdoor LED Video Wall
$1,200.00
Outdoor LED video wall, the new favorite of the future outdoor advertising media, is widely used in finance, taxation, industry and commerce, post and telecommunications, sports, advertising, factories and mining enterprises, transportation, education, stations, wharves, airports, shopping malls, hospitals, hotels, banks, stock markets, construction markets, auction houses, industrial enterprises and other public places. It supports media display, information release, traffic guidance, creative display, etc.
Series and models
YX series
BX series
JX series
Feature:
- High brightness: the general brightness of 5000cd, and the maximum brightness of more than 10000cd. It is clearly visible even under strong light, and the display effect is good.
- As an advertising media, it supports various advertising forms, which is far more ornamental, flexible and attractive than traditional advertising.
- The advertising can be updated quickly. The administrator can change the advertising at any time accordingly, which is simple to operate.
- With good waterproof performance, strong anti-ultraviolet capability and protection level of IP65 or above, it can work normally in bad weather.
- LED lamp beads, the luminescent device, are made from non-toxic materials. Unlike fluorescent lamps with polluted mercury, LED is environment-friendly and recyclable.
- The video wall can not only save energy and protect environment, but also work normally in any bad outdoor environments and all-weather conditions. It is anti-corrosion, waterproof, moisture-proof, lightning-proof, shock-proof and so on.
- Low power consumption. Generally speaking, the working voltage of LED is 2-4.2V. The working current is 0.02-0.03A. Namely, it consumes no more than 0.1W of power.
- Long lifespan. Under proper current and voltage, the general lifespan of LED is up to 100,000 hours. While taking the environmental factors into account, the lifespan of the video wall can still reach around 60,000 hours.
- Seamless splicing and high refresh rate. Compared with splicing LCD, outdoor LED video wall achieves seamless splicing and more beautiful display effects; it enables a higher refresh rate and more astonishing visual effects as a whole!
Data sheet content
videowall
- 6. Best viewing distance
- ≥7.5m , ≥9m , ≥12m , ≥15m , ≥18m , ≥24m , ≥20m
- 6. Brightness
- ≥5000CD/m² (adjustable) , ≥5500CD/m² (adjustable)
- 6. Contrast
- ≥10000:1 , ≥8000:1
- 6. Control mode
- Synchronous control
- 6. Drive device
- Constant current drive
- 6. Frame rate
- ≥60Hz
- 6. Graphics card
- DVI/HDMI/DP
- 6. Grayscale
- 281 trillion
- 6. Lifespan
- ≥100000H
- 6. MTBF
- ≥20000H
- 6. Operating temperature
- -20℃~+50℃
- 6. Operating voltage
- DC +4.2V~+5V
- 6. Operating voltage(AC)
- 220V±10%/50Hz or 110V±10%/60Hz
- 6. Refresh rate
- ≥3840Hz
- 6. Scanning method
- 16S , 10S , 8S , 6S , 5S
- 6. Storage temperature
- -35℃~+85℃
- 6.Failed rate
- ≤1/100000 and no continuous failed pixels
16 other products in the same category
ITC TV-PX Indoor LED Video Wall
$2,800.00
ITC TV-PD Indoor LED Video Wall
$1,850.00
ITC TV-COB Indoor LED Video Wall
$4,500.00
MX YEROO Video wall
$1,300.00
ITC TV-PM Indoor LED Video Wall
$4,200.00
ITC TV-OM Outdoor LED Video Wall
$1,400.00
ITC TV-PG Indoor LED Video Wall
$5,900.00
Specifications
videowall | |
---|---|
6. Best viewing distance | ≥7.5m, ≥9m, ≥12m, ≥15m, ≥18m, ≥24m, ≥20m |
6. Brightness | ≥5000CD/m² (adjustable), ≥5500CD/m² (adjustable) |
6. Contrast | ≥10000:1, ≥8000:1 |
6. Control mode | Synchronous control |
6. Drive device | Constant current drive |
6. Frame rate | ≥60Hz |
6. Graphics card | DVI/HDMI/DP |
6. Grayscale | 281 trillion |
6. Lifespan | ≥100000H |
6. MTBF | ≥20000H |
6. Operating temperature | -20℃~+50℃ |
6. Operating voltage | DC +4.2V~+5V |
6. Operating voltage(AC) | 220V±10%/50Hz or 110V±10%/60Hz |
6. Refresh rate | ≥3840Hz |
6. Scanning method | 16S, 10S, 8S, 6S, 5S |
6. Storage temperature | -35℃~+85℃ |
6.Failed rate | ≤1/100000 and no continuous failed pixels |
