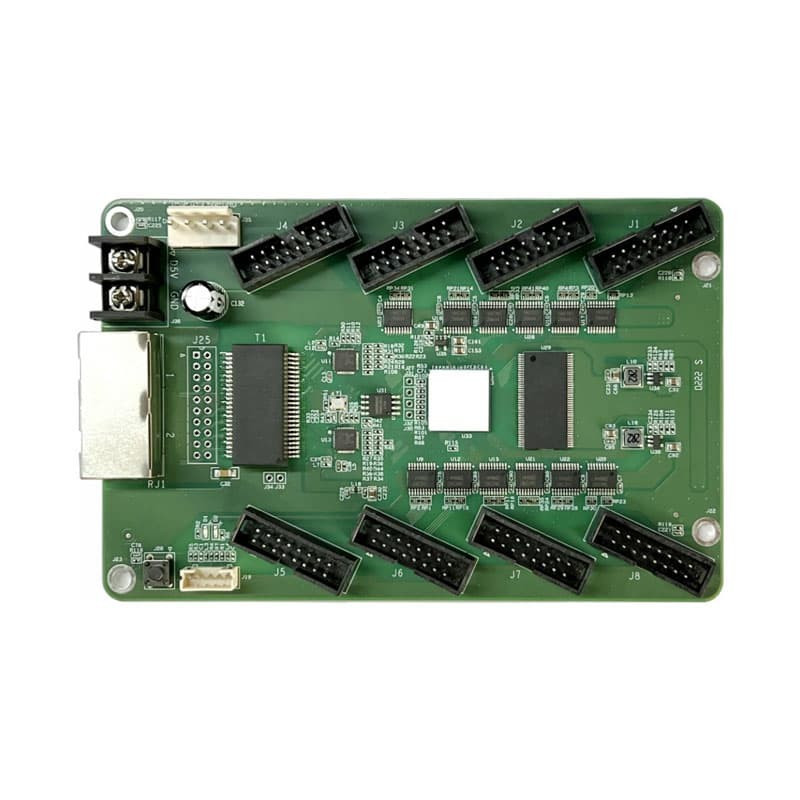

ITC TV-81R75B Video Wall Receiving Card
  • ITC TV-81R75B Video Wall Receiving Card

ITC TV-81R75B Video Wall Receiving Card

$35.00

The TV-81R75B video wall receiving card is a hardware device from the ITC brand, used for receiving video and image signals in video walls. This card is utilized in various image display systems, such as video walls and LED display screens. The video wall card, through various inputs and communication ports, allows connection to different video sources.

The TV-81R75B video wall receiving card has the following technical specifications:

  • Communication distance: More than five network lines ≤140 meters; six types of network cables ≤170 meters; optical fiber: single-mode transmitter ≤20 kilometers, multi-mode transmitter ≤550 meters. (With a repeater, unlimited extension is possible)
  • Compatible transmission equipment: Gigabit switch, Gigabit optical transmitter, Gigabit optical switch
  • Human body anti-static ability: 2 KV
  • Dimensions (mm): 143 x 93
  • Operating voltage: from 3.3V to 6V DC
  • Power consumption: 3 W
  • Weight: 100 g
Quantity

Specifications:

Features:

  • Integrated HUB75, no need for adapter plate, more convenient and lower cost.
  • Reduce connectors, reduce fault points and lower failure rate.
  • Support conventional chips to achieve high refresh, high gray scale and high brightness.
  • A new grayscale engine, with better performance in low grayscale.
  • More perfect details, can eliminate the unit plate design caused by a row of dark, low gray red, ghost and other details.
  • Support 14BIT precision point by point correction and brightness integration point by point correction.
  • Support all conventional chips, PWM chips and lighting chips.
  • Support static screen, between 1/2 to 1/32 scan any scan type.
  • Support arbitrary point, support data migration, can easily achieve a variety of different screen, spherical screen, creative display screen.
  • Single card supports 16 sets of RGB signal output.
  • Super large carrying area is supported.
  • Advanced design, high quality components, automatic high and low temperature aging test, zero failure delivery.
  • Support DC 3.3V ~ 6V ultra-wide working voltage to effectively reduce the impact of voltage fluctuation.
