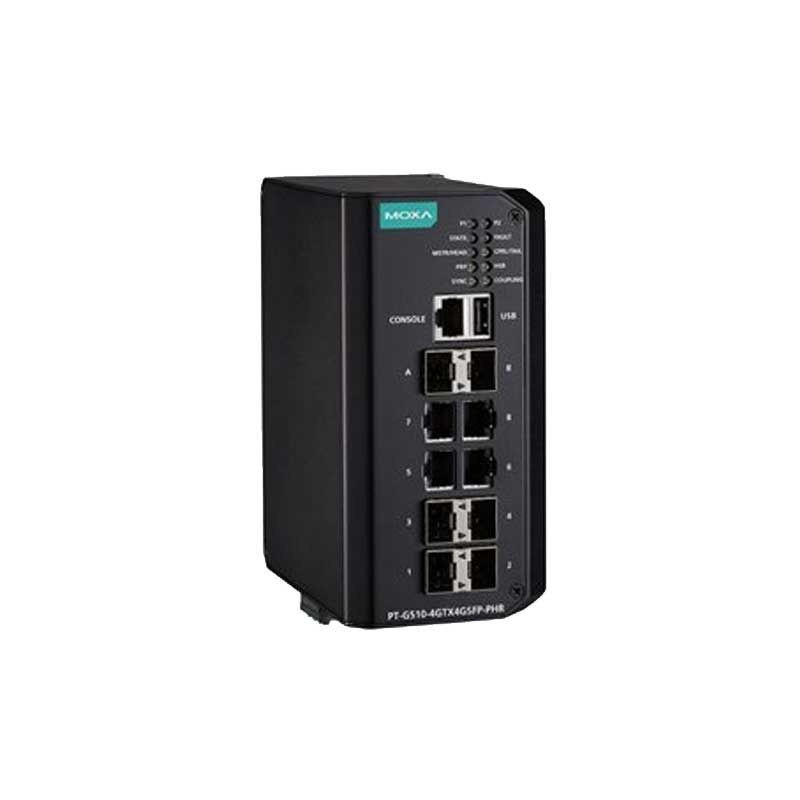

PT-G510 10-port Layer 2 Gigabit PRP/HSR managed switches
The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications.
The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSR ports combined with support for a complete redundancy protocol suite including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability. The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE packets and features a built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA systems.
switch
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 10
- Port speed
- 10/100/1000BASE-T , 10-100-1000 , 10/100/1000BASE-T TP
- Uplink port
- 2 , 4
- Uplink Port speed
- 10/100/1000BASE-T , 10/100/1000BASE-T TP , 1G
- type of ports
- copper RJ45 , SFP
- type of uplink ports
- copper RJ45 , SFP
- Power over Ethernet
- No
- Layer of switch
- Layer 2 , QoS
- Switch power consumption
- 9-56VDC
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 10 |
| Port speed | 10/100/1000BASE-T, 10-100-1000, 10/100/1000BASE-T TP |
| Uplink port | 2, 4 |
| Uplink Port speed | 10/100/1000BASE-T, 10/100/1000BASE-T TP, 1G |
| type of ports | copper RJ45, SFP |
| type of uplink ports | copper RJ45, SFP |
| Power over Ethernet | No |
| Layer of switch | Layer 2, QoS |
| Switch power consumption | 9-56VDC |
| Operation temperature | -40 / +75 C |
The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications.
