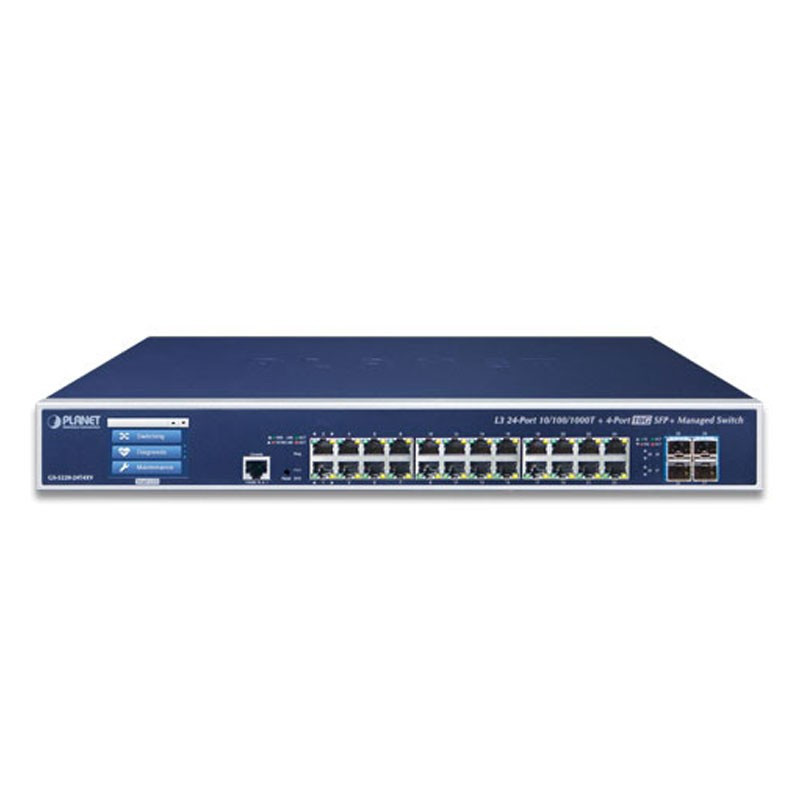

Planet GS-5220-24T4XV(R) Managed Switch with 24XGE and 4X10G
$595.40
PLANET GS-5220-24T4XV and GS-5220-24T4XVR Layer 3 Managed Gigabit Switches with LCD Touch Screen support both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provide 24 10/100/1000Mbps Gigabit Ethernet ports and 4 10Gigabit SFP+ uplink slots. The GS-5220-24T4XV series can handle extremely large amounts of data in a secure topology linking to a data center/service provider backbone or high capacity servers. They can work with a 10Gbps SFP+ server adapter to help SMBs build the 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service at an affordable price.
Cost-effective 10Gbps Uplink Capacity
10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the GS-5220 series support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way because the 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMBs.
-1.jpg)
-2.jpg)
-3.jpg)
-4.jpg)
-5.jpg)
IPv6 Routing and 10G Ethernet Switch Solutions for SMBs PLANET GS-5220-24T4XV and GS-5220-24T4XVR Layer 3 Managed Gigabit Switches with LCD Touch Screen support both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provide 24 10/100/1000Mbps Gigabit Ethernet ports and 4 10Gigabit SFP+ uplink slots. The GS-5220-24T4XV series can handle extremely large amounts of data in a secure topology linking to a data center/service provider backbone or high capacity servers. They can work with a 10Gbps SFP+ server adapter to help SMBs build the 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service at an affordable price.
switch
100 Items
Data sheet content
Switch-Router
- Type of switch
- Industrial , General , Military
- Number of ports
- 4 , 24
- Port speed
- 10G , 10/100/1000BASE-T
- Uplink port
- 4
- Uplink Port speed
- 10G
- type of ports
- copper RJ45
- type of uplink ports
- SFP-10G
- Power over Ethernet
- No
- Layer of switch
- Layer 2 , Layer 3 , VLAN , QoS
- IP version
- IPV4 , IPV6
- Switch Management
- RFC1213 SNMP , WEB base , SSHv1
- Switch power consumption
- 24-45W
- Operation temperature
- -10 / +70 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, General, Military |
| Number of ports | 4, 24 |
| Port speed | 10G, 10/100/1000BASE-T |
| Uplink port | 4 |
| Uplink Port speed | 10G |
| type of ports | copper RJ45 |
| type of uplink ports | SFP-10G |
| Power over Ethernet | No |
| Layer of switch | Layer 2, Layer 3, VLAN, QoS |
| IP version | IPV4, IPV6 |
| Switch Management | RFC1213 SNMP , WEB base, SSHv1 |
| Switch power consumption | 24-45W |
| Operation temperature | -10 / +70 C |
PLANET GS-5220-24T4XV and GS-5220-24T4XVR Layer 3 Managed Gigabit Switches with LCD Touch Screen support both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provide 24 10/100/1000Mbps Gigabit Ethernet ports and 4 10Gigabit SFP+ uplink slots. The GS-5220-24T4XV series can handle extremely large amounts of data in a secure topology linking to a data center/service provider backbone or high capacity servers. They can work with a 10Gbps SFP+ server adapter to help SMBs build the 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service at an affordable price.
